Dreamer Family

Battery

225AH Lithium

Suspension

Off-road

Solar

400W
Starting at

$119, 990

for the 20'6

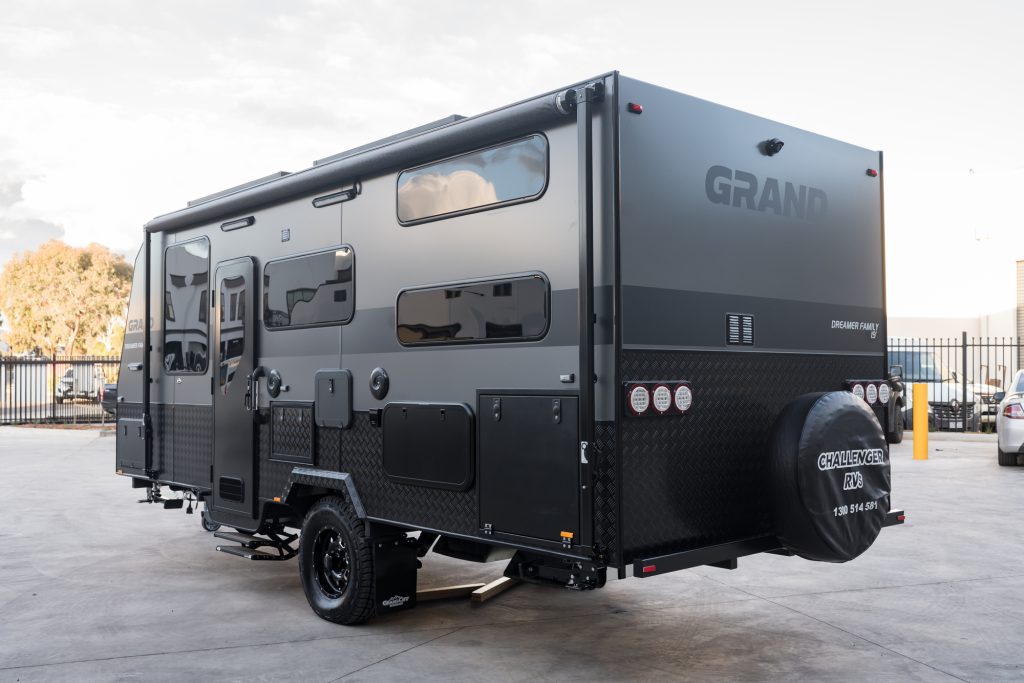

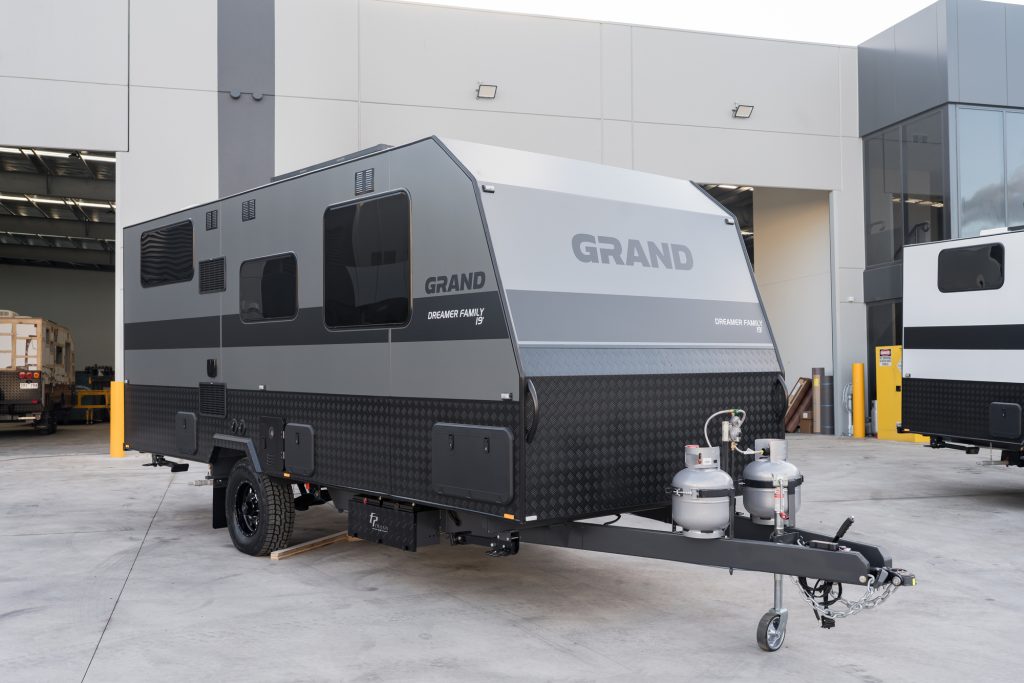

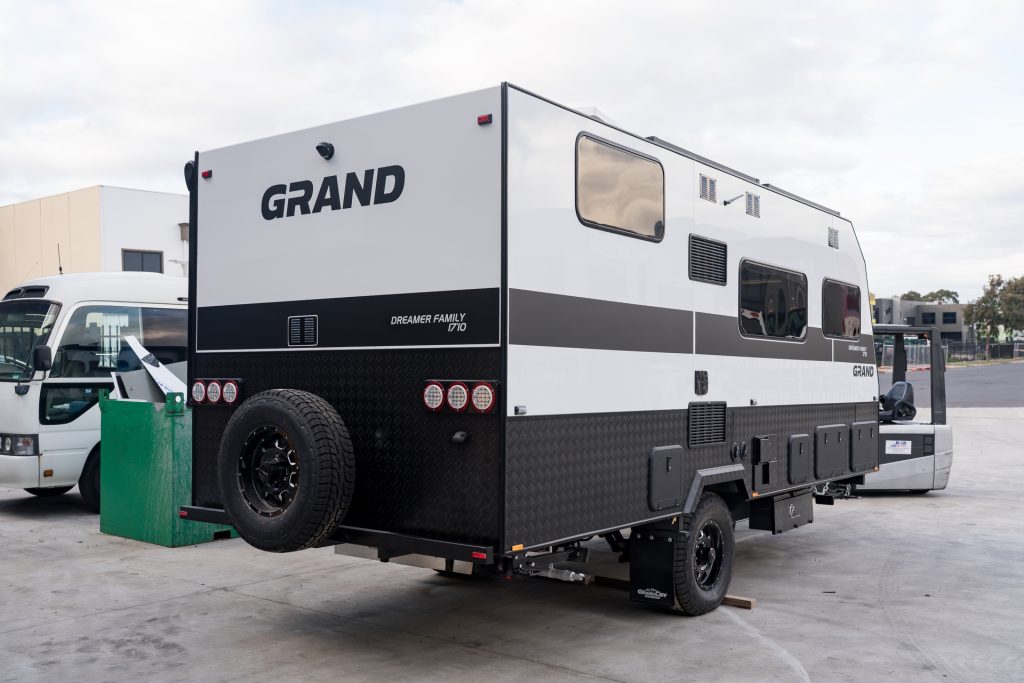

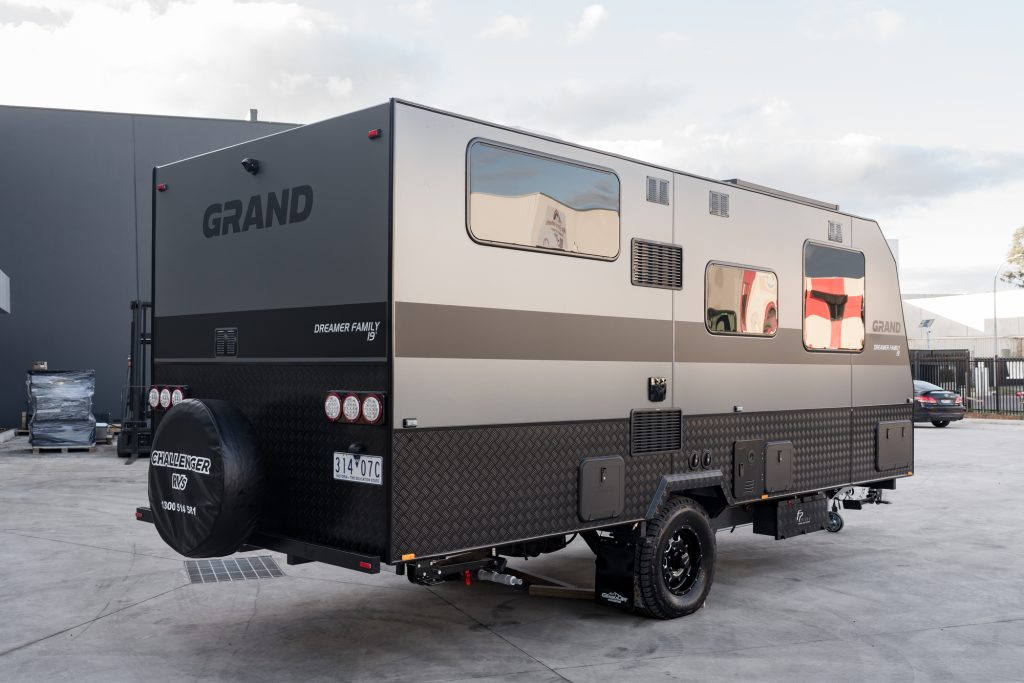

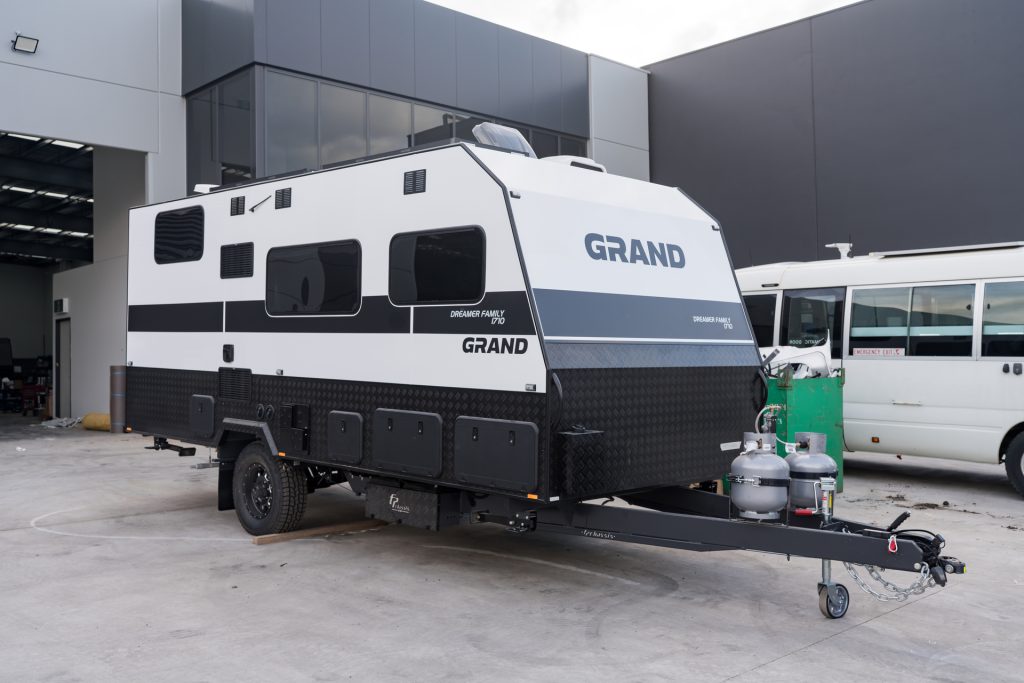

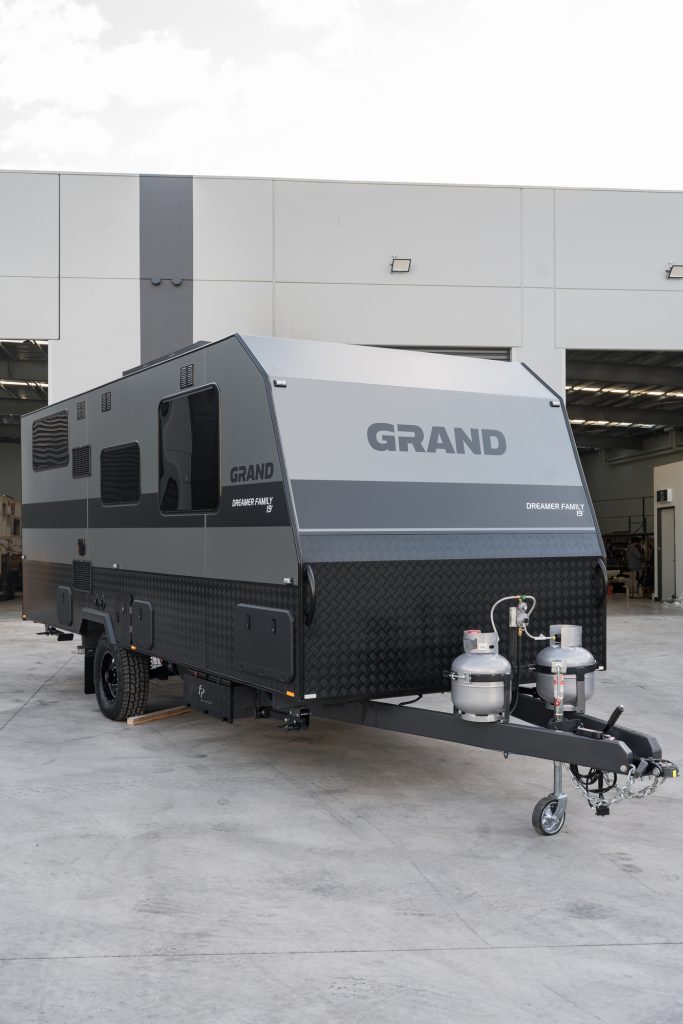

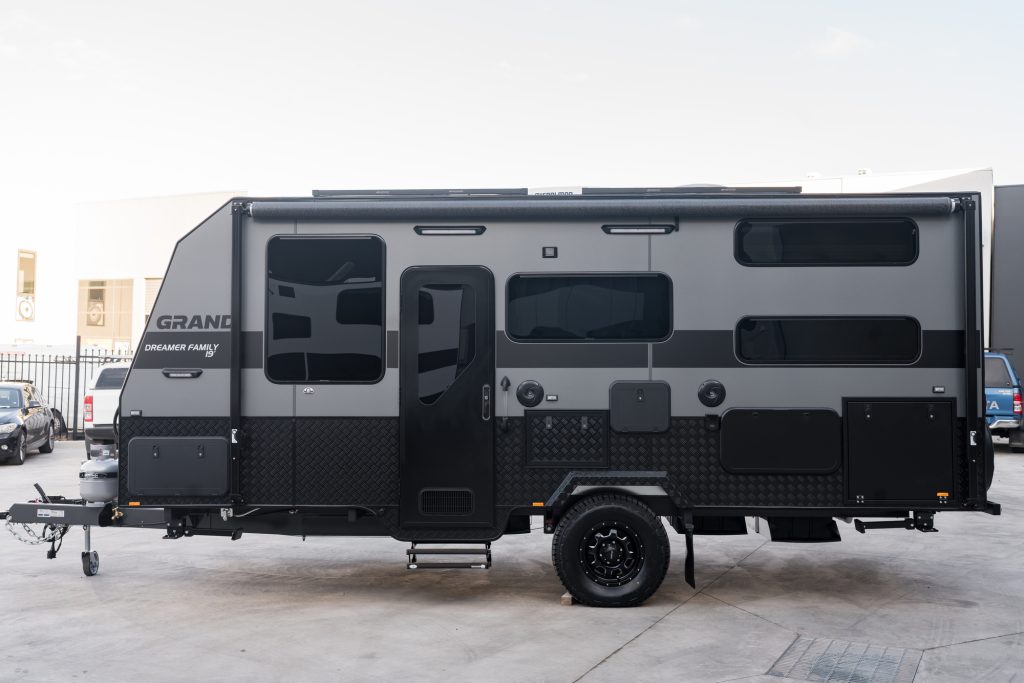

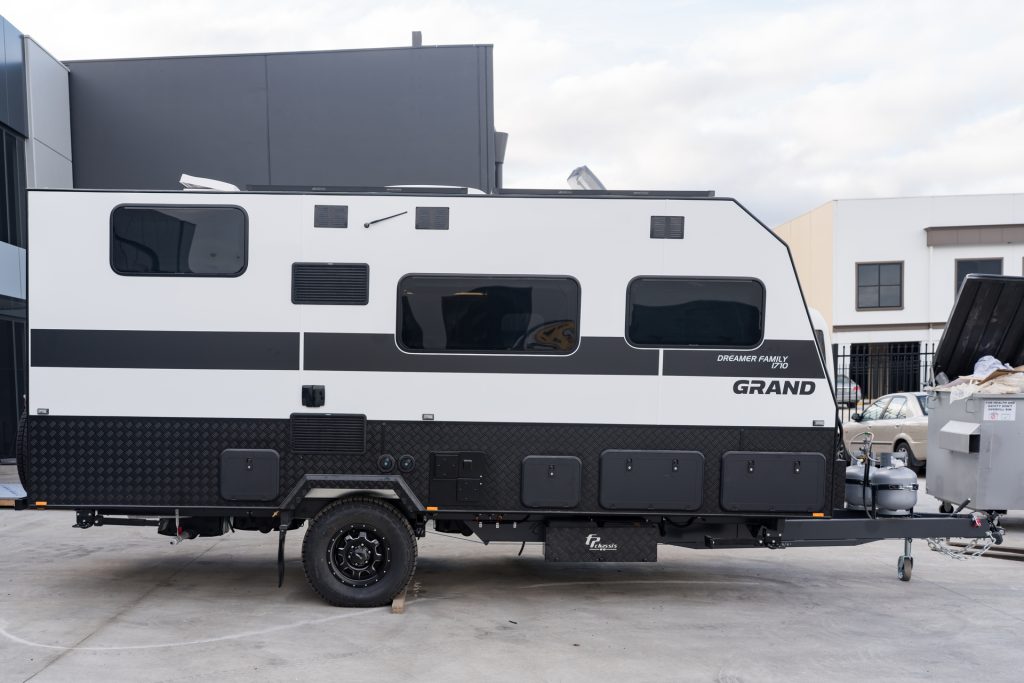

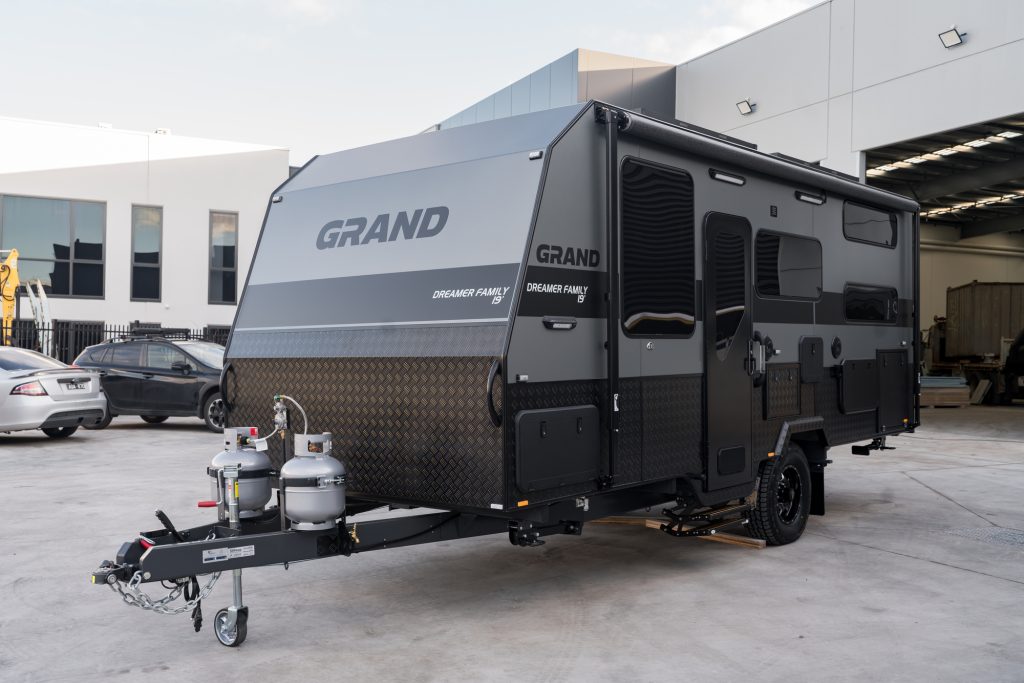

Introducing the Dreamer Family – our Australian built family caravan available in both single and dual axle. Designed for comfort, space and adventure, it’s built to take your family around Australia with ease and confidence.

Chassis

  • One Piece Honeycomb Composite Floor
  • Built by FP Chassis with Australian Made Steel
  • 6 inch Extended A-Frame
  • AL-KO Electronic Stability Control
  • TEKO Tuff Ride Coil Suspension
  • Cruisemaster DO35
  • Corner Drop Down Stabiliser Legs
  • Trail Safe Bluetooth Break-Away Safety System
  • 16 inch Wheels
  • All Terrain Tyres (265/75/R16)
  • 3 Arm Rear Bumper
  • Jackmate Trailer Jack with Wheel Brace
  • Fibreglass Composite Sandwich Construction
  • Large Tri-Lock Entry Door (Midge Proof with Compression Lock)
  • Illuminated Grab Handle
  • Double Glazed Flat Aluminium Windows with Flat Block Out Blinds & Flyscreen
  • Aussie Traveller Roll Out Awning
  • Fold Down Picnic Table
  • External Entertainment Box
  • Aluminium Double Pull Out Step

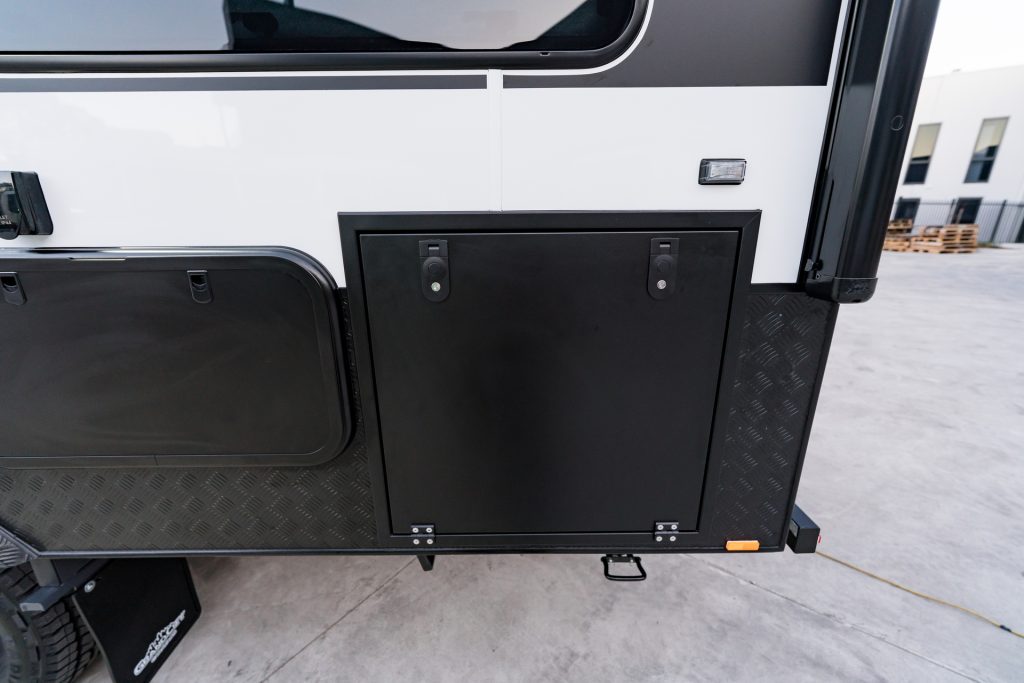

  • Tunnel Boot with Light

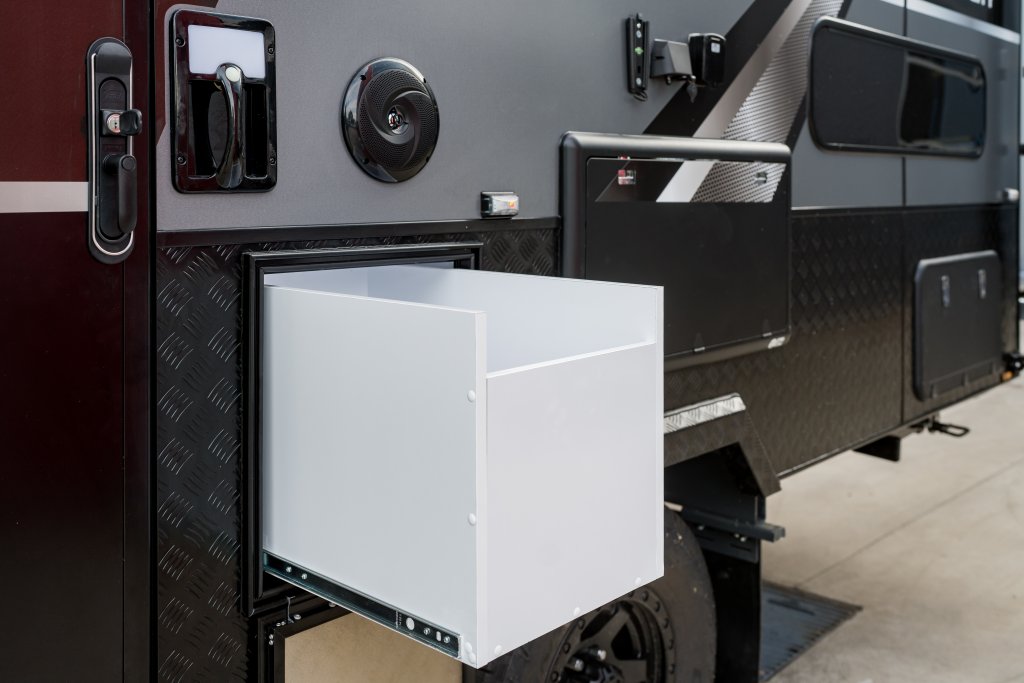

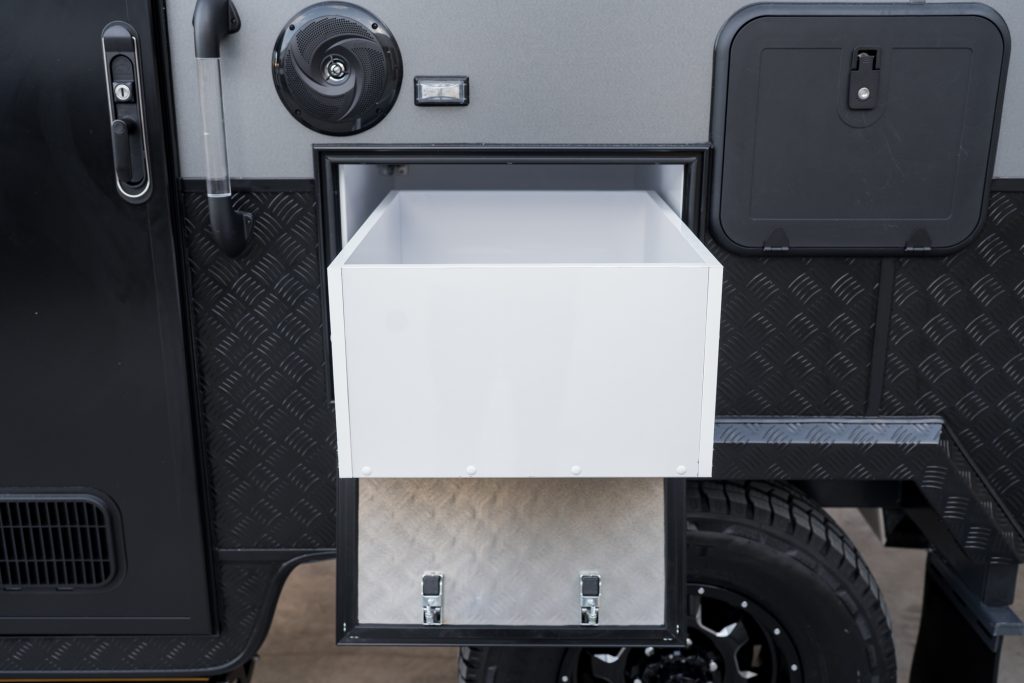

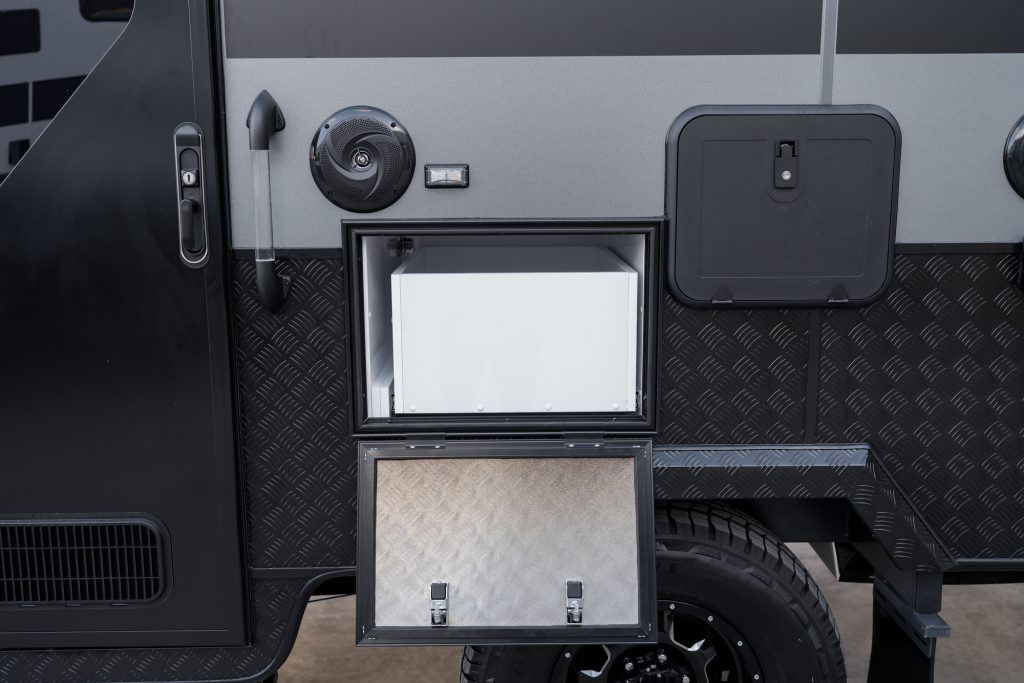

  • External Pantry with 2 Way Drawer*

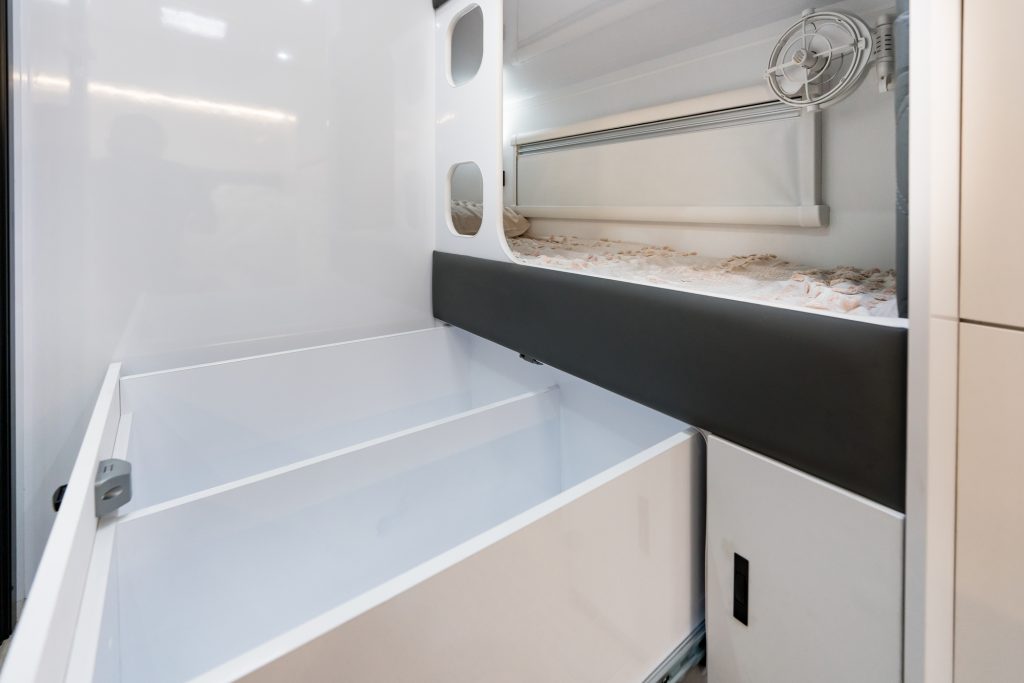

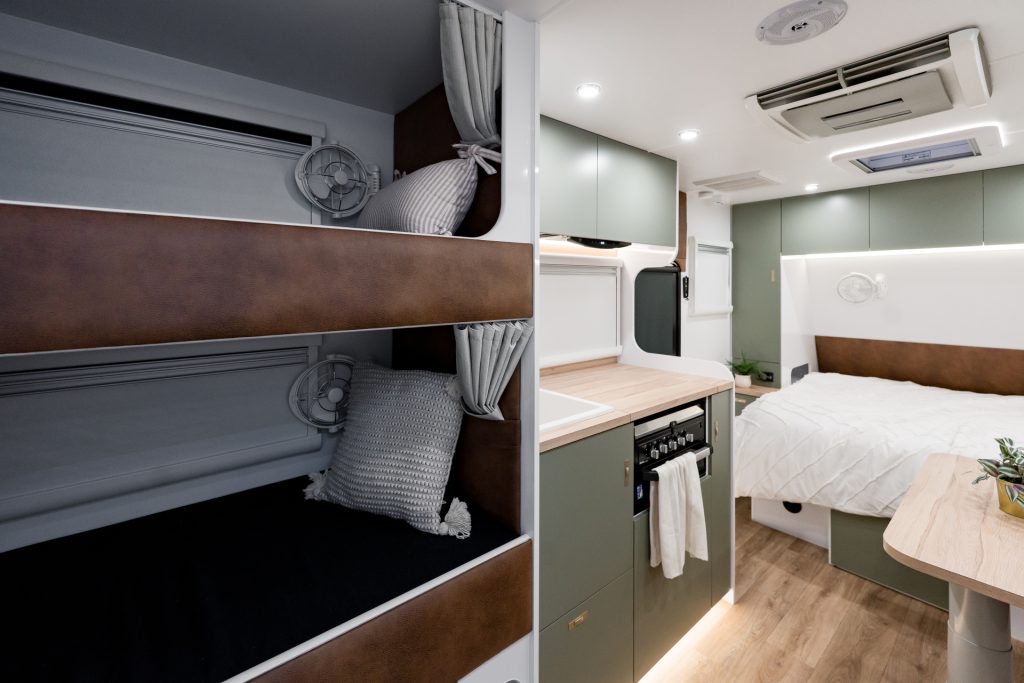

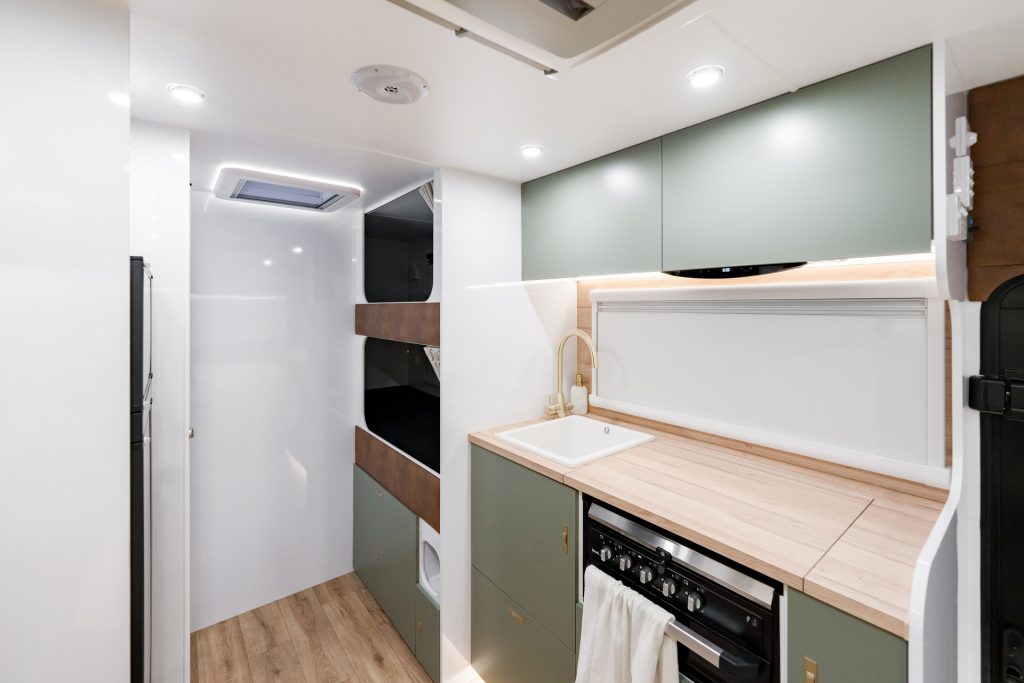

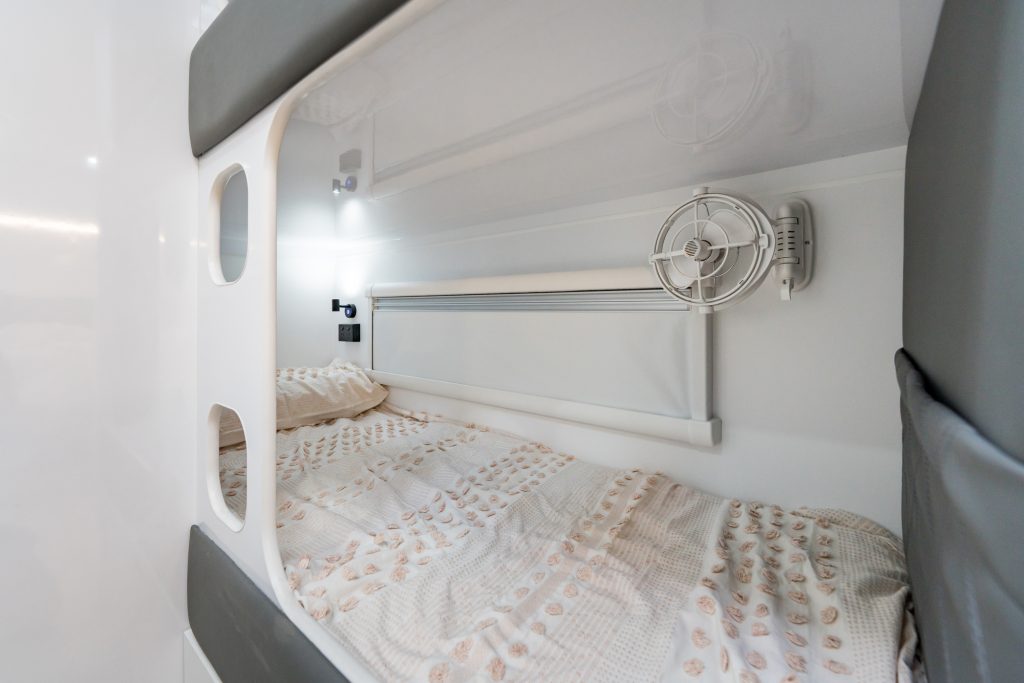

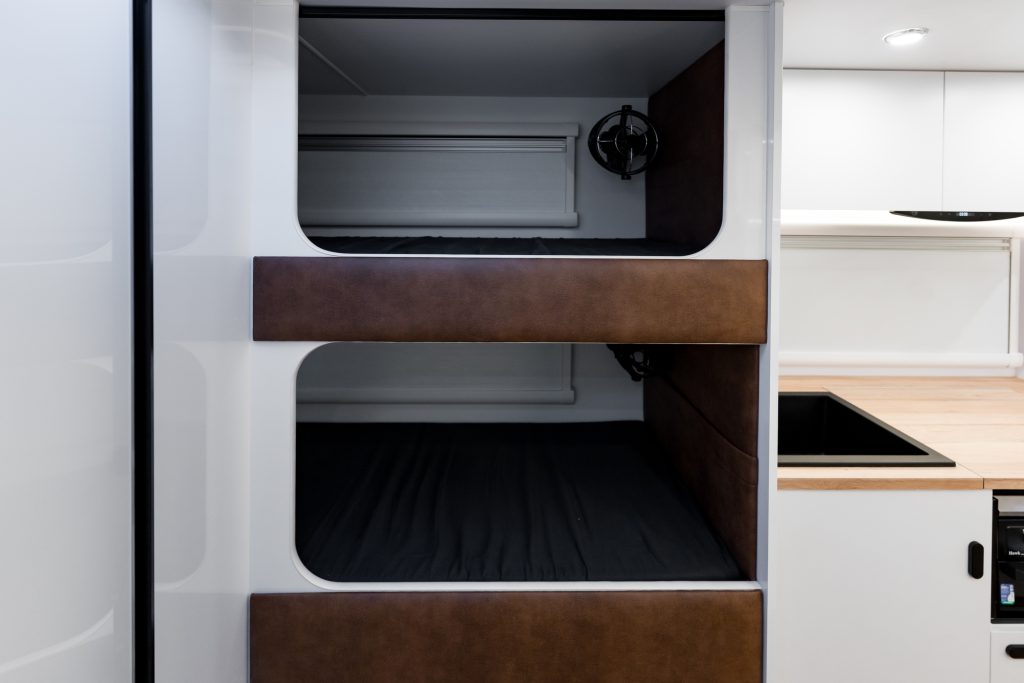

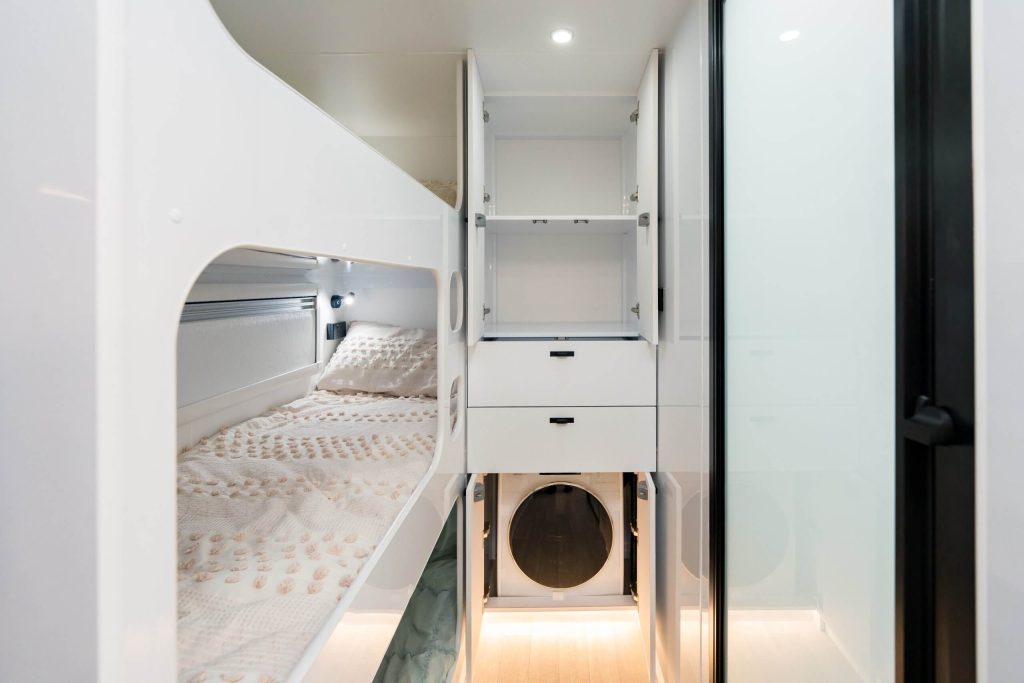

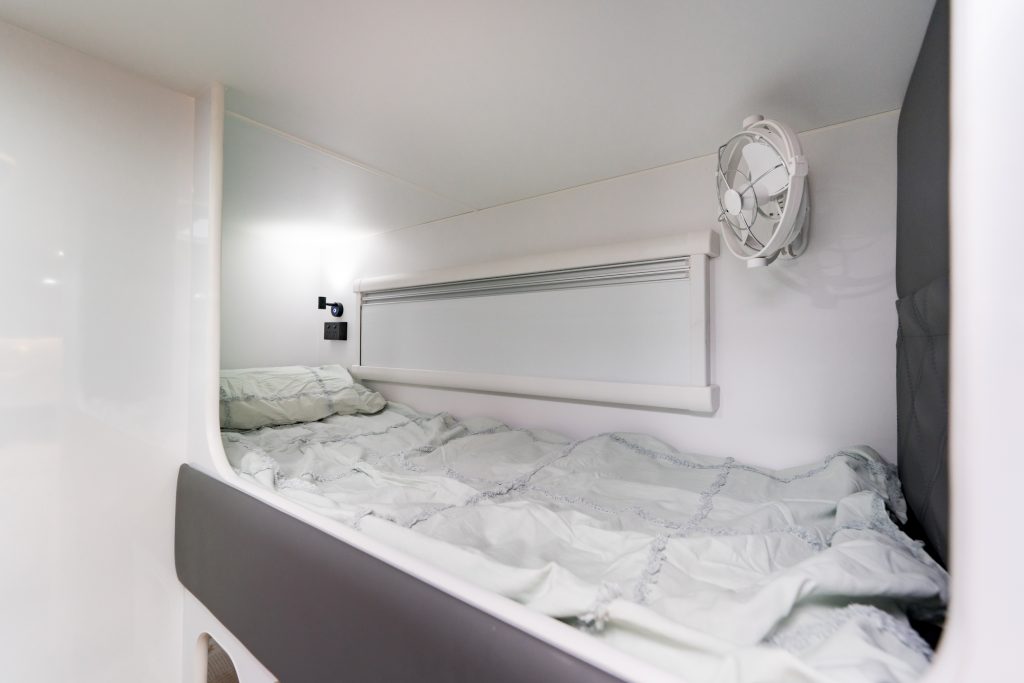

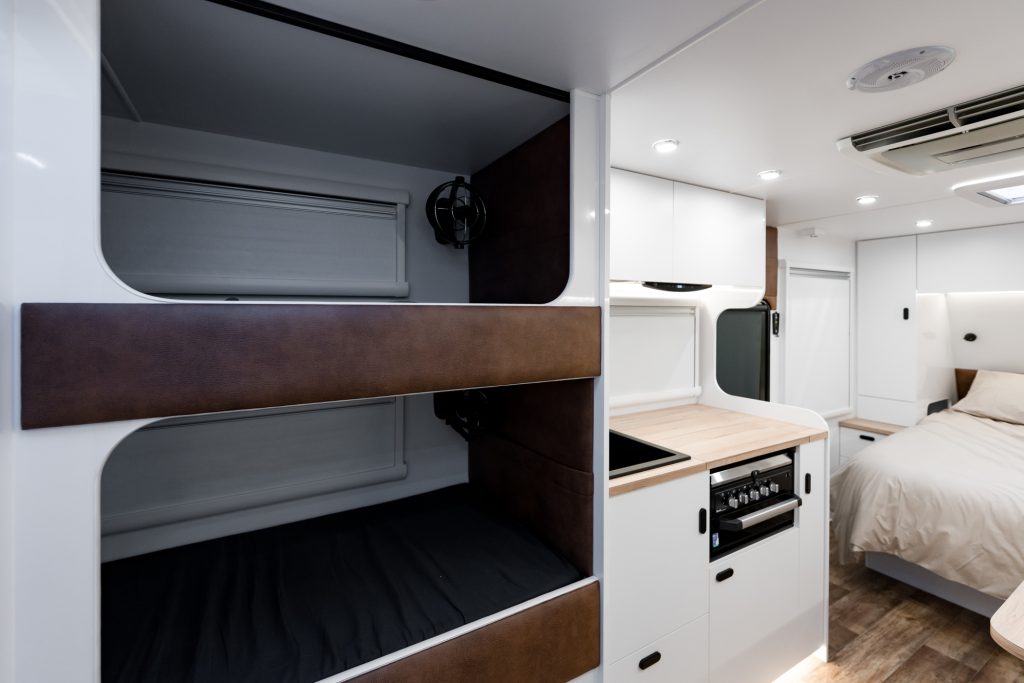

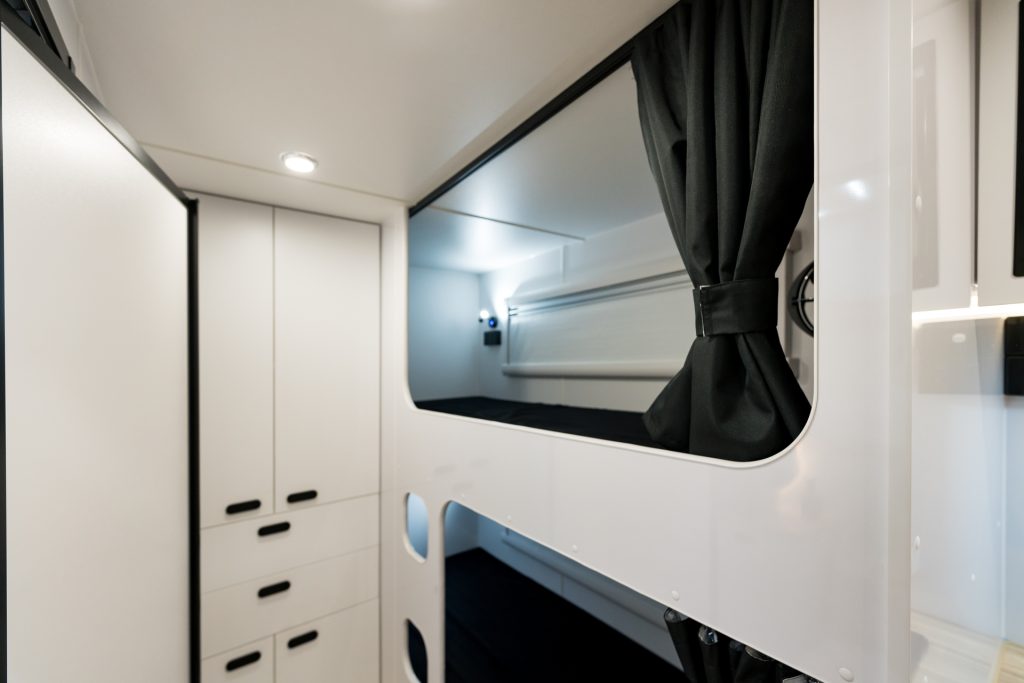

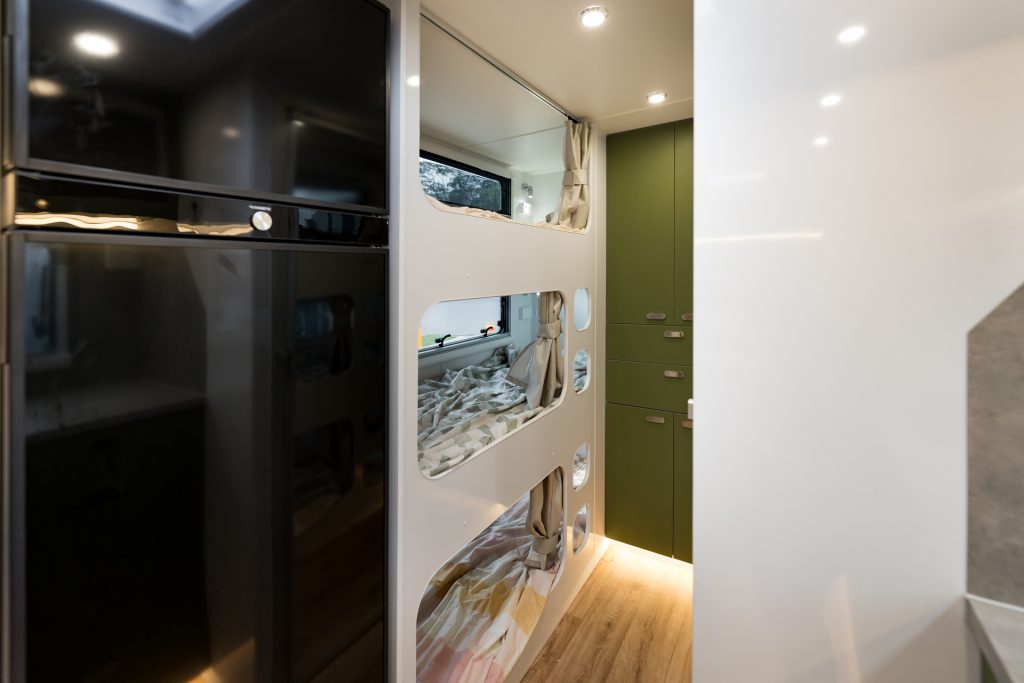

  • Double or Triple Bunks
  • Concealed Flush Handles

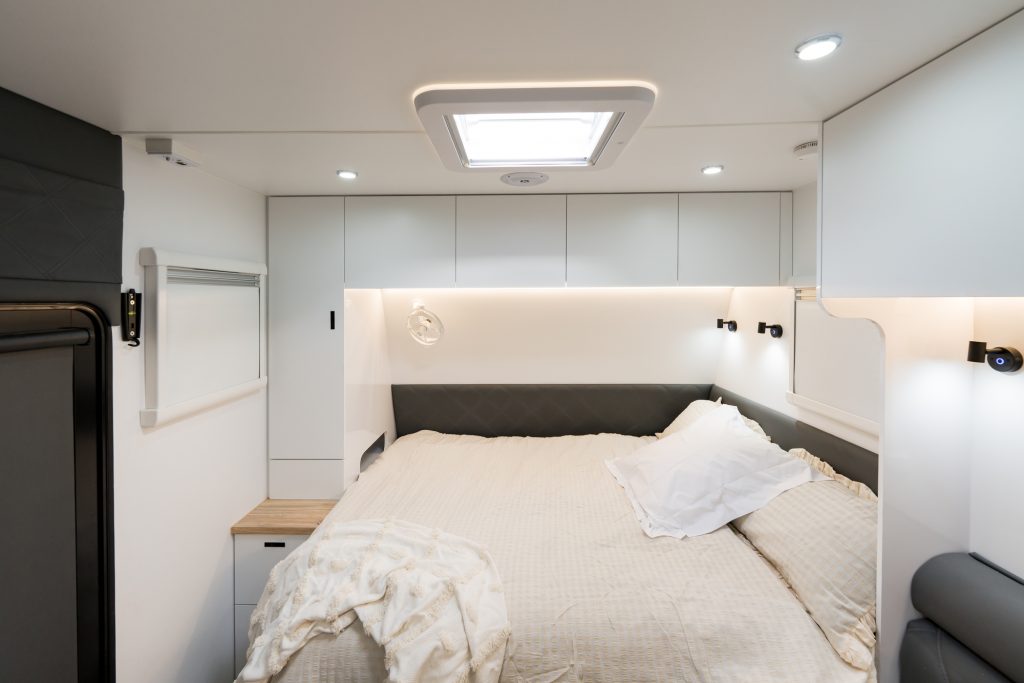

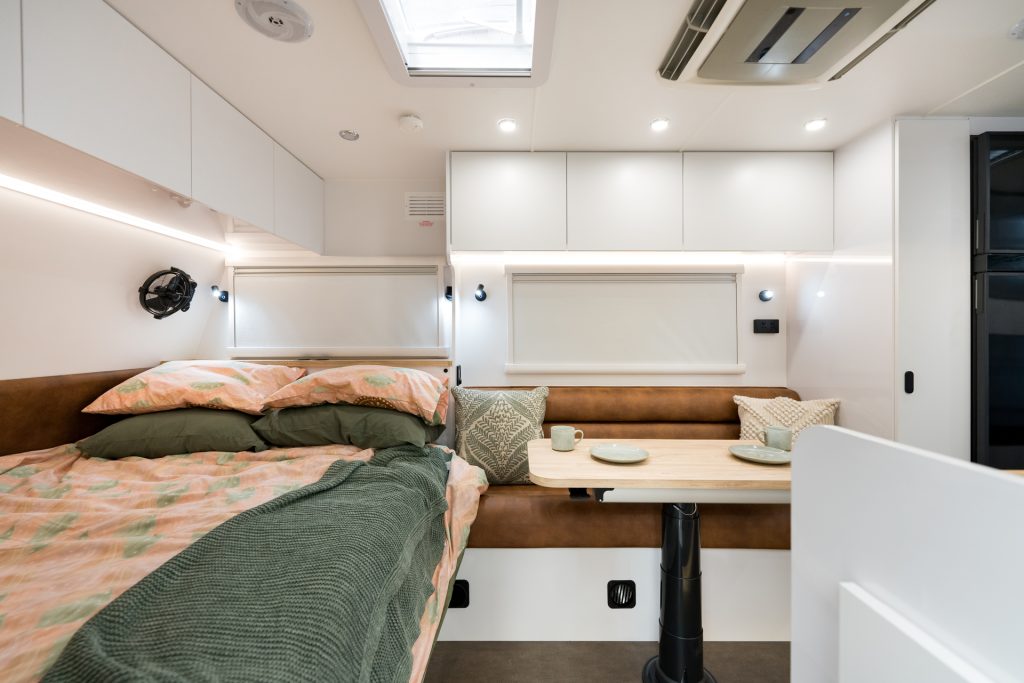

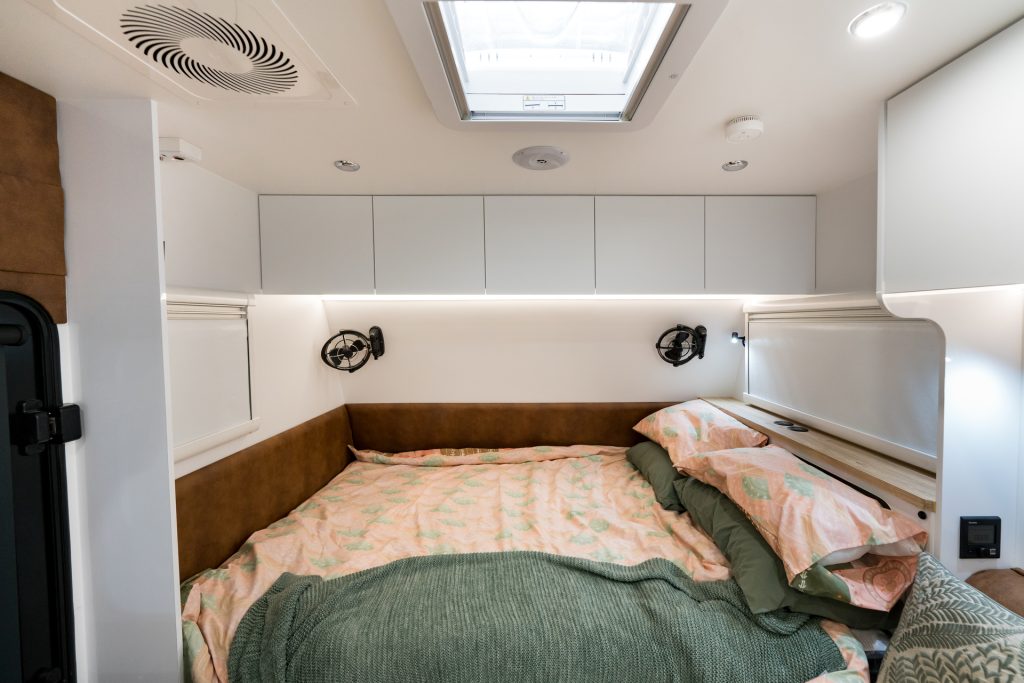

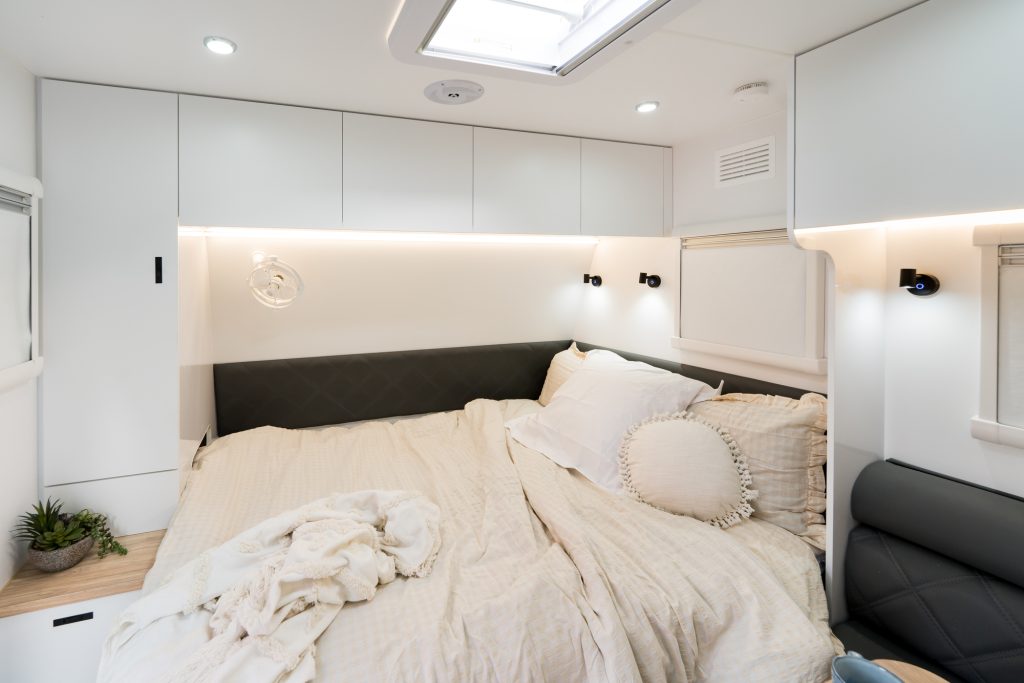

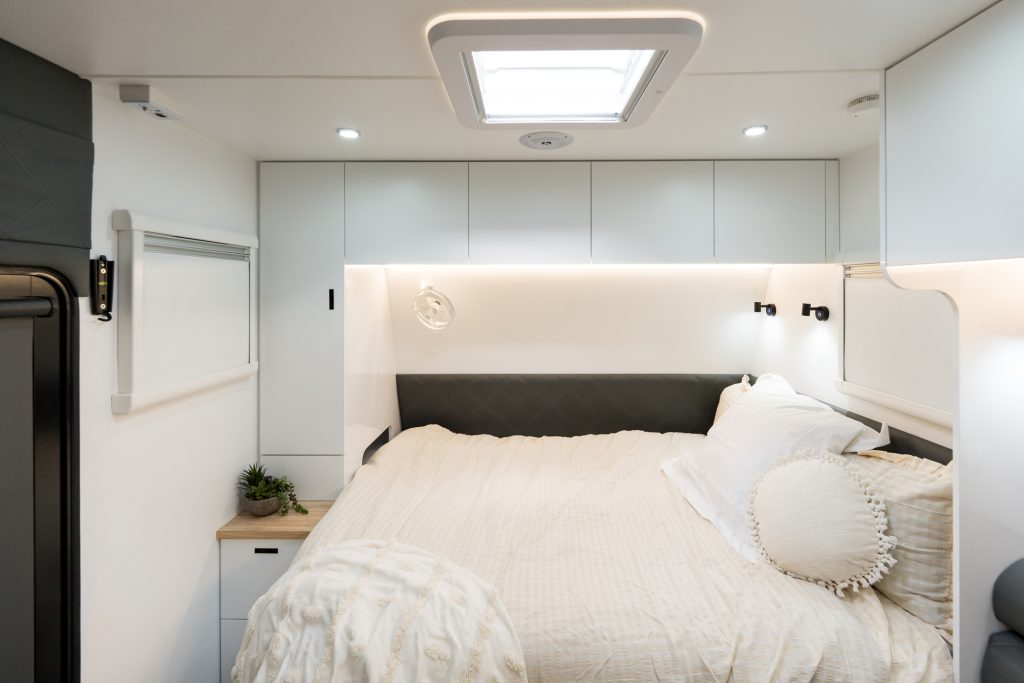

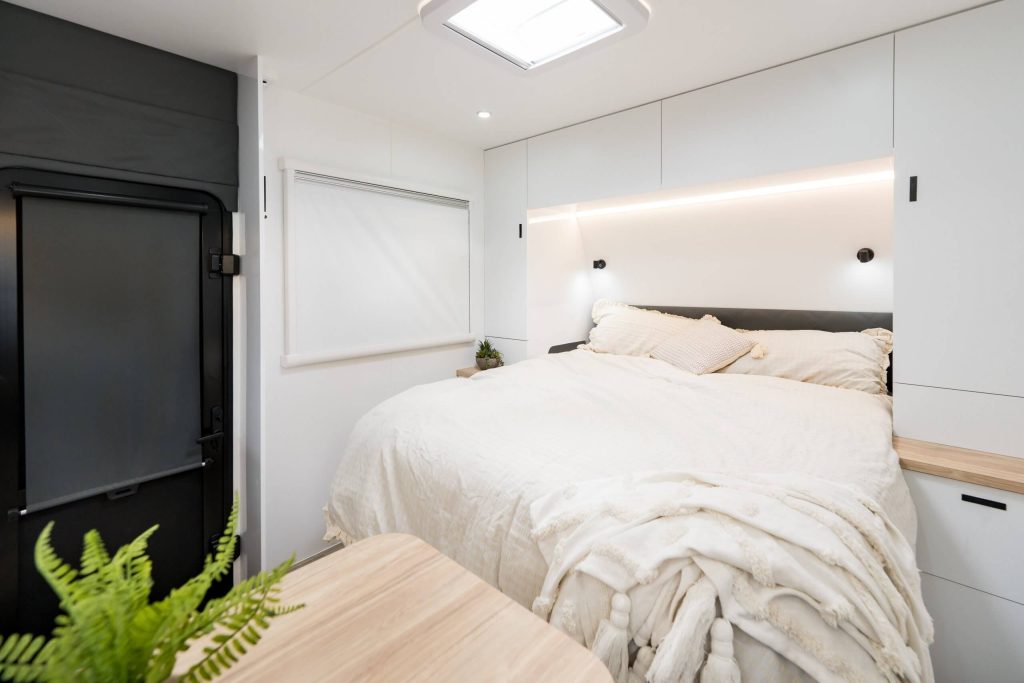

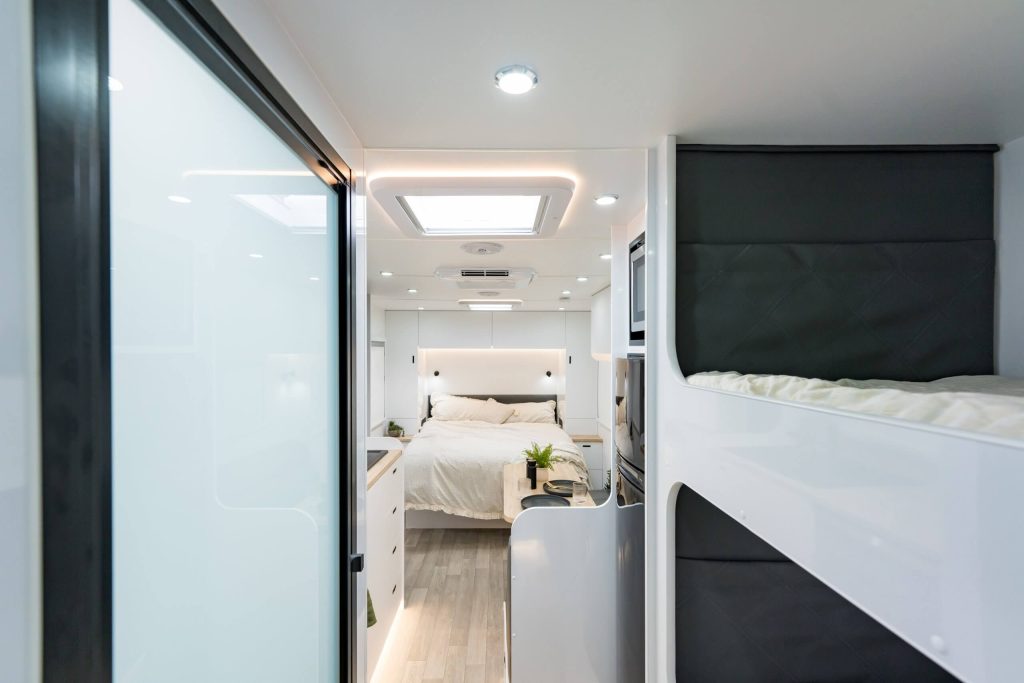

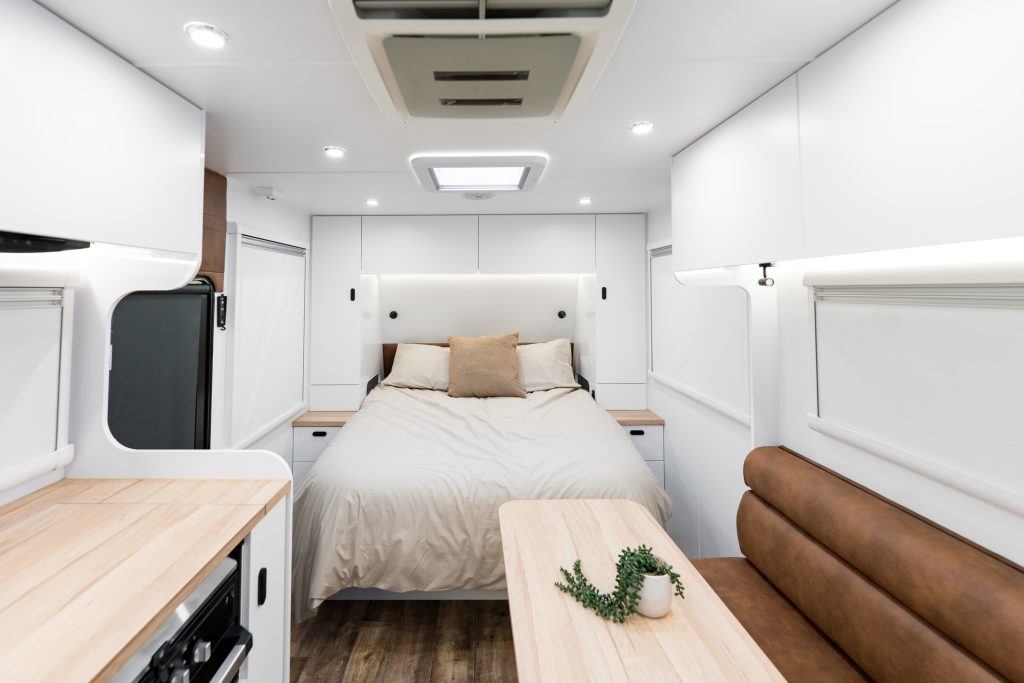

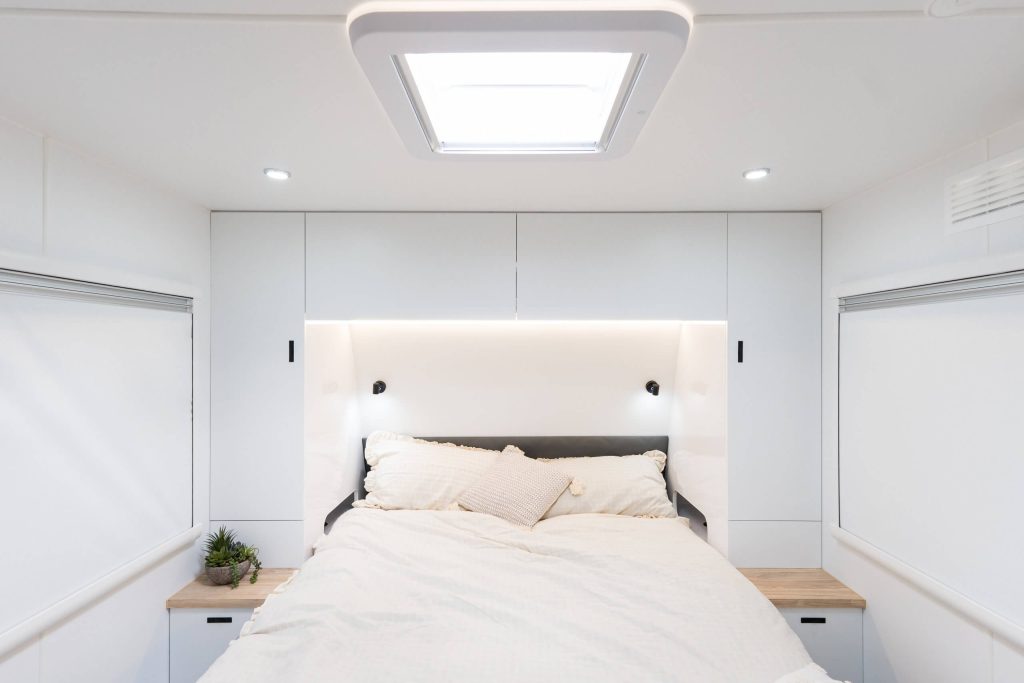

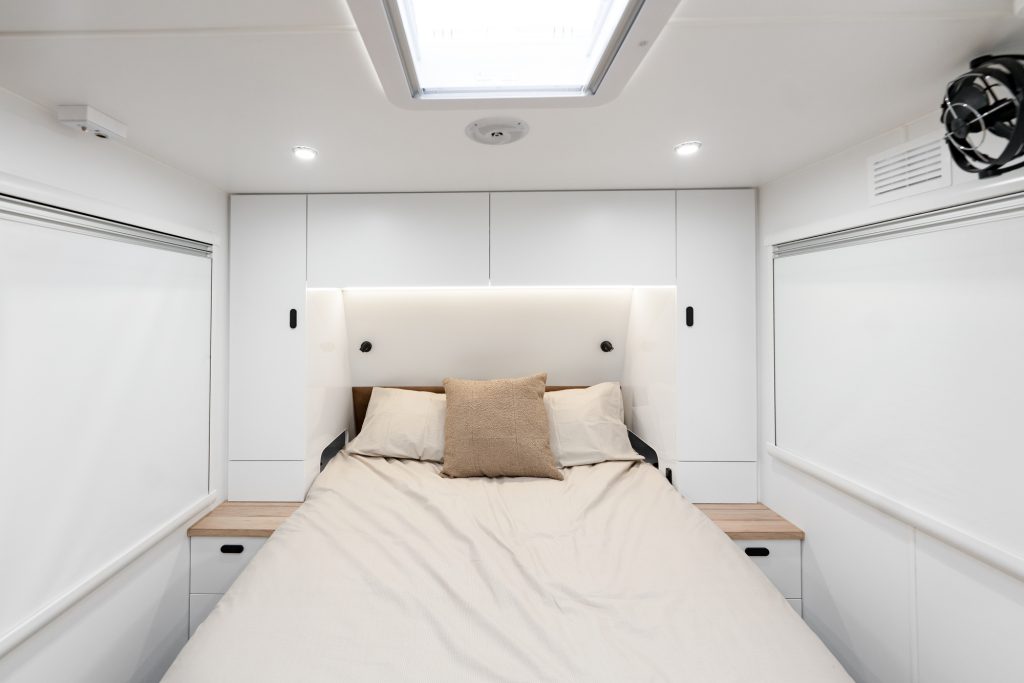

  • Pocket Coil RV Queen Bed
  • Full Height Upholstered Bedhead
  • Bed Side Storage

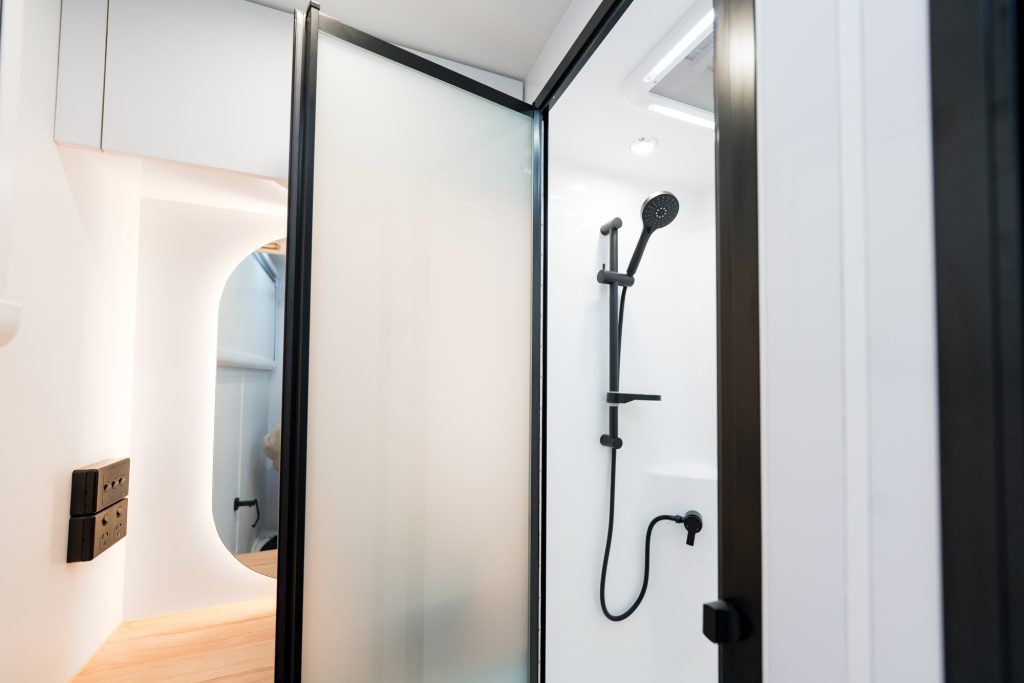

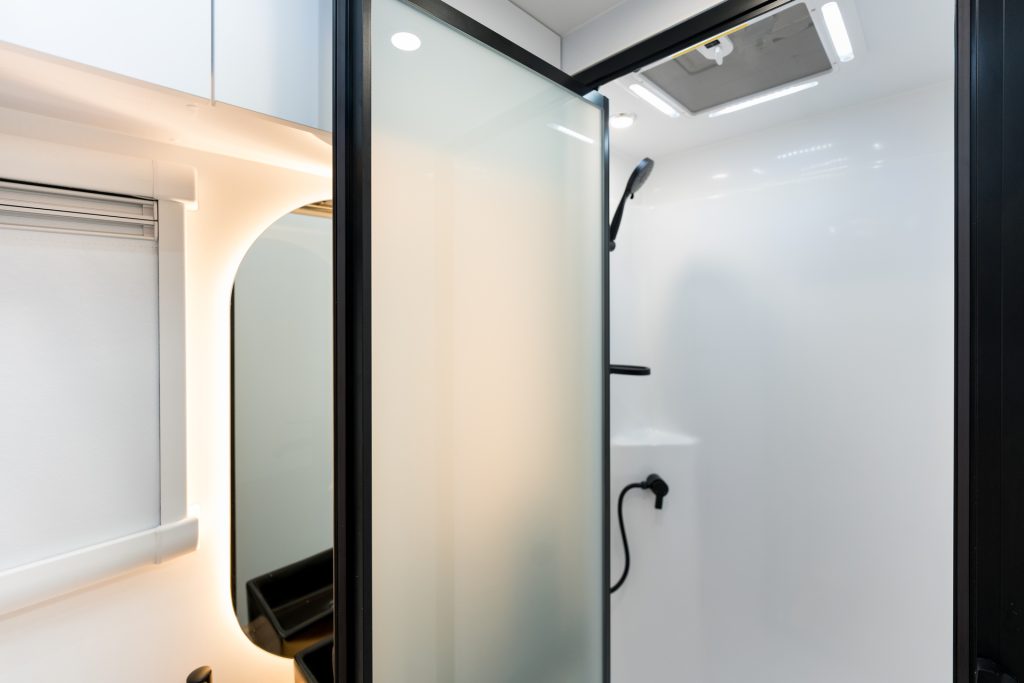

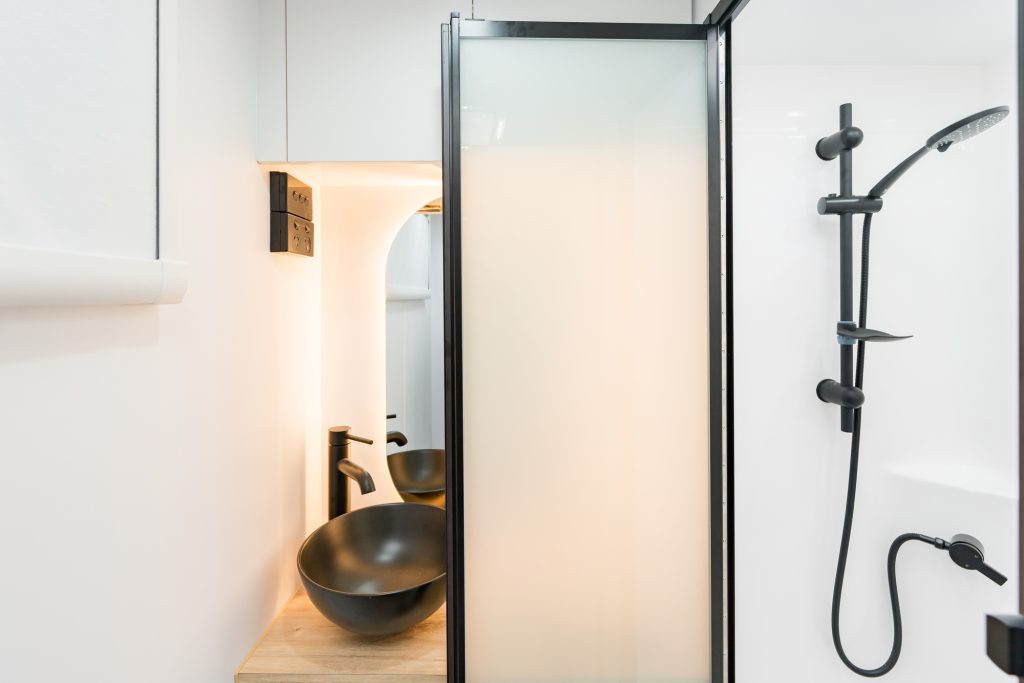

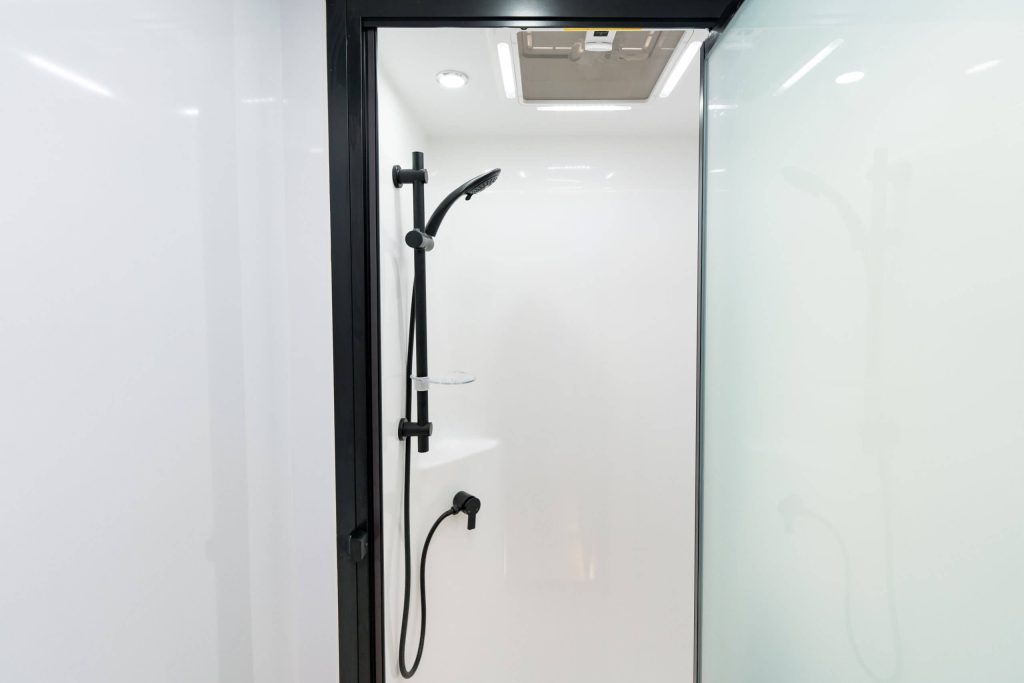

  • Shower Door Frames with Glass

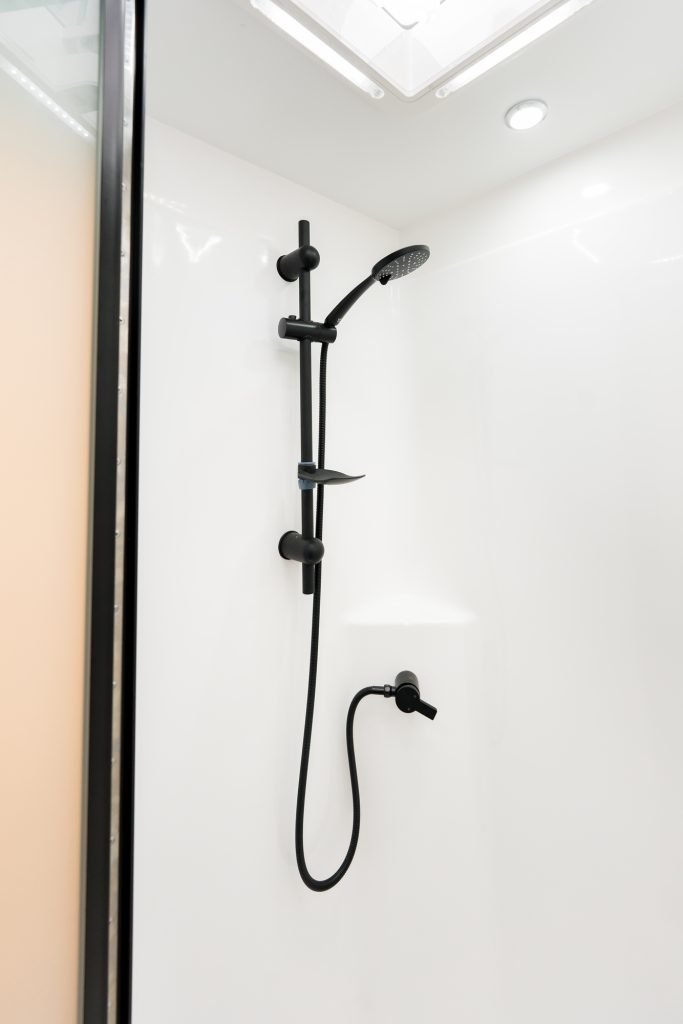

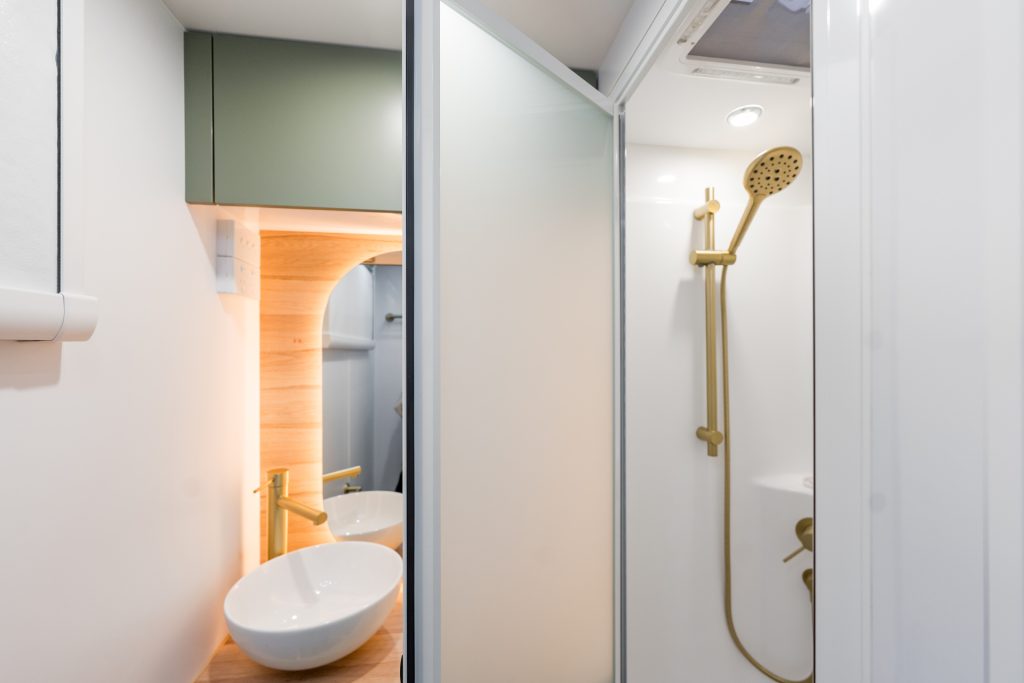

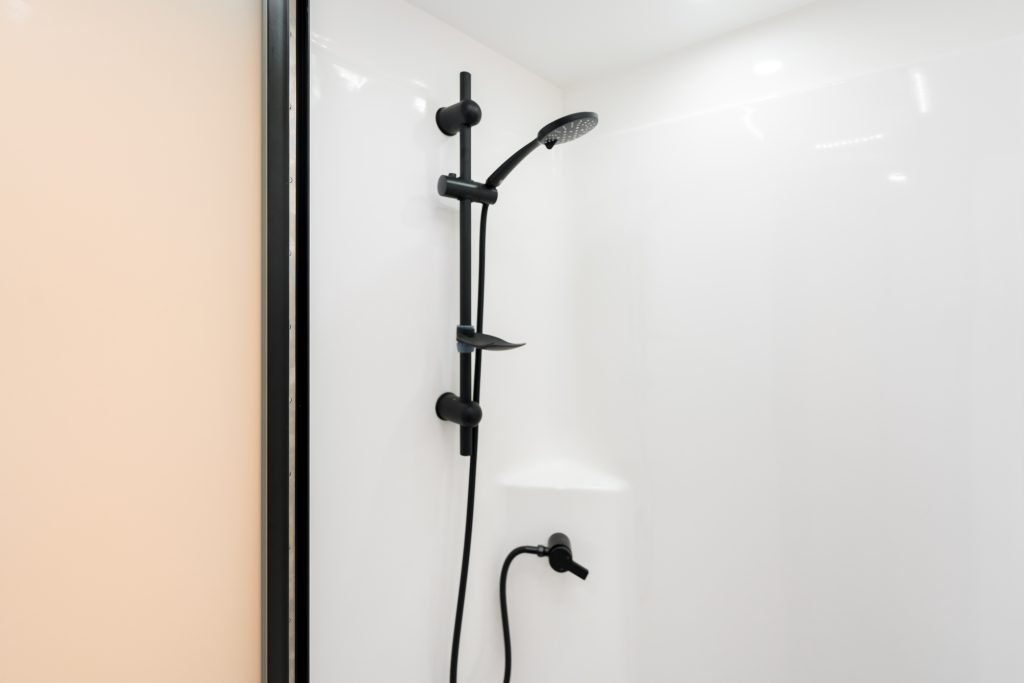

  • One Piece Fibreglass Shower
  • Premium Vinyl Flooring

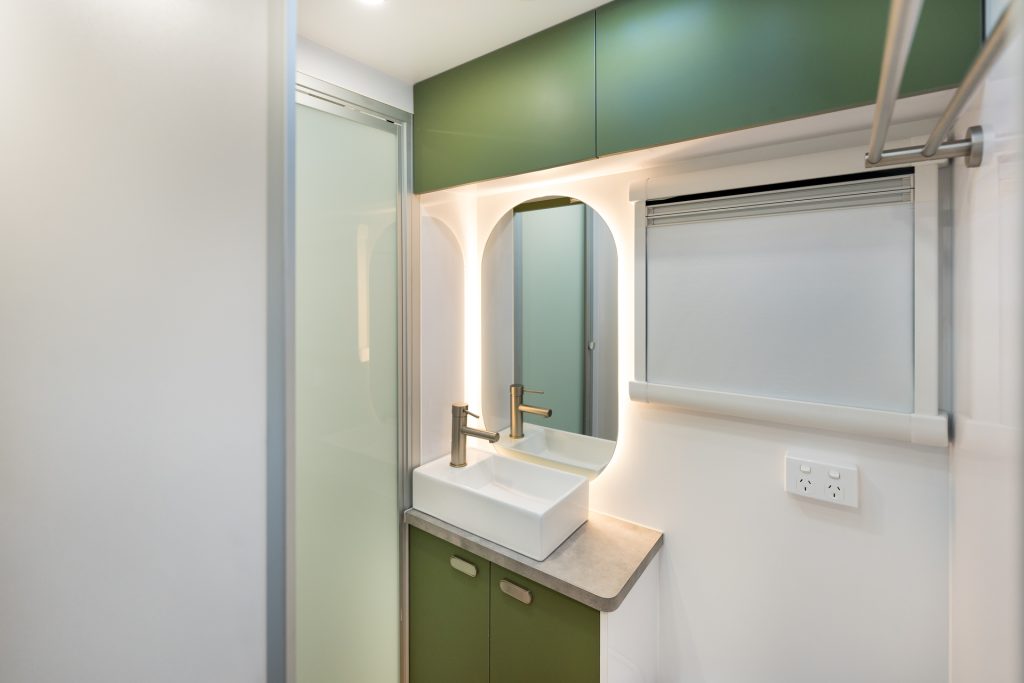

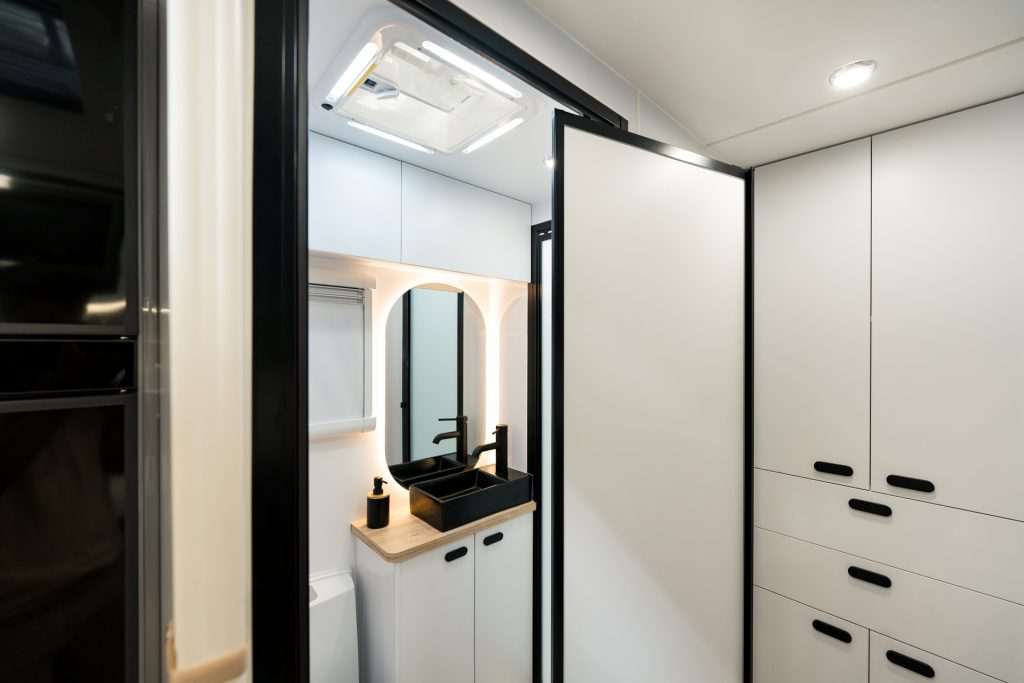

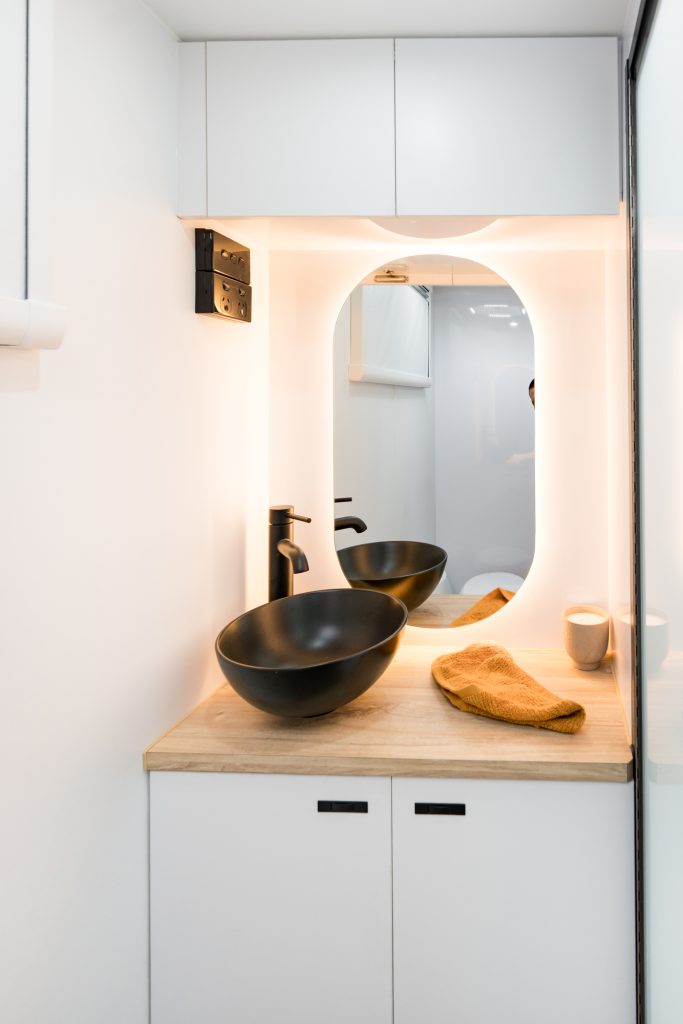

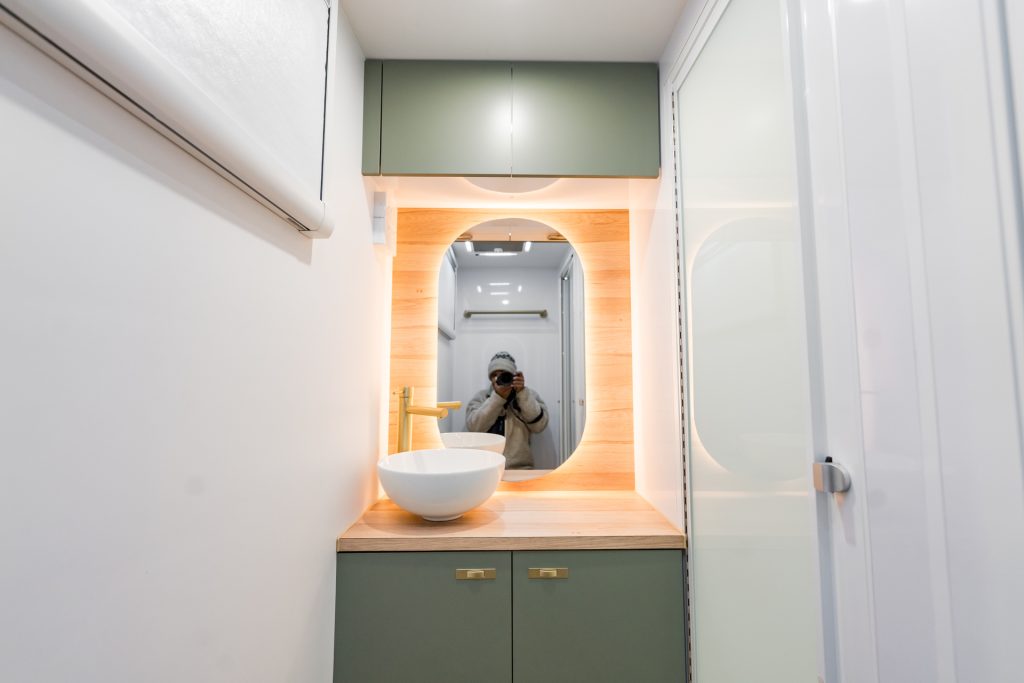

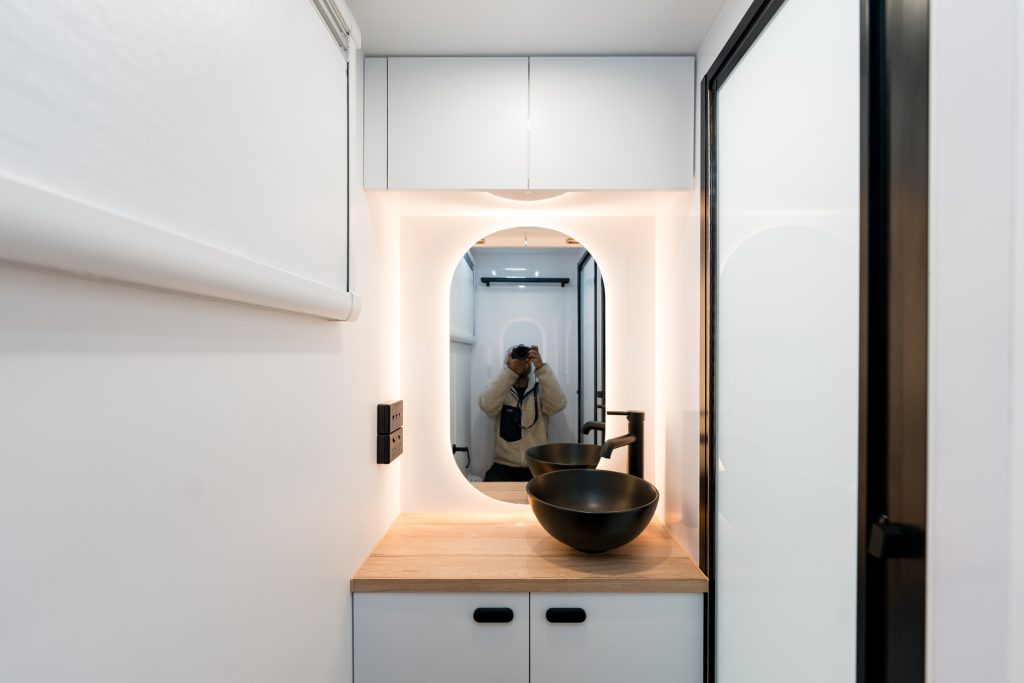

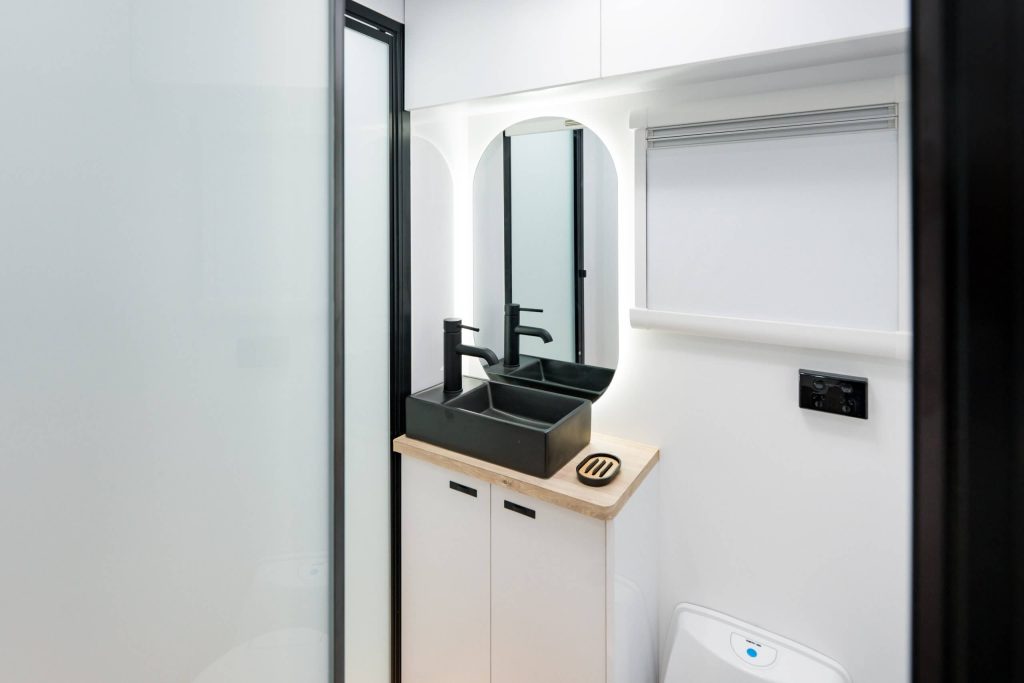

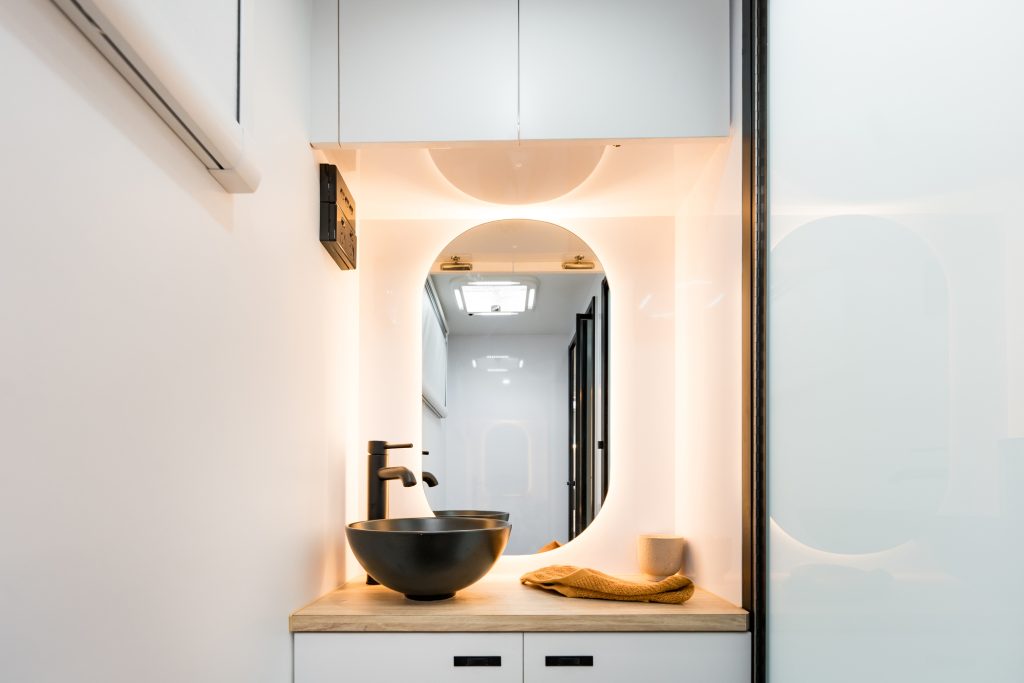

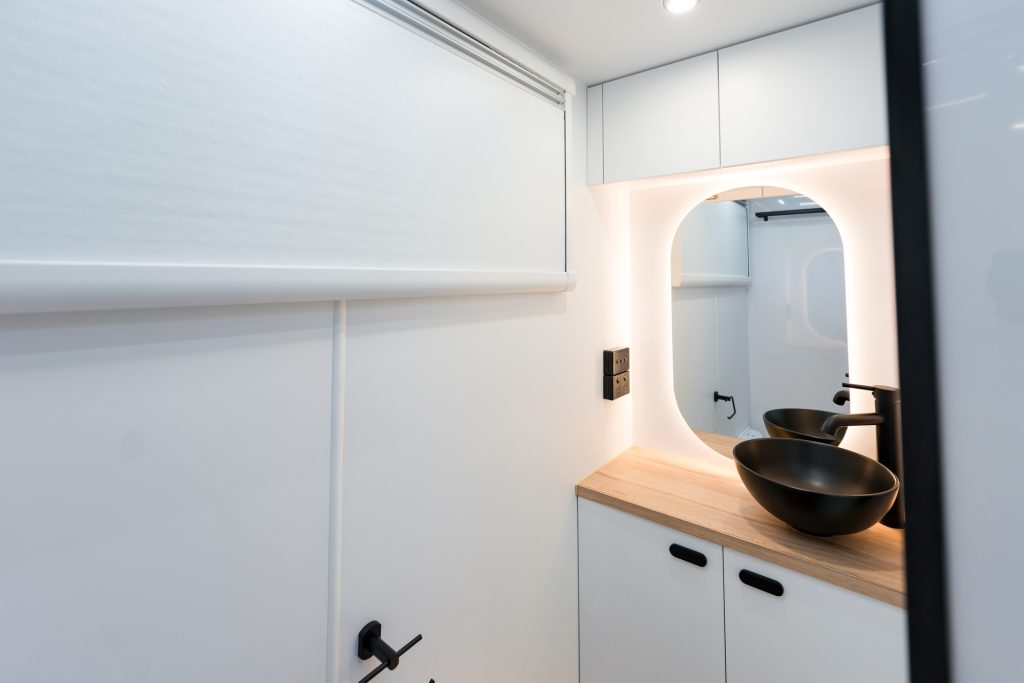

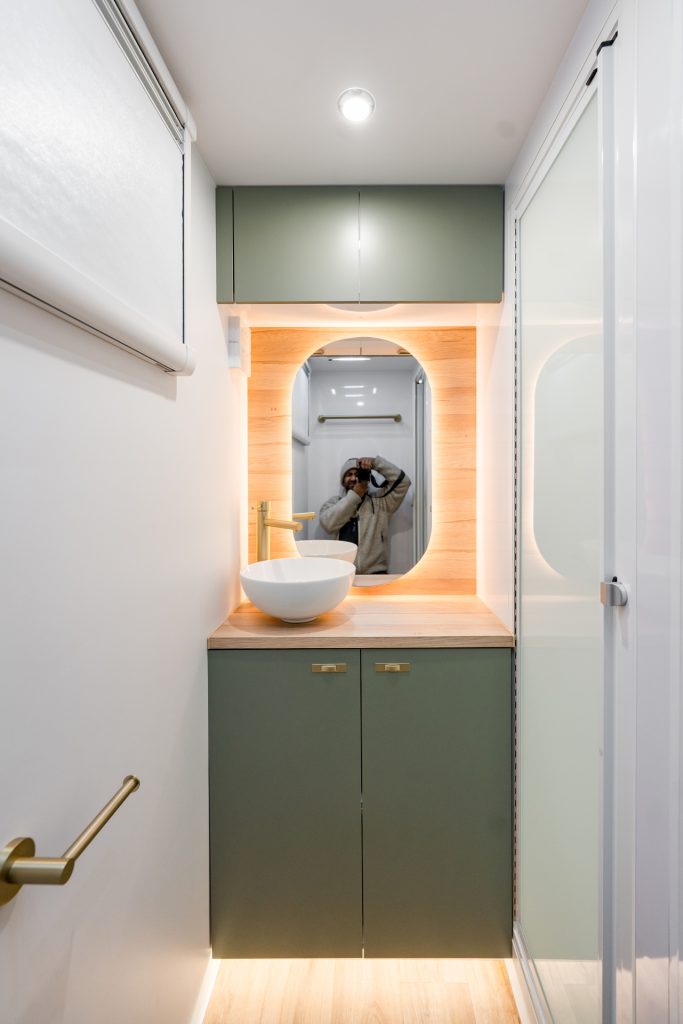

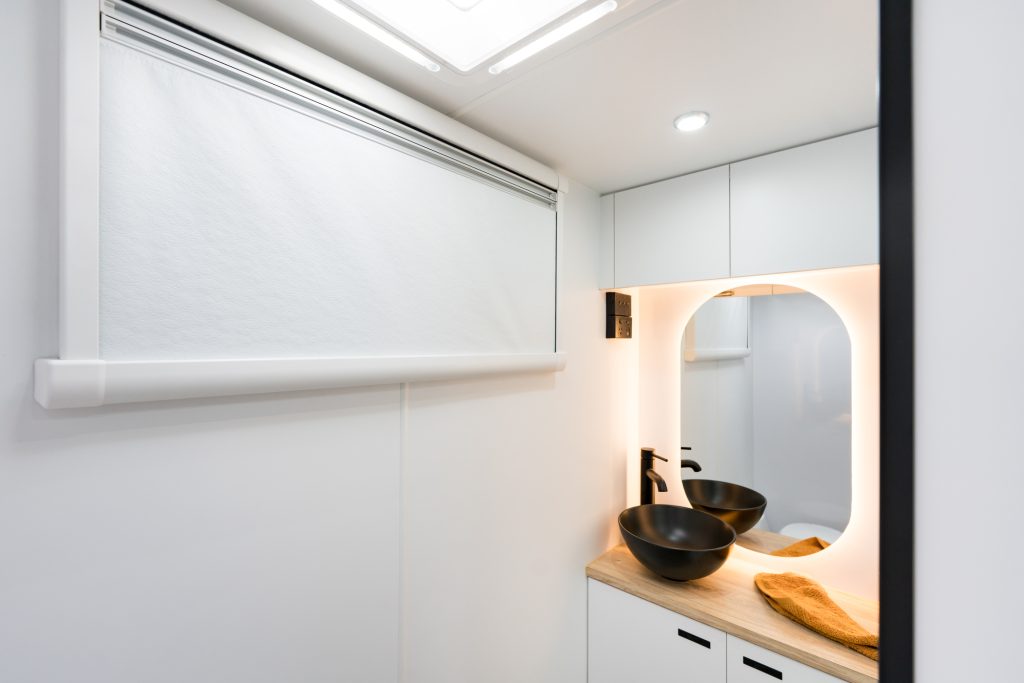

  • Curved LED Mirror in Bathroom
  • Timber or Stone Look Laminate Benchtops
  • 2 x Illuminated Roof Vents
  • 2 x Hatches with Extractor Fan
  • Towel Rail & Toilet Roll holder
  • Granite or Stainless Steel Kitchen Sink

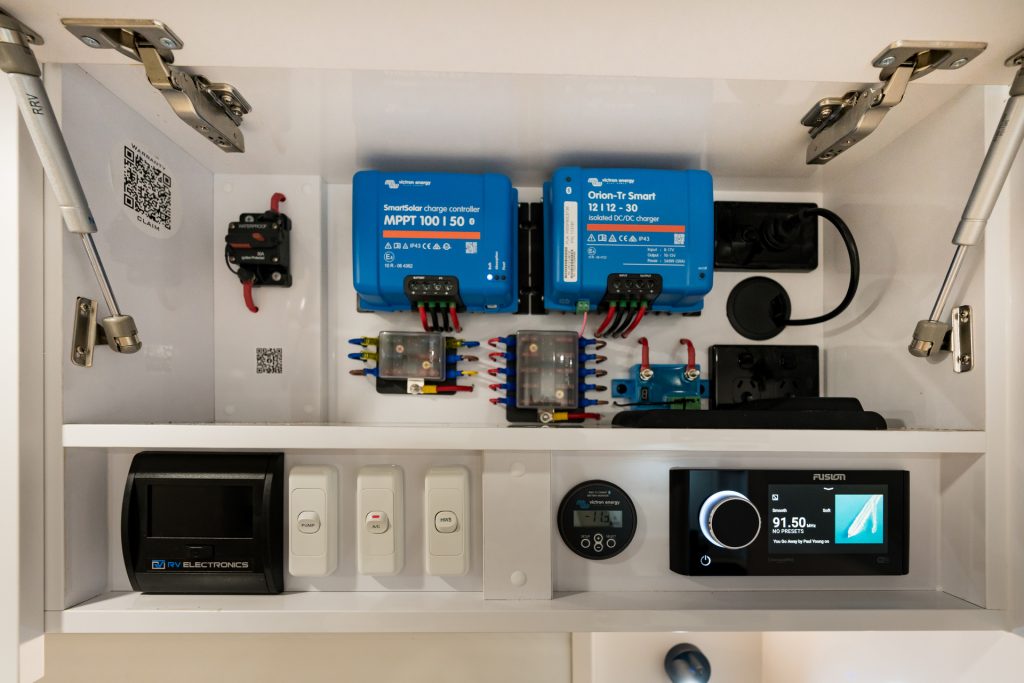

  • Victron Energy Electrical System
  • BMV-712 Smart Display
  • 30A Victron Blue Smart AC Charger
  • 30A Victron MPPT Solar Charge Controller
  • 30A Victron Orion-TR Smart DC-DC Charger
  • 2 x 200W Solar Panels
  • 1 x 225Ah Lithium Battery
  • 2 x Fusion Speakers
  • 12V & 240V Powerpoints
  • Wireless Phone Charger
  • Milenco Dust Reduction & TV Antenna
  • 2 Awning Lights with Amber Anti Bug
  • Dimmable LED Strip Lighting

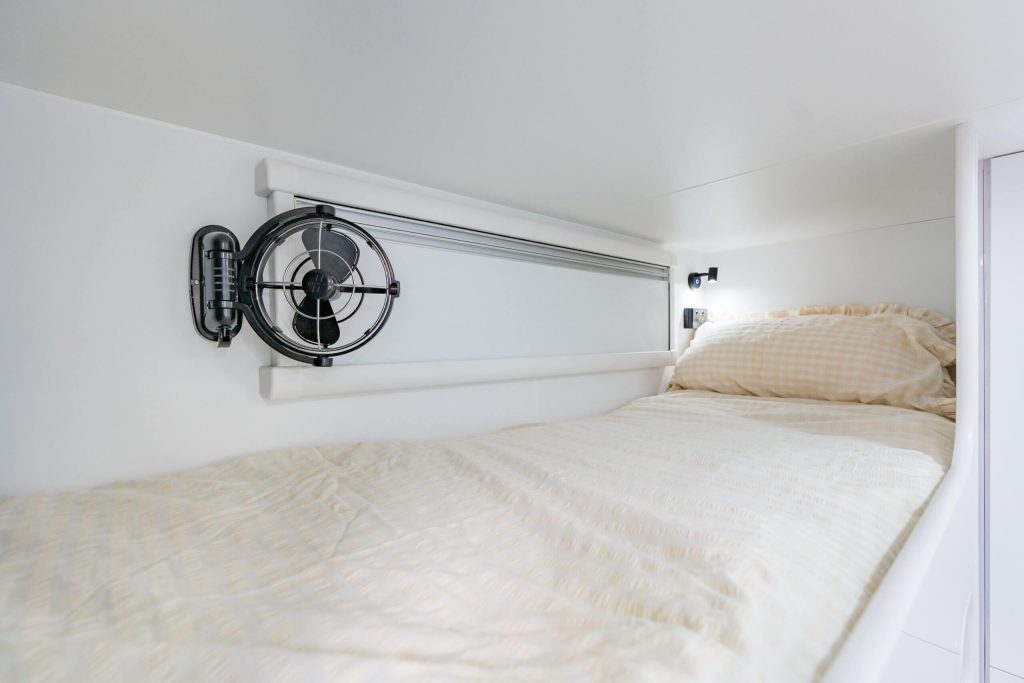

  • Sirocco Fan above Bed & All Bunks
  • Reverse Camera
  • Water Pump
  • Swift 28L Gas & Electric Hot Water System
  • 2 x 110L Fresh Water Tanks
  • 1 x 110L Grey Water Tank

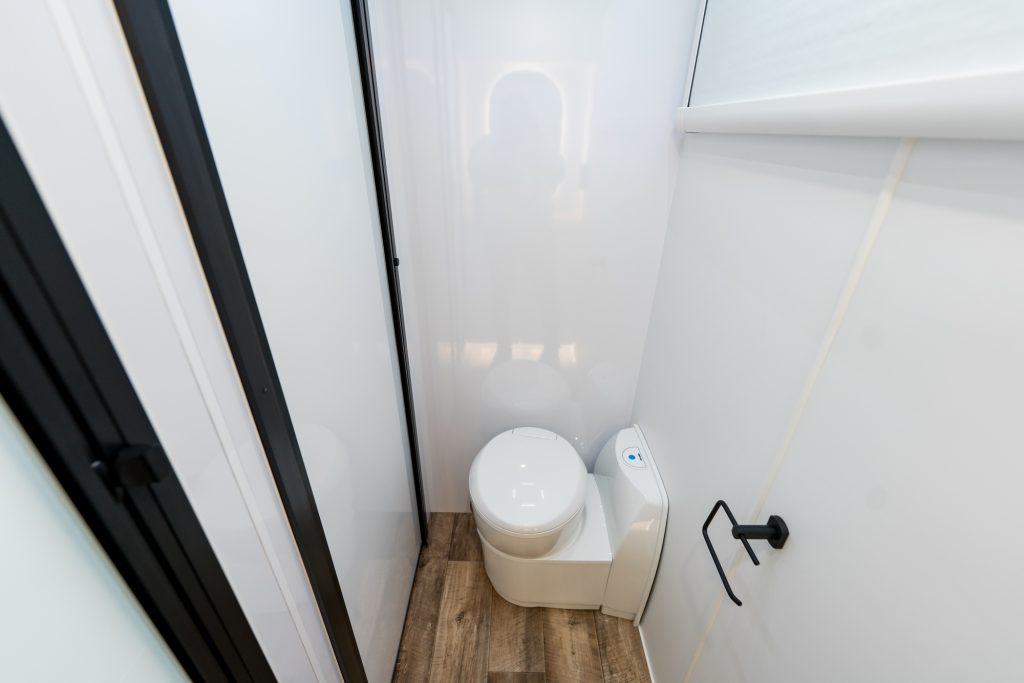

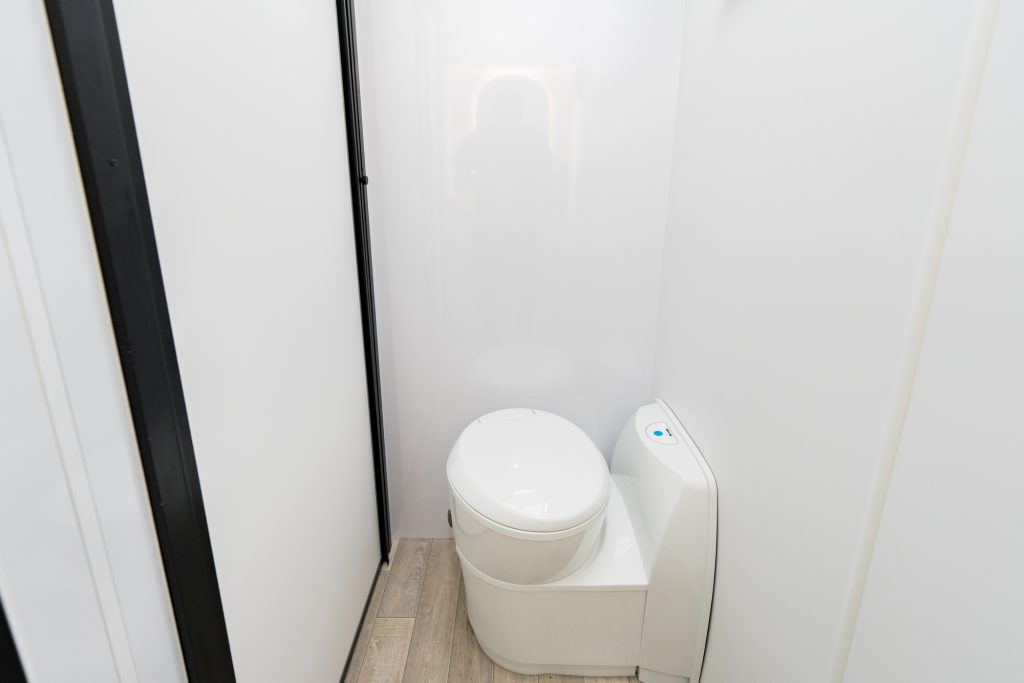

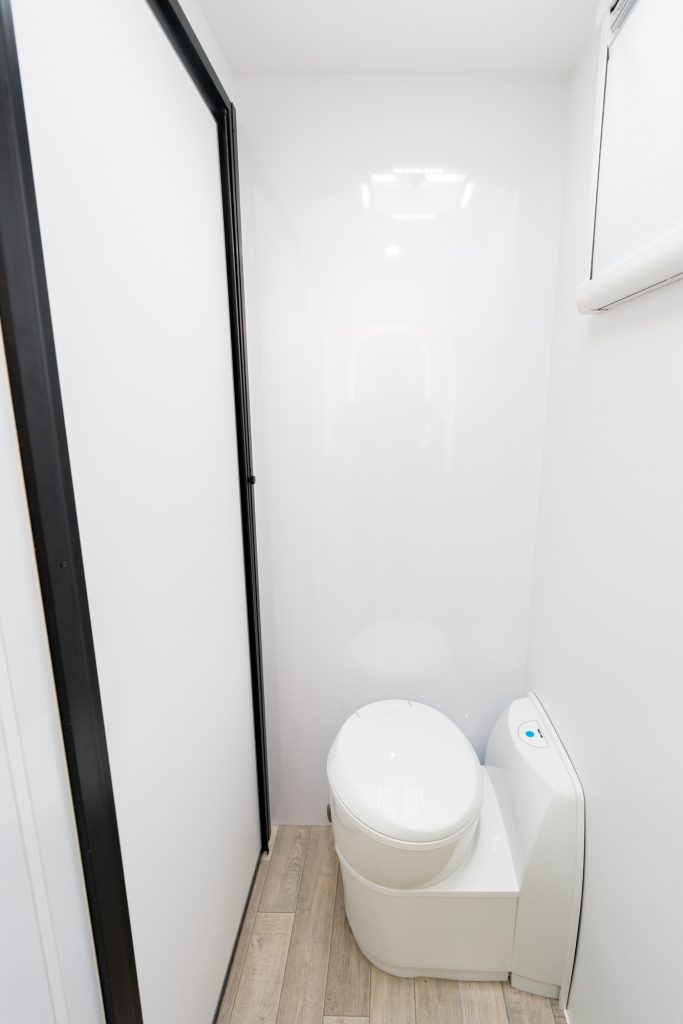

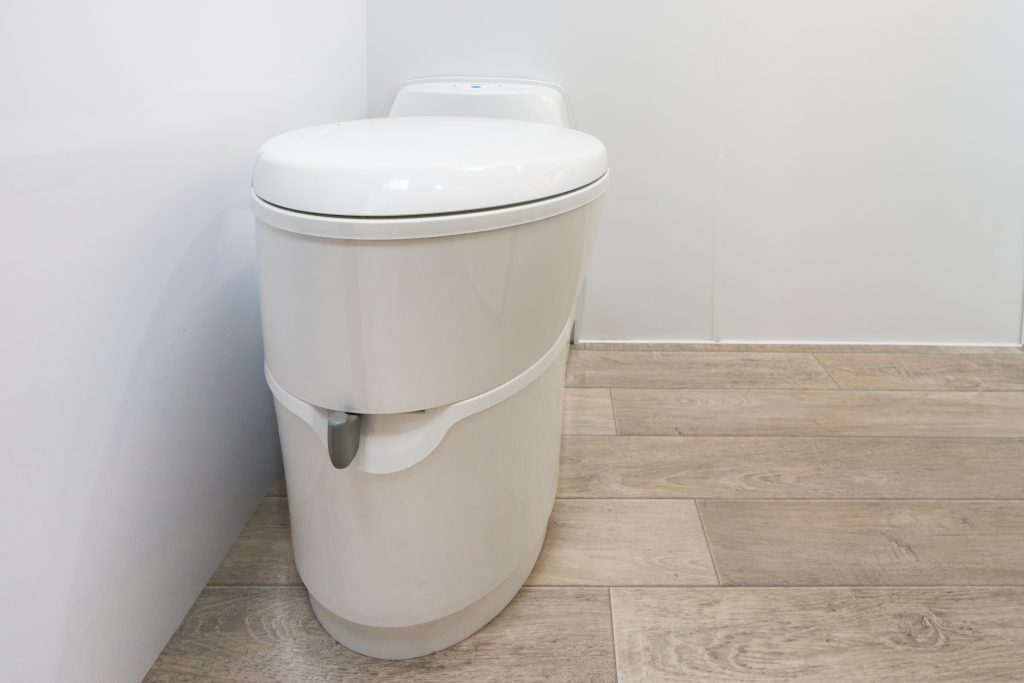

  • Thetford Cassette Toilet
  • Water Tap at A frame
  • Kitchen Tap with Water Filter
  • External Shower
  • Gas Bayonet Connection
  • 2 x 9kg Gas Bottles

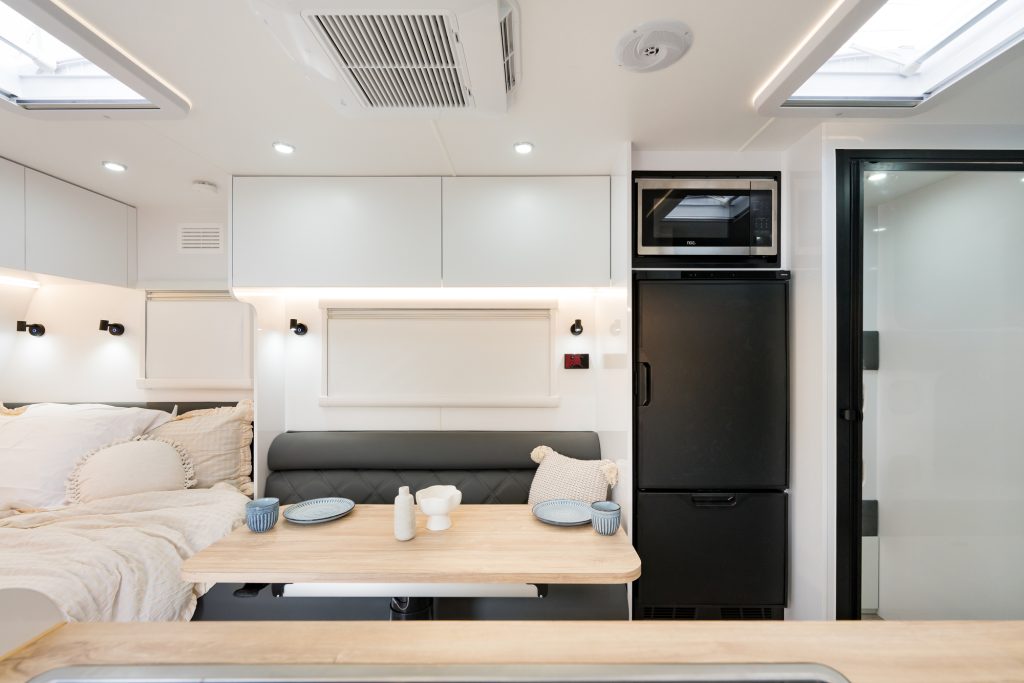

  • Dometic 200L or 224L Compressor Fridge & Freezer
  • myCOOLMAN 3kw Reverse Cycle Air Conditioner (with heating)

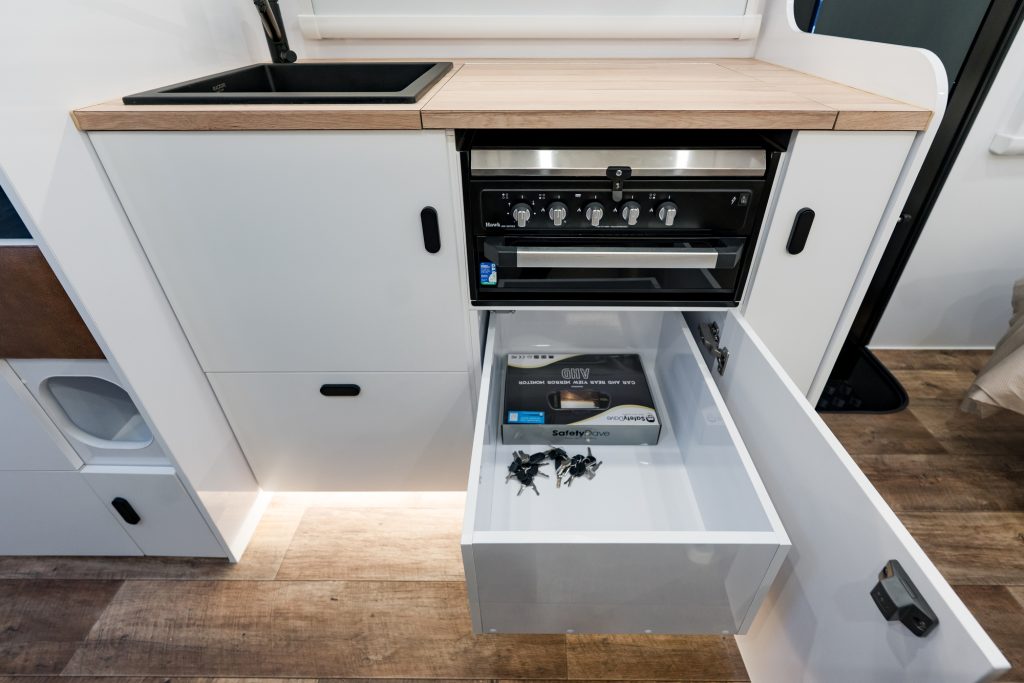

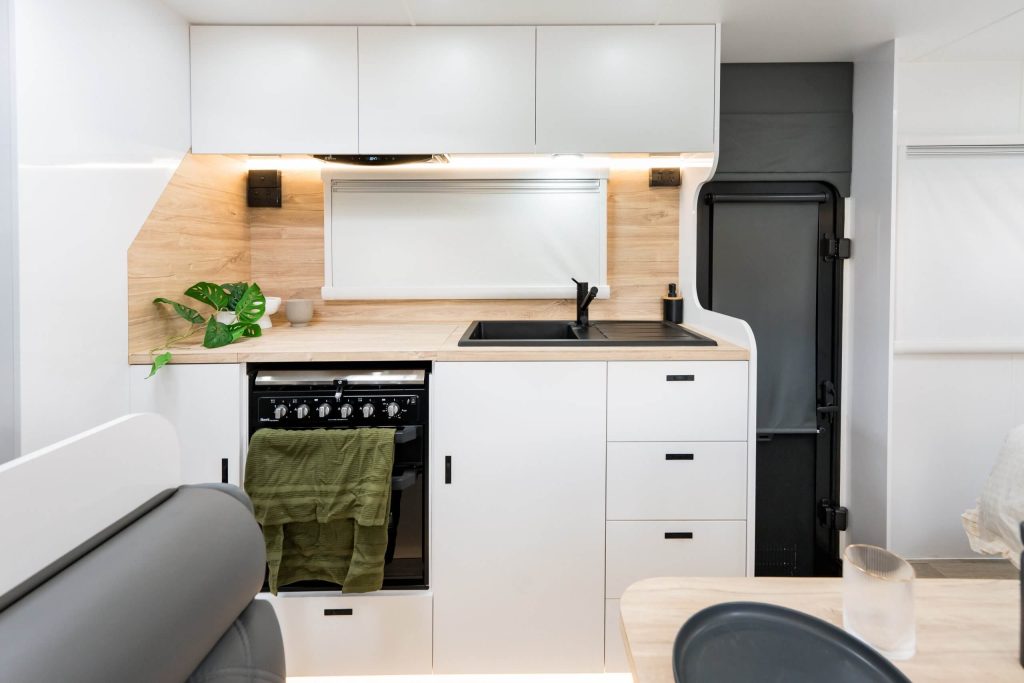

  • Swift 4 burner (3 gas & 1 1000w element) with grill & oven
  • Rangehood
  • LED Smart TV 24″

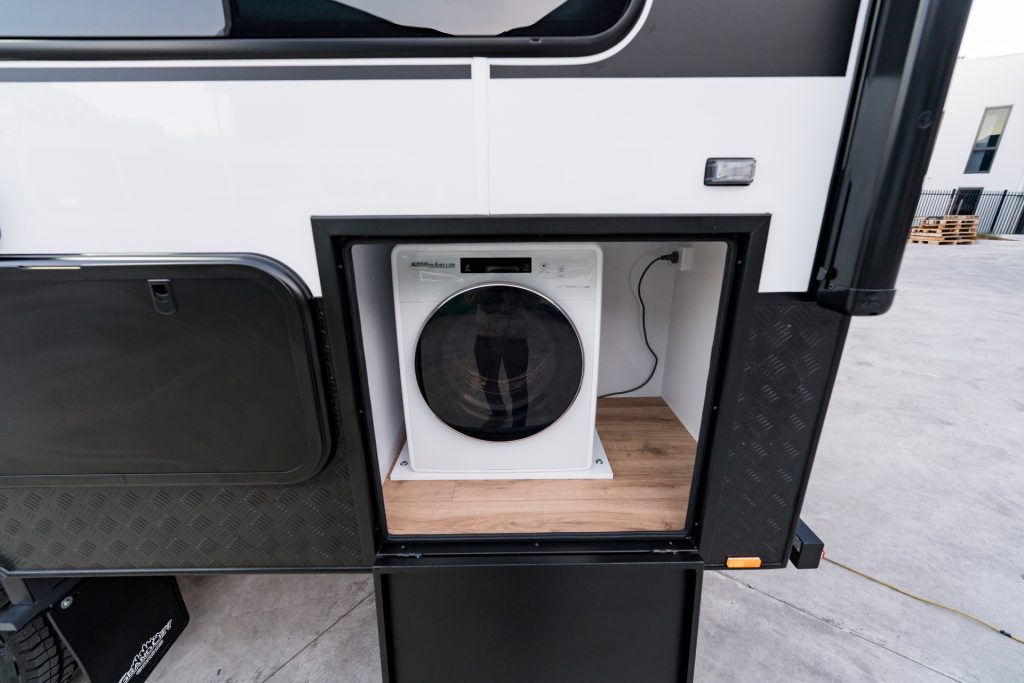

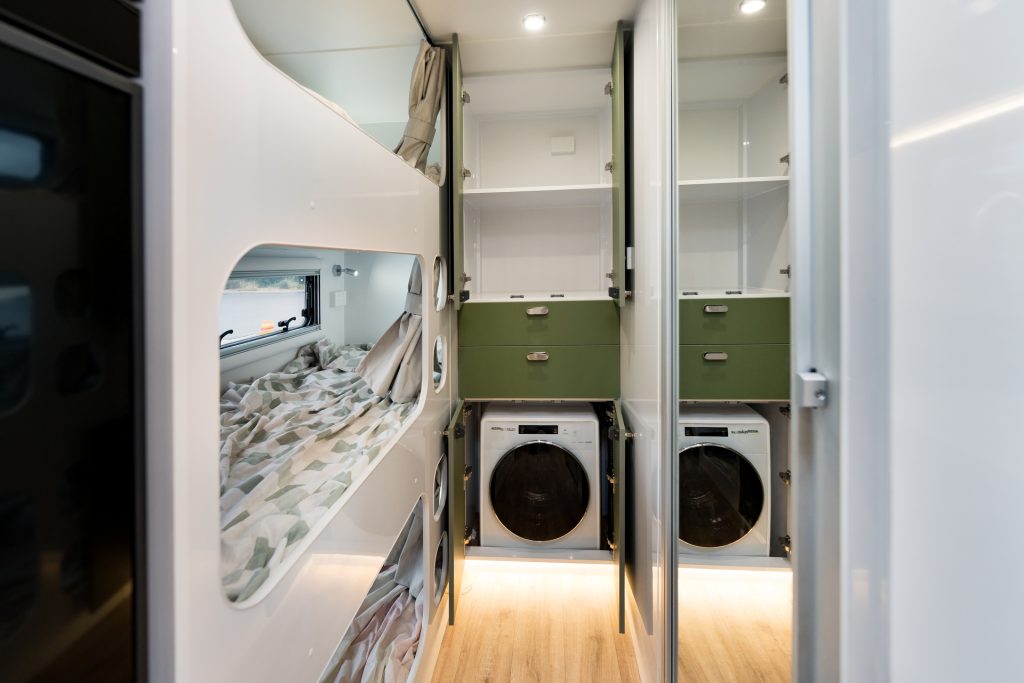

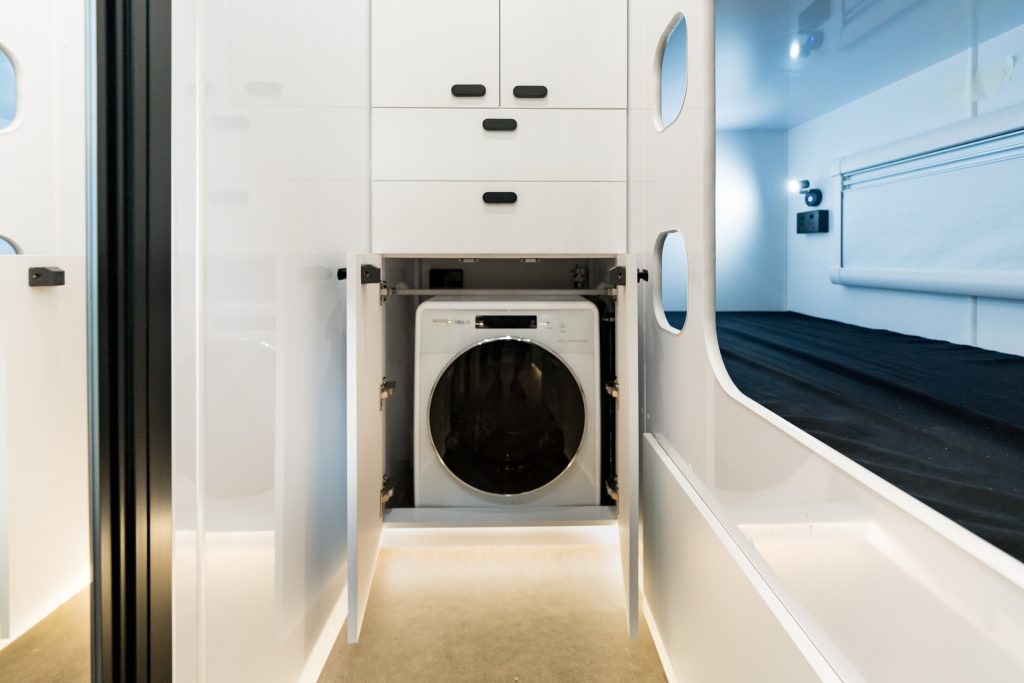

  • Washing Machine
  • Microwave 25L (Plateless)
  • Furrion Radio

Interested in the Dreamer Family

If you’re interested in buying one of our Peak caravans please get in touch for a quote.

Select your caravan size:

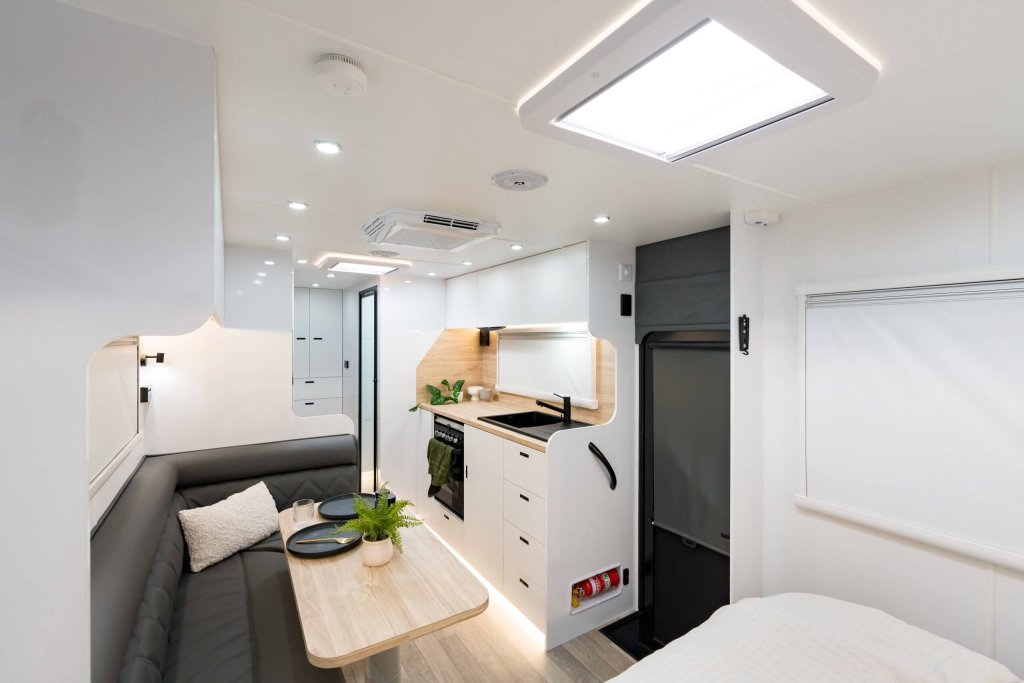

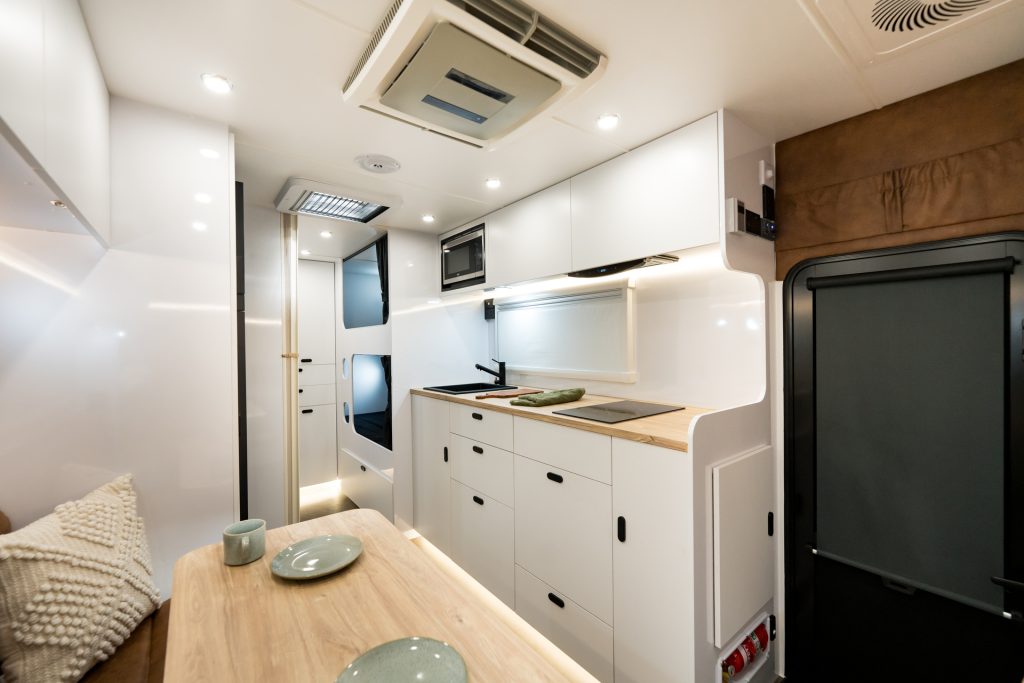

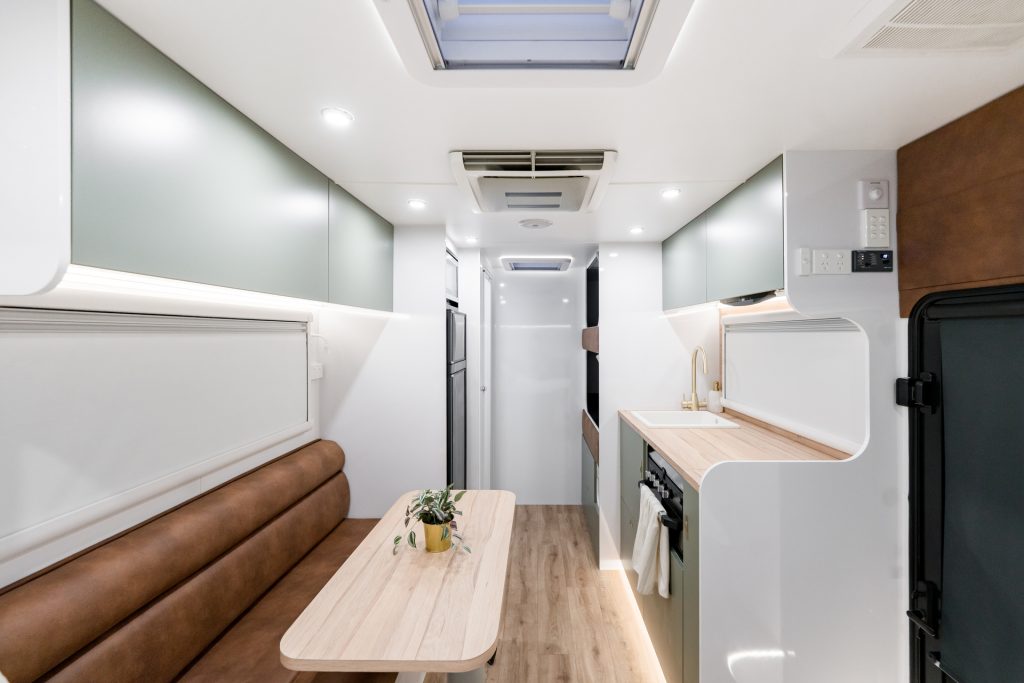

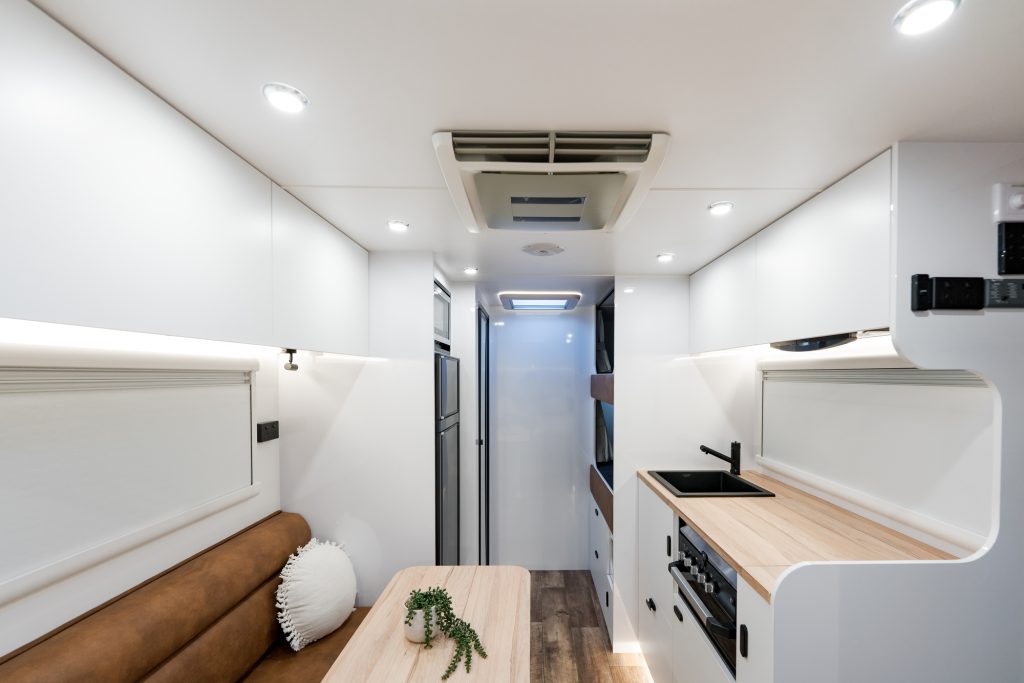

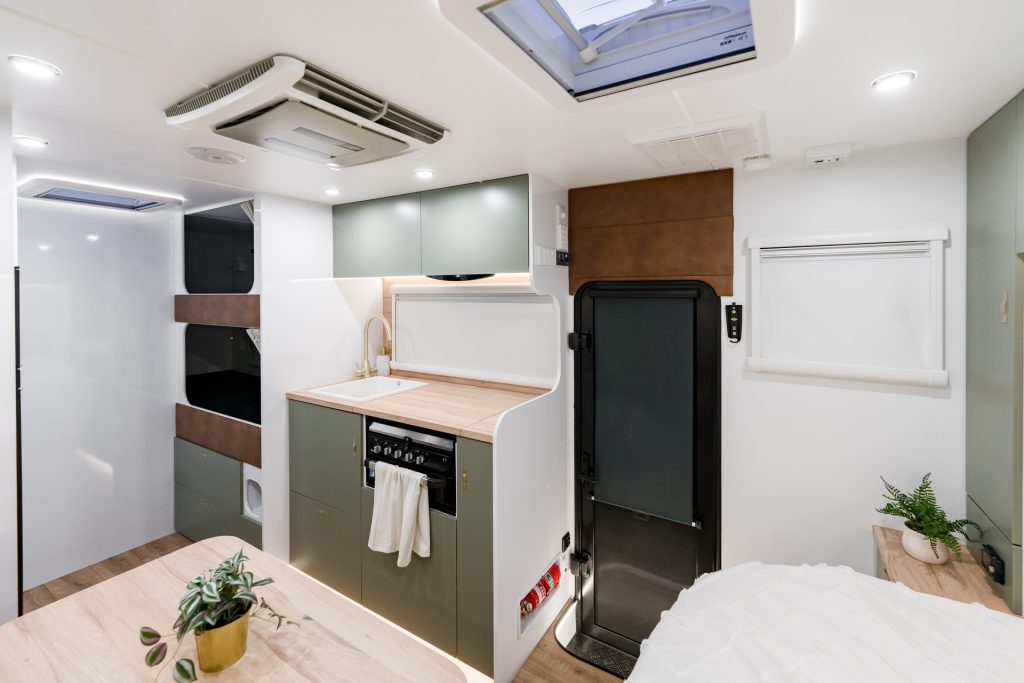

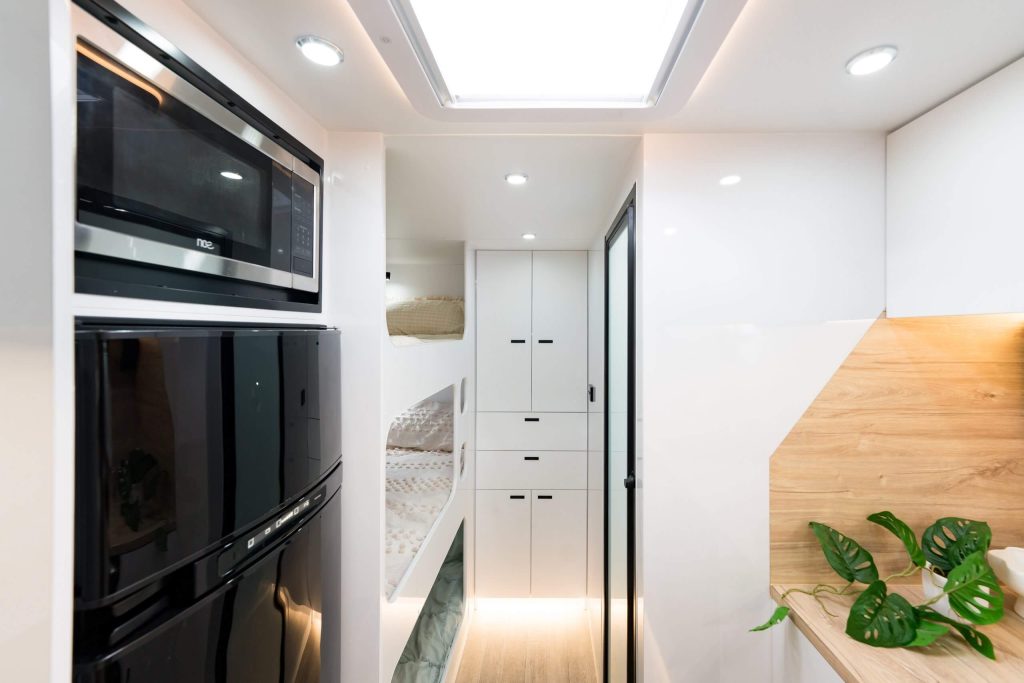

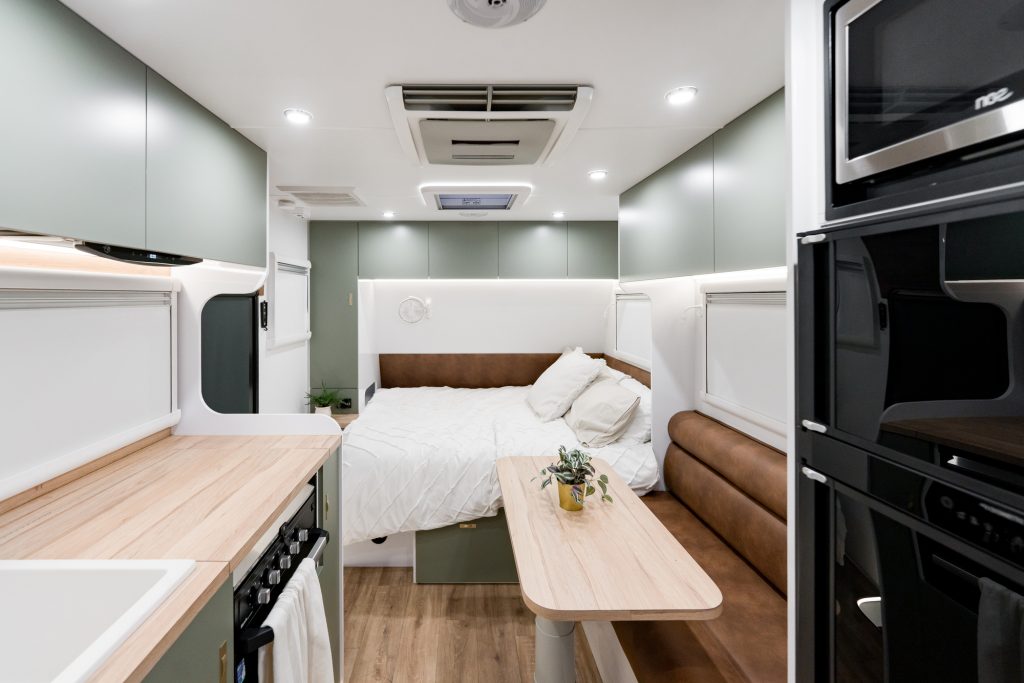

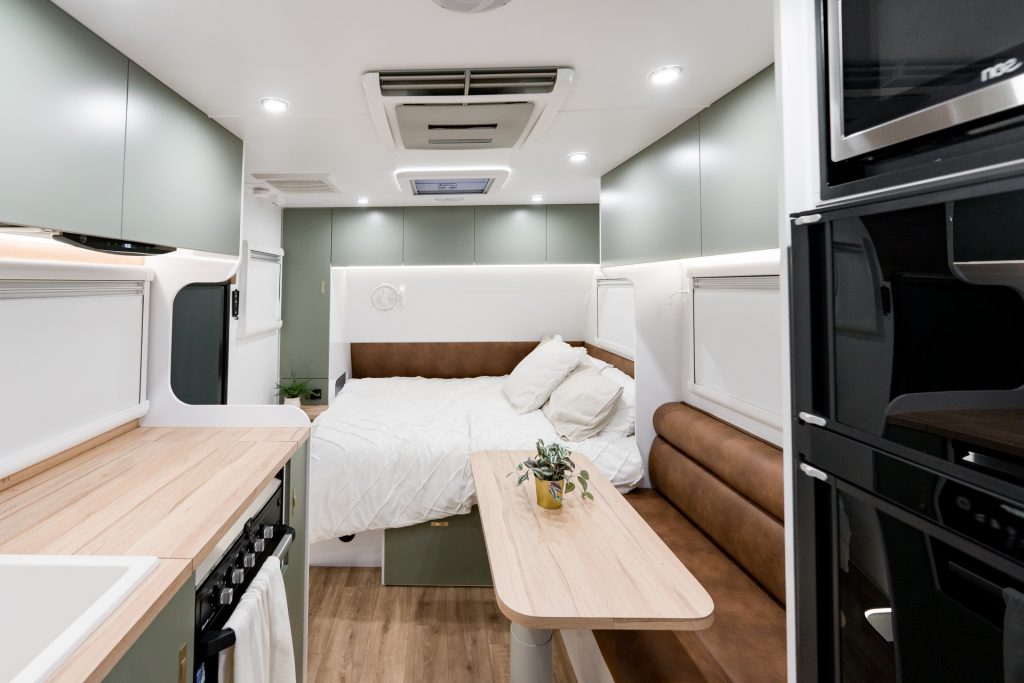

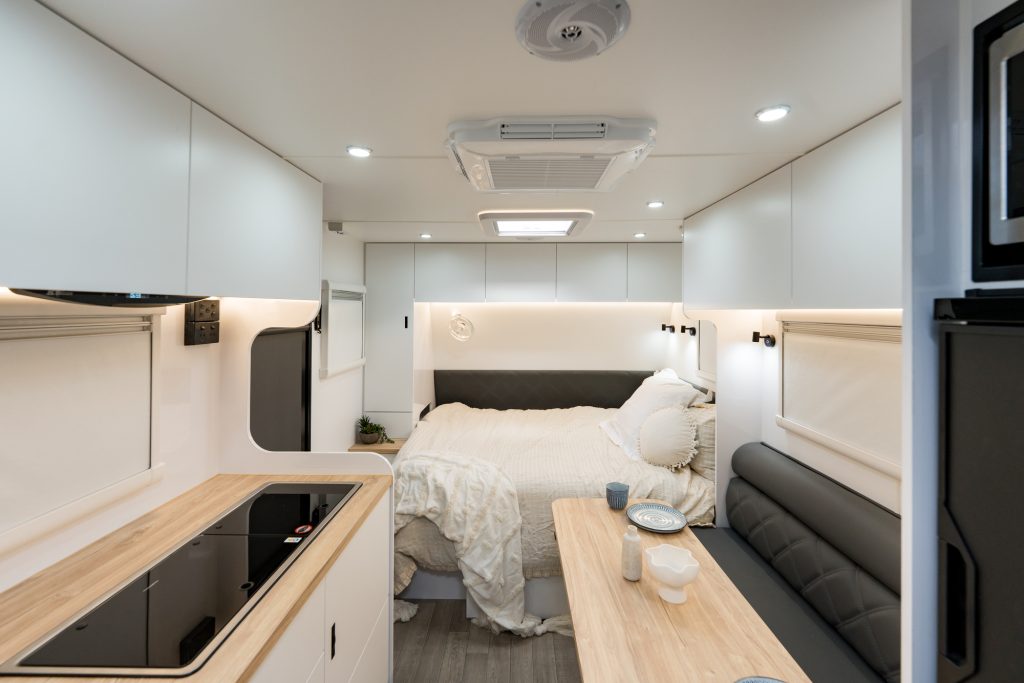

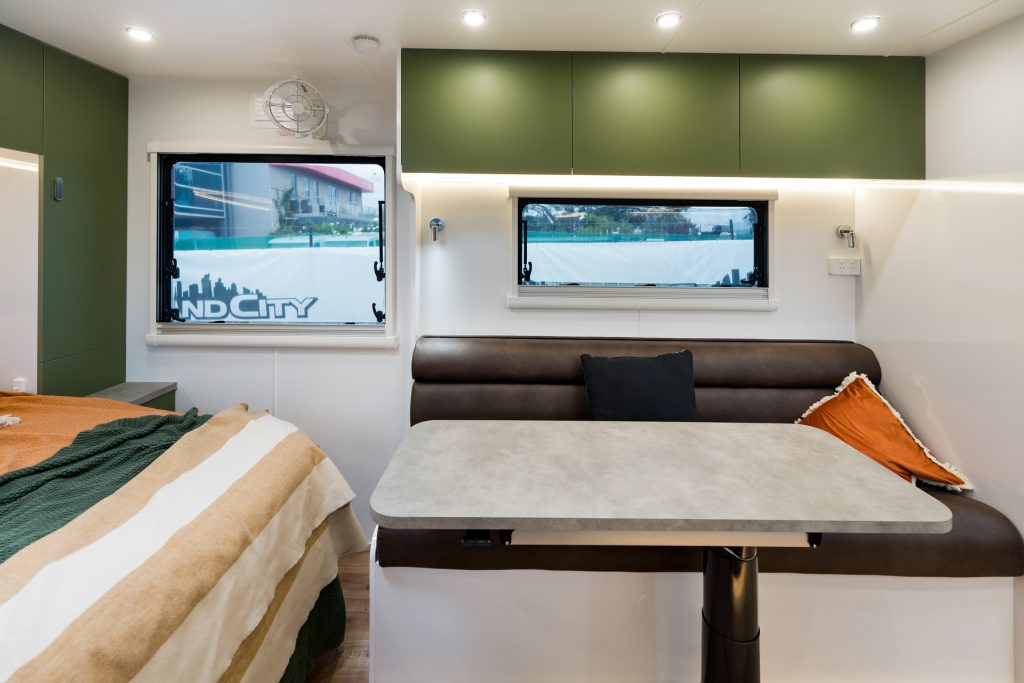

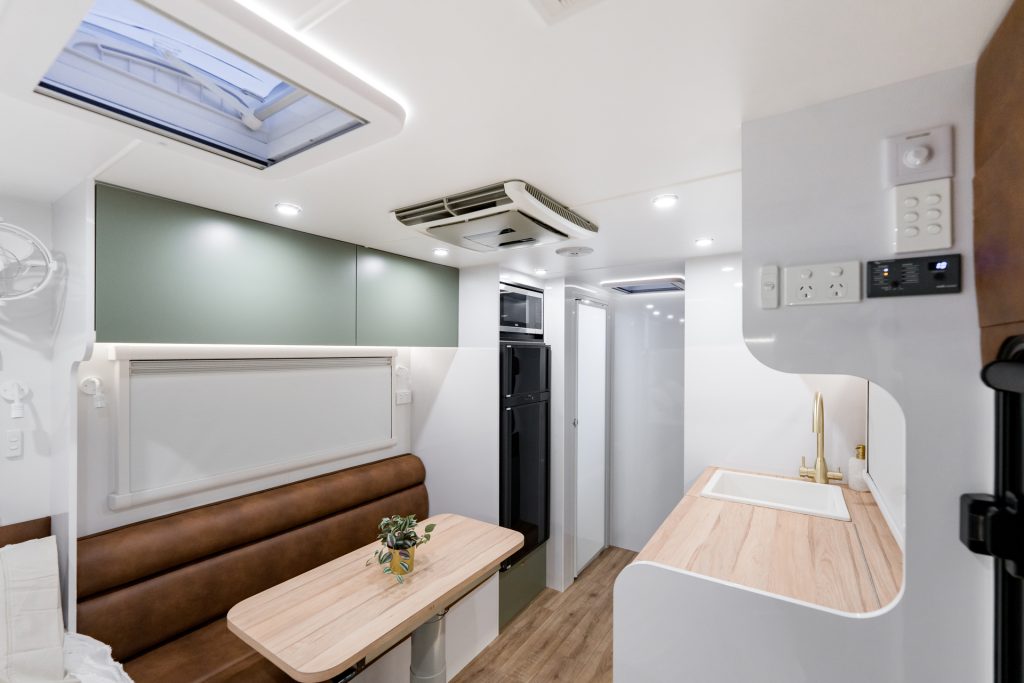

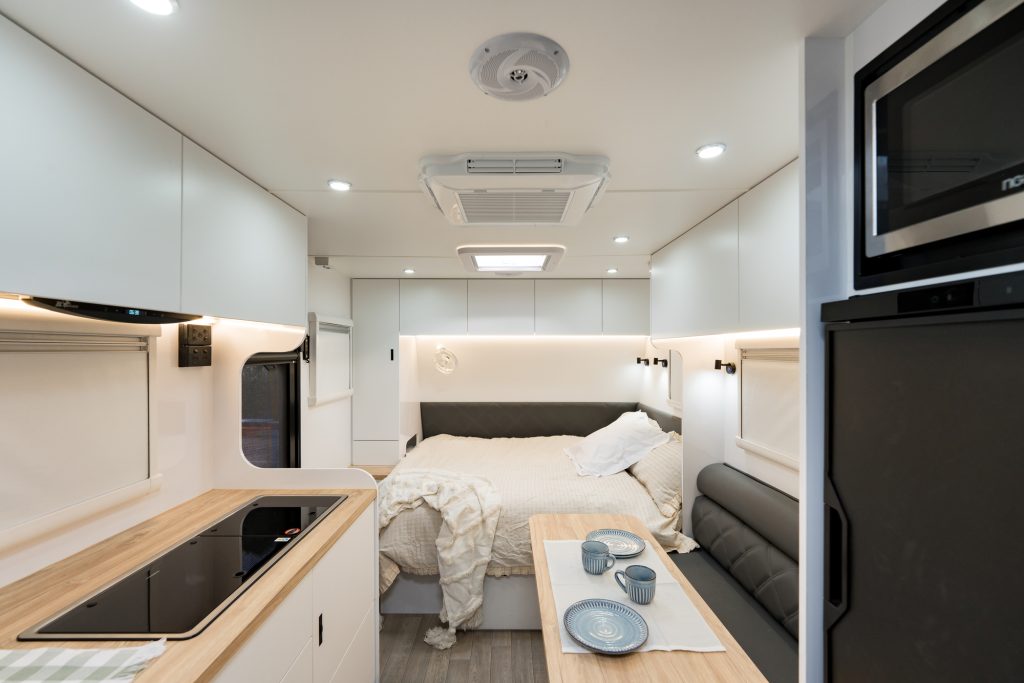

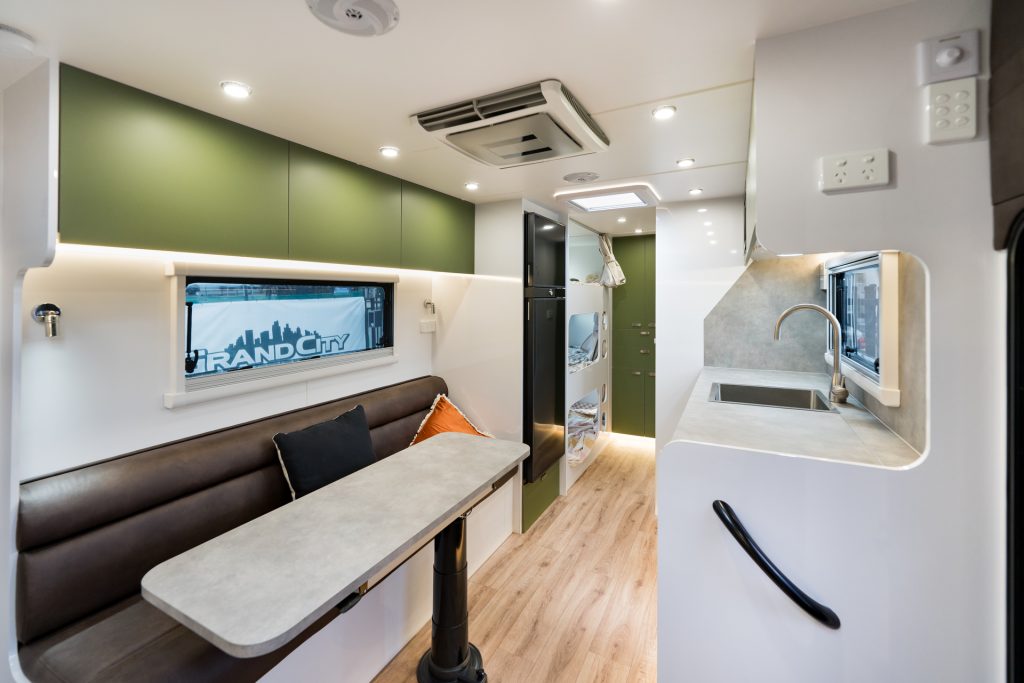

An example of a Grand Caravans internal colour scheme

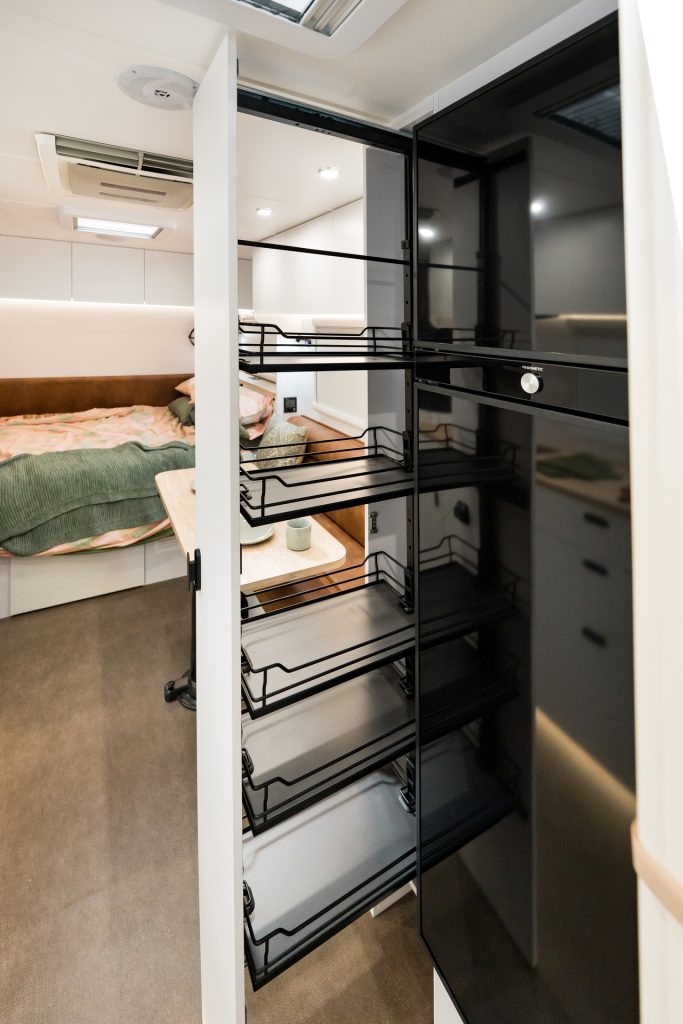

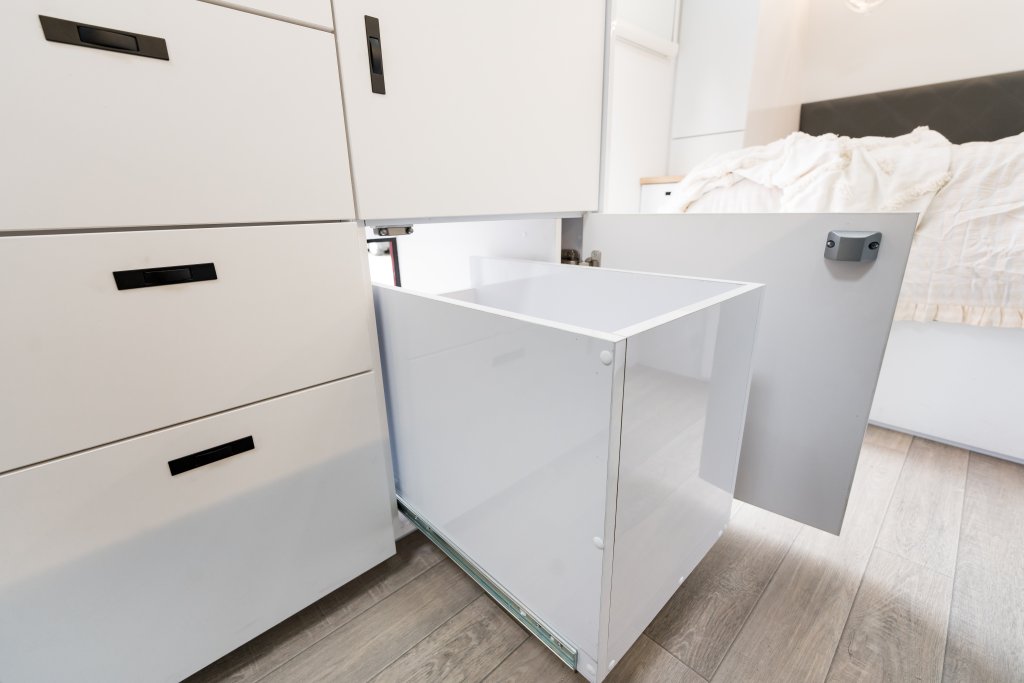

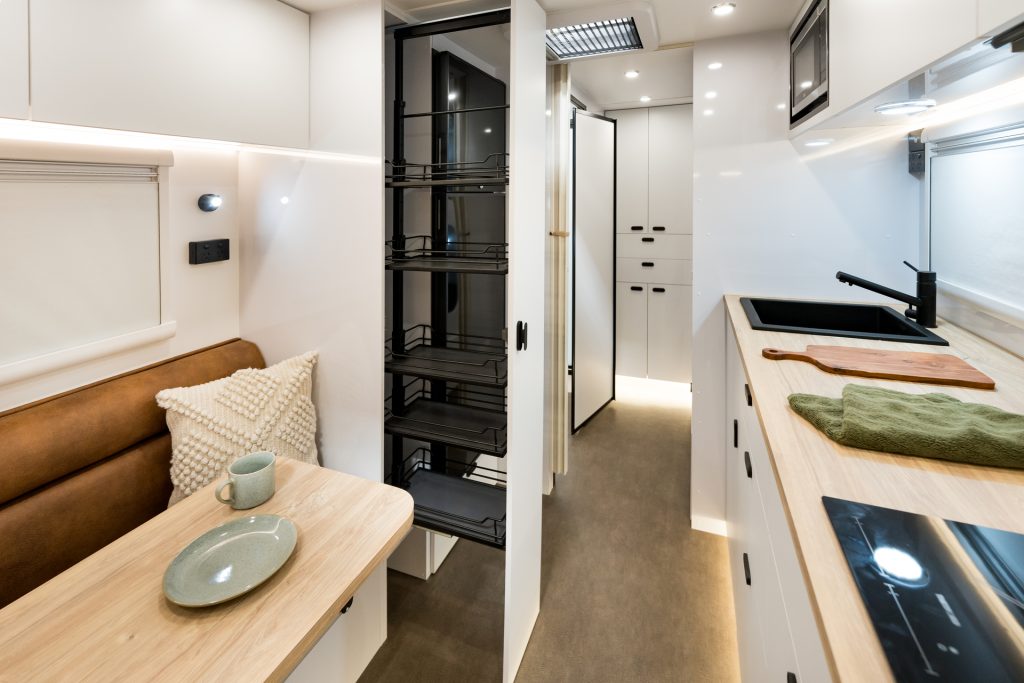

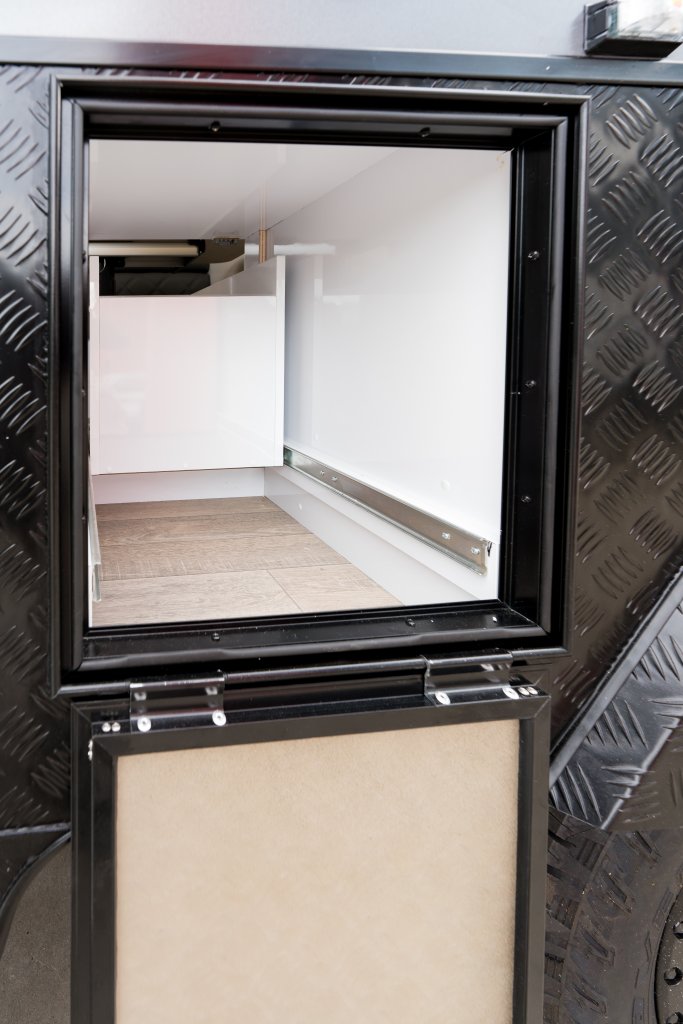

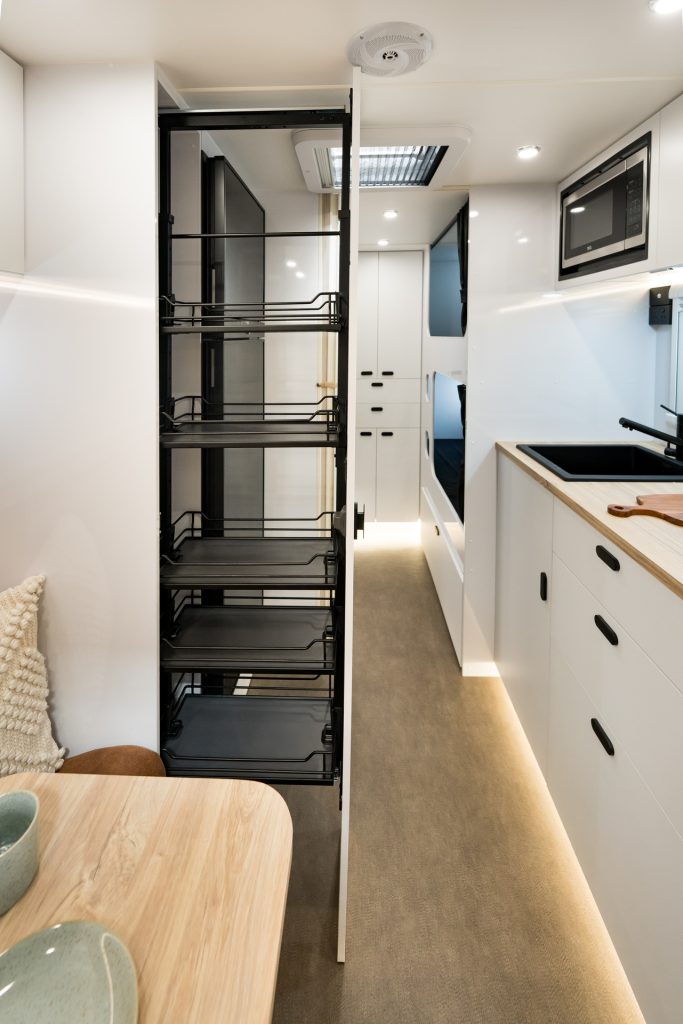

Two way pantry Rack for carvan
Grand Caravans
Grand Caravans
Grand Caravans
Grand Caravans

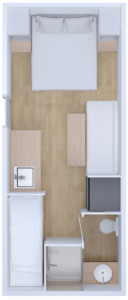

Floorplans

Weights

Tare2213 kg
Ball Weight217 kg
ATM3000 kg
Payload787 kg

Measurements

External Body Length5210 mm
External Width2440 mm
External Height3100 mm
Total Length7610 mm

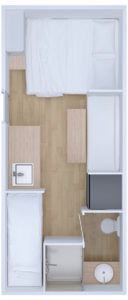

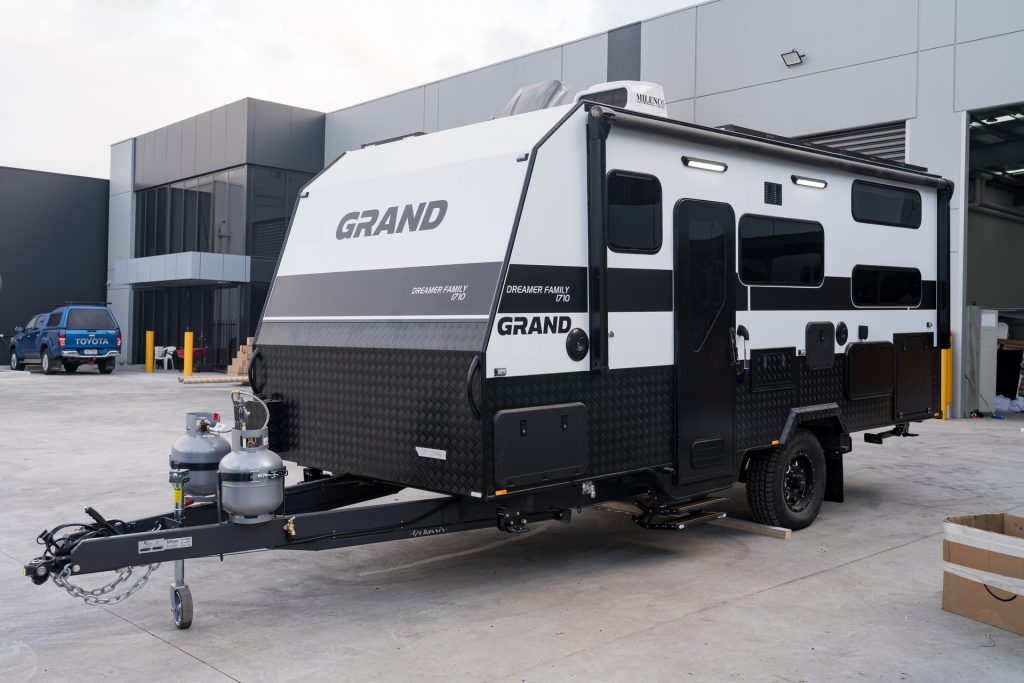

DREAMER FAMILY_17'10_EW

Weights

Tare2370 kg
Ball Weight190 kg
ATM3000 kg
Payload630 kg

Measurements

External Body Length5800 mm
External Width2440 mm
External Height3100 mm
Total Length8200 mm

Weights

Tare2781 kg
Ball Weight220 kg
ATM3200 kg
Payload419 kg

Measurements

External Body Length6100 mm
External Width2440 mm
External Height3100 mm
Total Length8500 mm

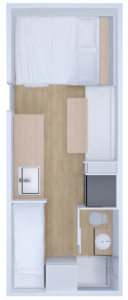

20’ Centre Door straight

Weights

Tare3100 kg
Ball Weight198 kg
ATM3500 kg
Payload600 kg

Measurements

External Body Length mm
External Width mm
External Height mm
Total Length mm

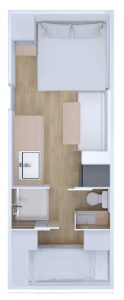

Floorplan for the Grand Caravans Dreamer Family 21' Rear Bunk, Center Ensuite model

Weights

Tare2612 kg
Ball Weight230 kg
ATM3200 kg
Payload588 kg

Measurements

External Body Length6580 mm
External Width2440 mm
External Height3100 mm
Total Length8980 mm

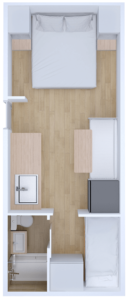

21’6 Centre Door straight

Weights

Tare2612 kg
Ball Weight230 kg
ATM3200 kg
Payload588 kg

Measurements

External Body Length6580 mm
External Width2440 mm
External Height3100 mm
Total Length8980 mm

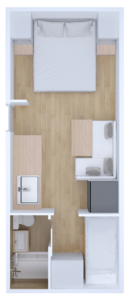

21’6 Centre Door L shape

Weights

Tare2650 kg
Ball Weight200 kg
ATM3200 kg
Payload550 kg

Measurements

External Body Length6710 mm
External Width2440 mm
External Height3100 mm
Total Length9110 mm

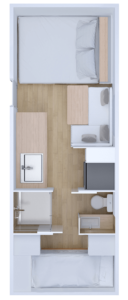

22’ Centre Door L shape

Why Grand Caravans

Composite built

Fibreglass composite construction throughout. No timber, no rust, no rot. Built to last a lifetime in Australian conditions.

Family owned

We are a proudly family owned and operated business. When you buy a Grand you deal directly with the people who build it.

Custom built

Every Grand is built to order around your lifestyle. Your floor plan, your finishes, your way of travelling.

Australian Made

Handbuilt in Craigieburn, Victoria using Australian steel and locally sourced materials. Every van, every time.

Premium Aftersales

3 Year structural warranty and 2 year Australia wide general warranty.

Off-grid ready

Built for where the road ends. Solar, lithium, diesel heating and composting systems designed for serious off grid travel.

Want to see how a Grand Caravan is built?

Book a Factory Tour! Come behind the scenes and see firsthand what goes into every van we make.

Colour Schemes

We have worked with an interior designer to curate four signature colour boards for 2026. Four distinctly Australian palettes that pair beautifully with the included chrome and black fittings as standard. Option to upgrade your taps and handle finishes to complement your chosen board.

Want to design your own caravan?

Create your dream caravan with our custom caravan design tool.

View the range

Peak

The Peak was built to take you further and keep you out there longer. Wherever the road ends, the Peak is just getting started. With coil suspension built for Australia’s toughest tracks, a full Victron electrical system, six hundred watts of solar, and 450 amp hours of lithium power, you can park up somewhere incredible and stay as long as you like. Hydronic diesel heating, reverse cycle air conditioning, a compressor fridge, induction cooktops, and a washing machine mean life on the road looks a lot like life at home, just with a much better view.

Vent Free

Diesel Hydronic Hot Water System

Battery

450AH Lithium

Suspension

Cruisemaster XT Coil

Solar

600W
The Grand Caravans Peak model set against a white background
The Grand Caravans Halo model set against a white background

Halo

Introducing our composite range. A lightweight, off-road caravan built for serious adventure. It’s designed to handle tough terrain while keeping you connected and comfortable wherever you go.

Battery

225AH Lithium

Suspension

Teko Tuff Ride Coil

Solar

400W
