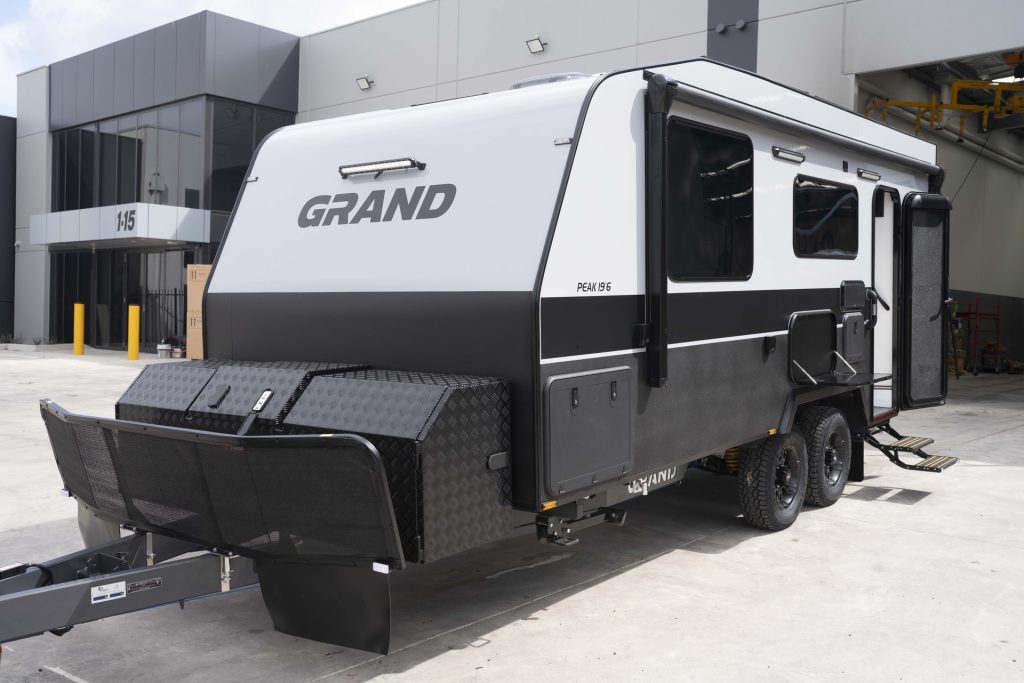

Peak

Vent Free

Diesel Hydronic Hot Water System

Battery

450AH Lithium

Suspension

Off-grid

Solar

600W

Starting at

$119, 990

for the 19'6

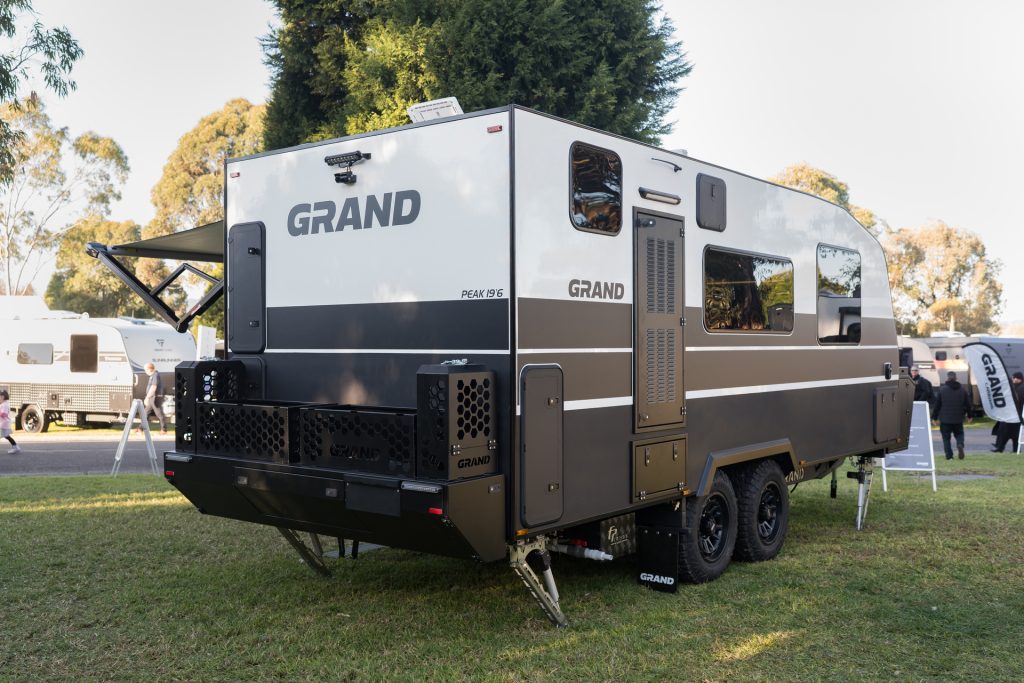

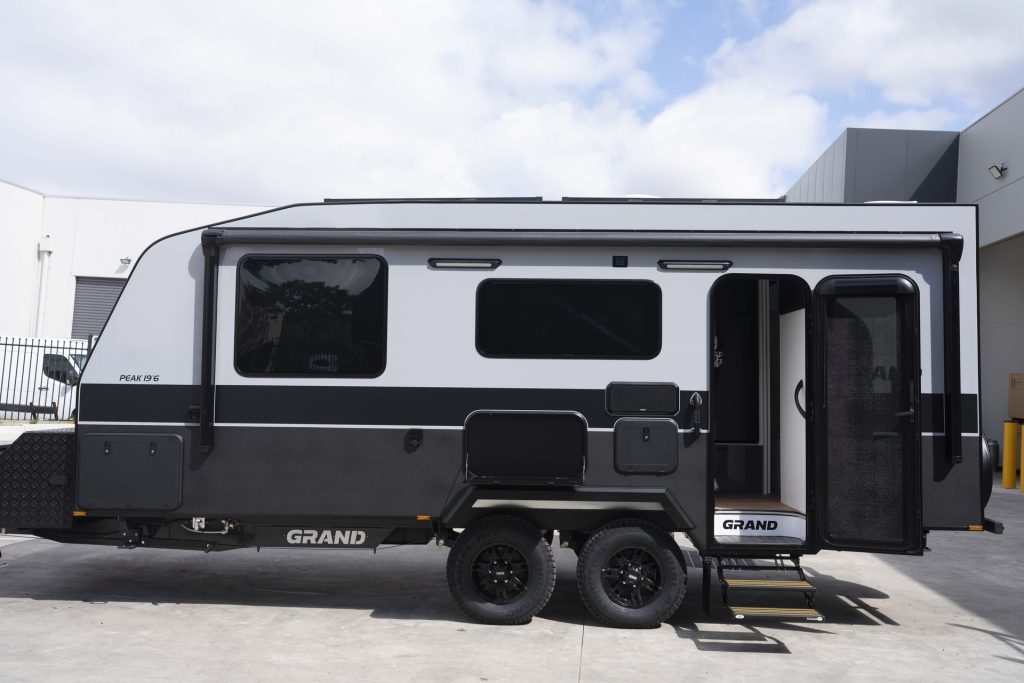

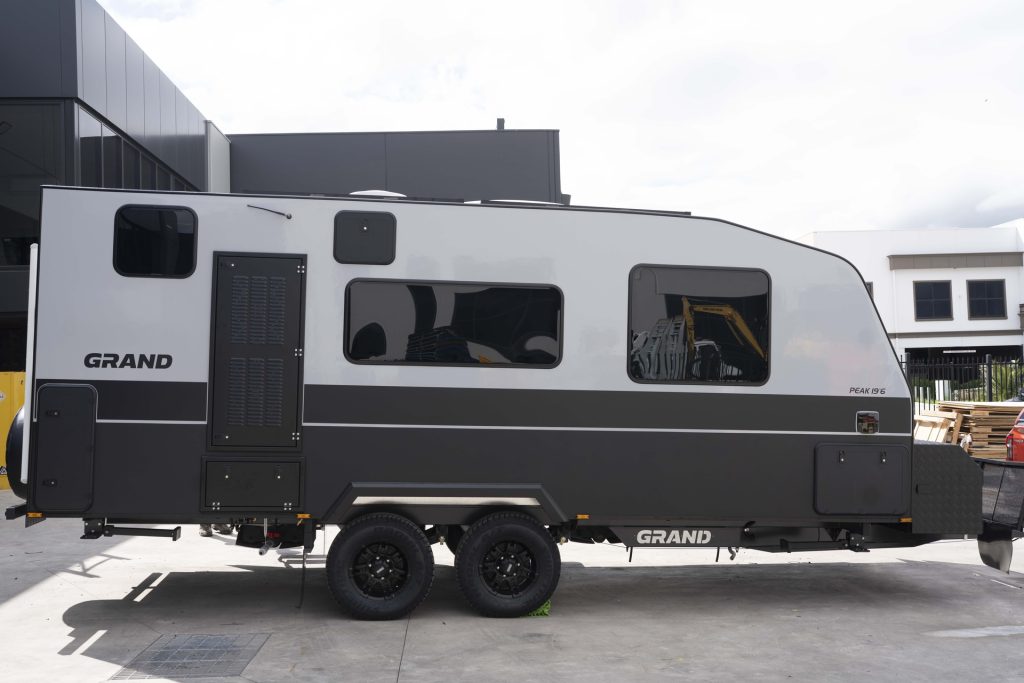

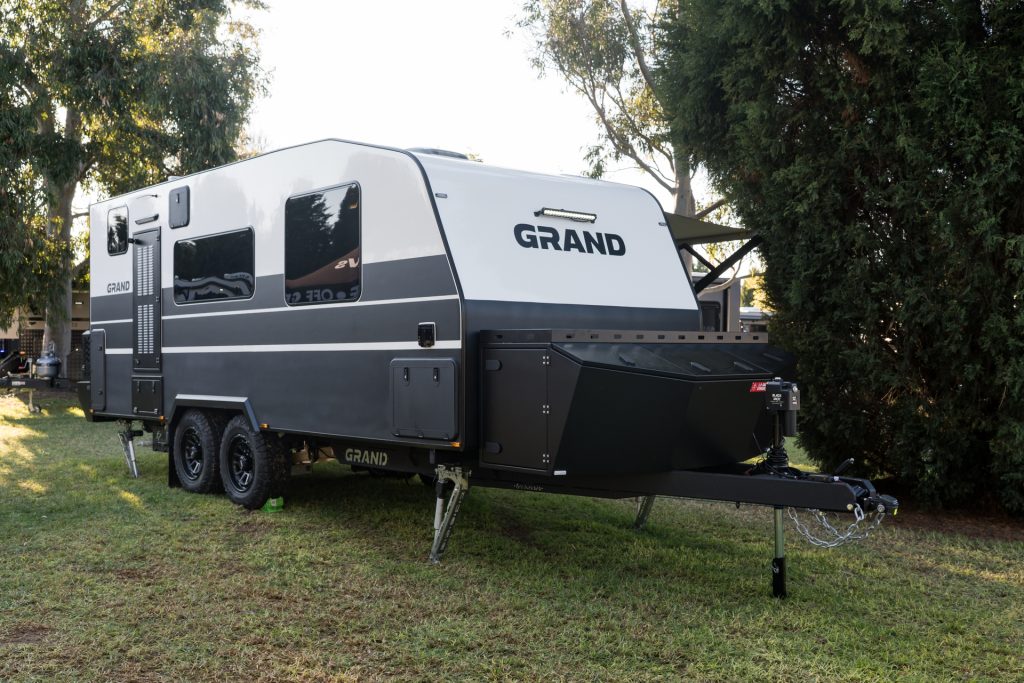

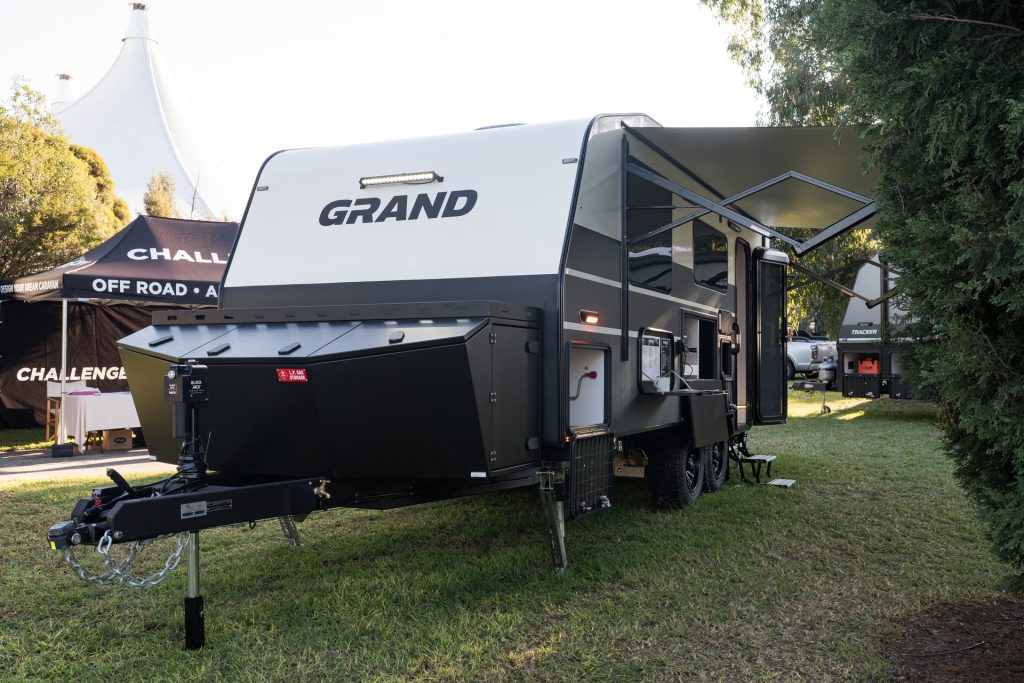

The Peak was built to take you further and keep you out there longer. Wherever the road ends, the Peak is just getting started. With coil suspension built for Australia’s toughest tracks, a full Victron electrical system, six hundred watts of solar, and 450 amp hours of lithium power, you can park up somewhere incredible and stay as long as you like. Hydronic diesel heating, reverse cycle air conditioning, a compressor fridge, induction cooktops, and a washing machine mean life on the road looks a lot like life at home, just with a much better view.

Chassis

Built by FP Chassis with Australian Made Steel
AL-KO Electronic Stability Control
Cruisemaster XT Freestyle Coil Suspension (Australian Made)
6 inch Extended A-Frame
One Piece Honeycomb Composite Floor
Cruisemaster DO35
Corner Drop Down Stabiliser Legs
Trail Safe Bluetooth Break-Away Safety System
16 inch Wheels
All Terrain Tyres (265/75/R16)

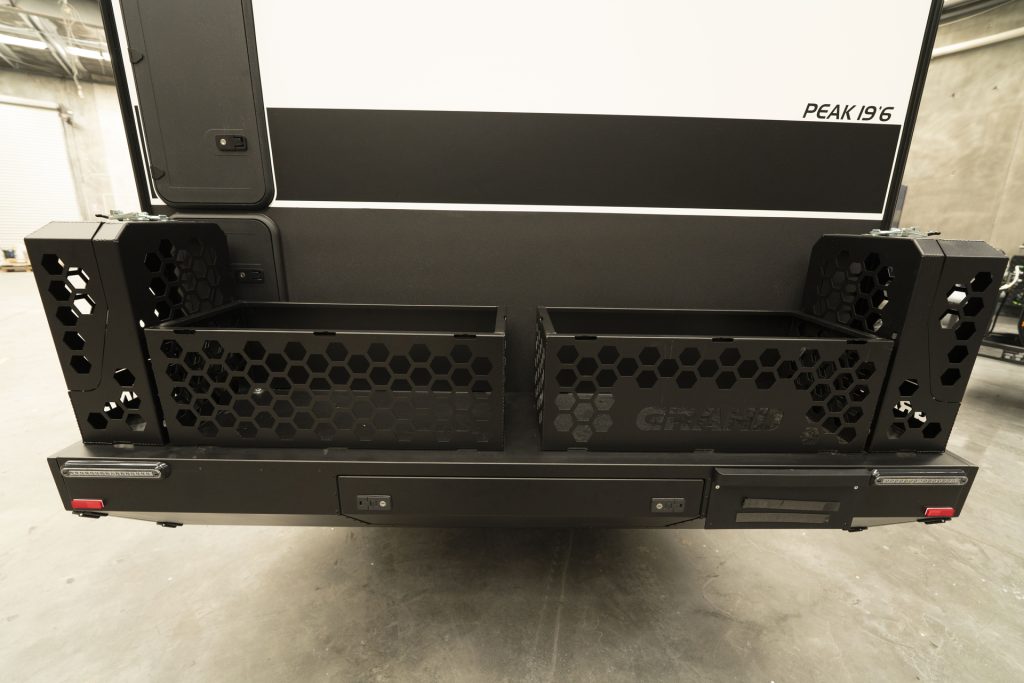

3 Arm Rear Bumper
Kojack Hydraulic Caravan Jack with Wheel Brace

External Features

Fibreglass Composite Sandwich Panel Construction
Large Tri-Lock Entry Door (Midge Proof with Compression Lock)
Illuminated Grab Handle
Double Glazed Flat Aluminium Windows with Flat Block Out Blinds & Flyscreen

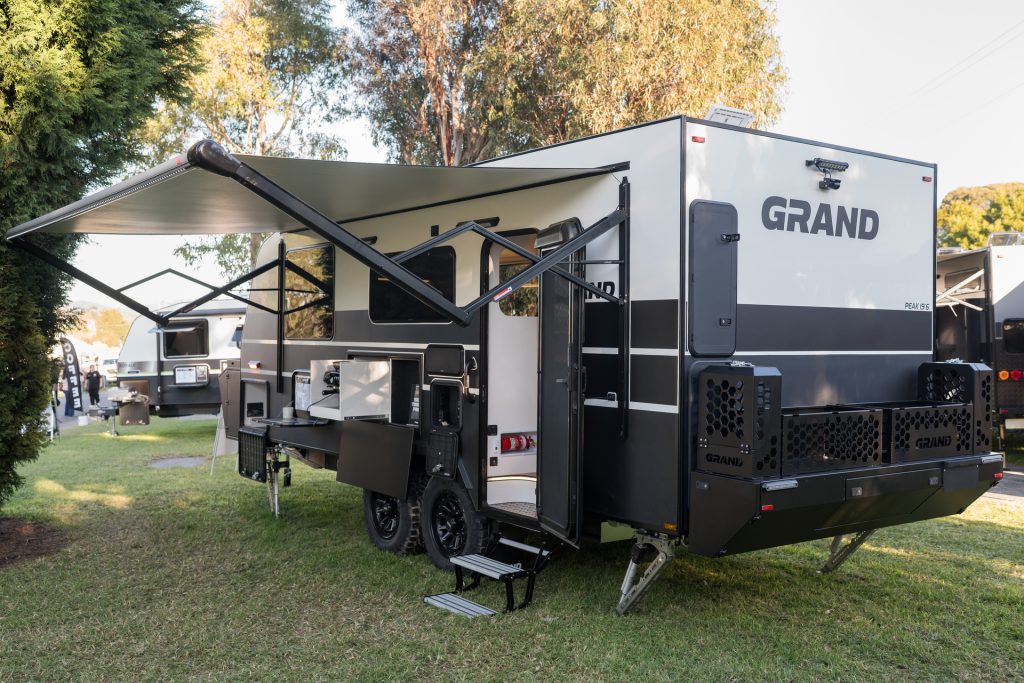

Aussie Traveller Roll Out Awning
Fold Down Picnic Table

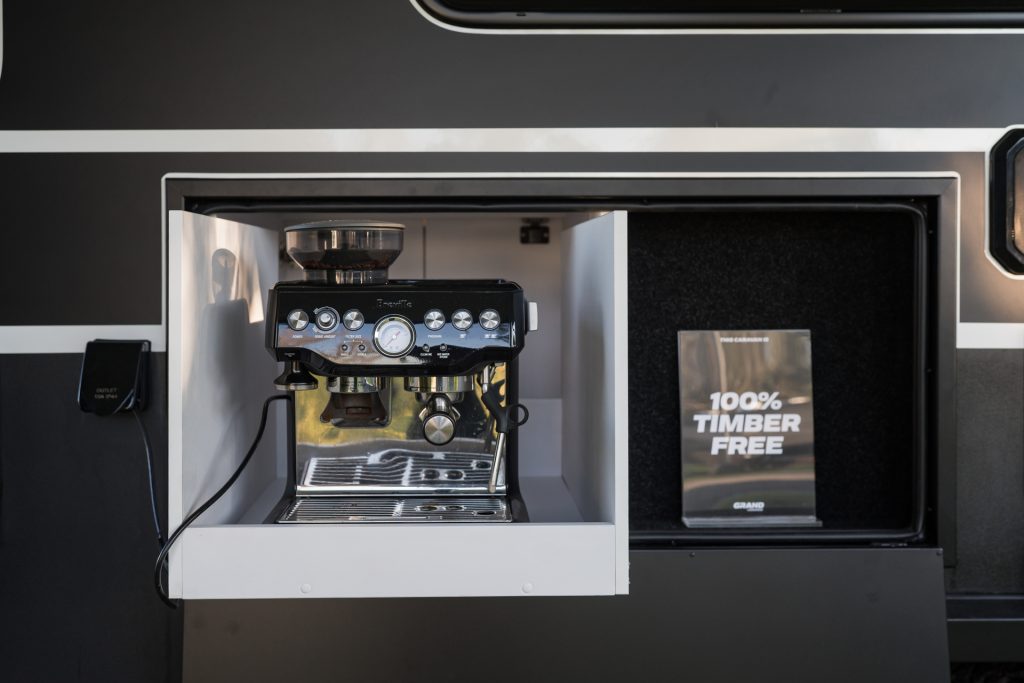

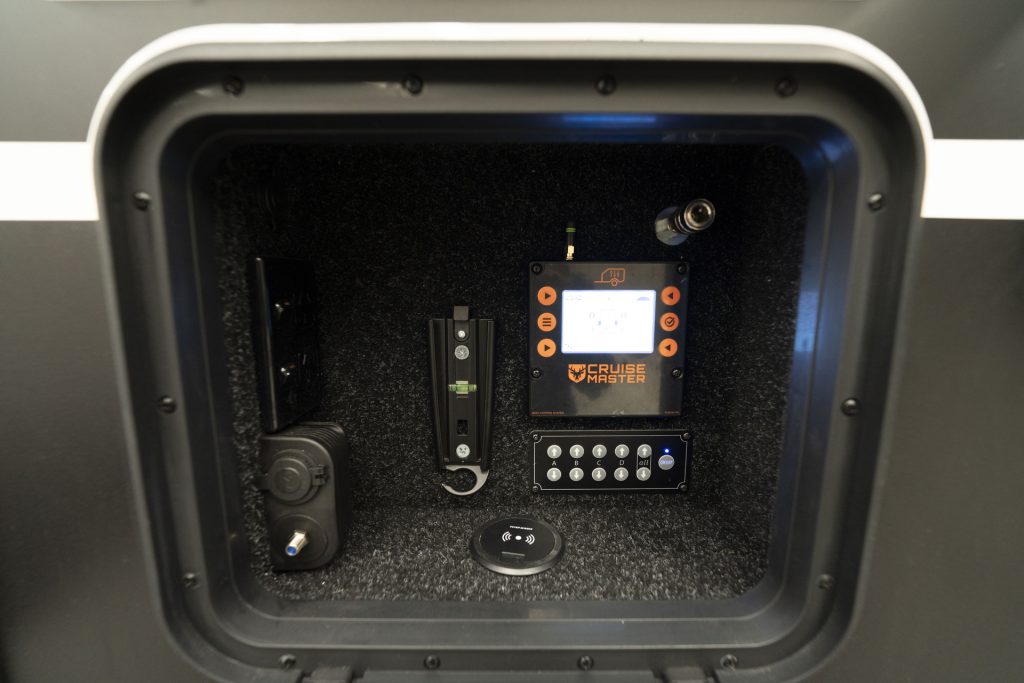

External Entertainment Box
Aluminium Double Pull Out Step
Tunnel Boot with internal lights on both sides

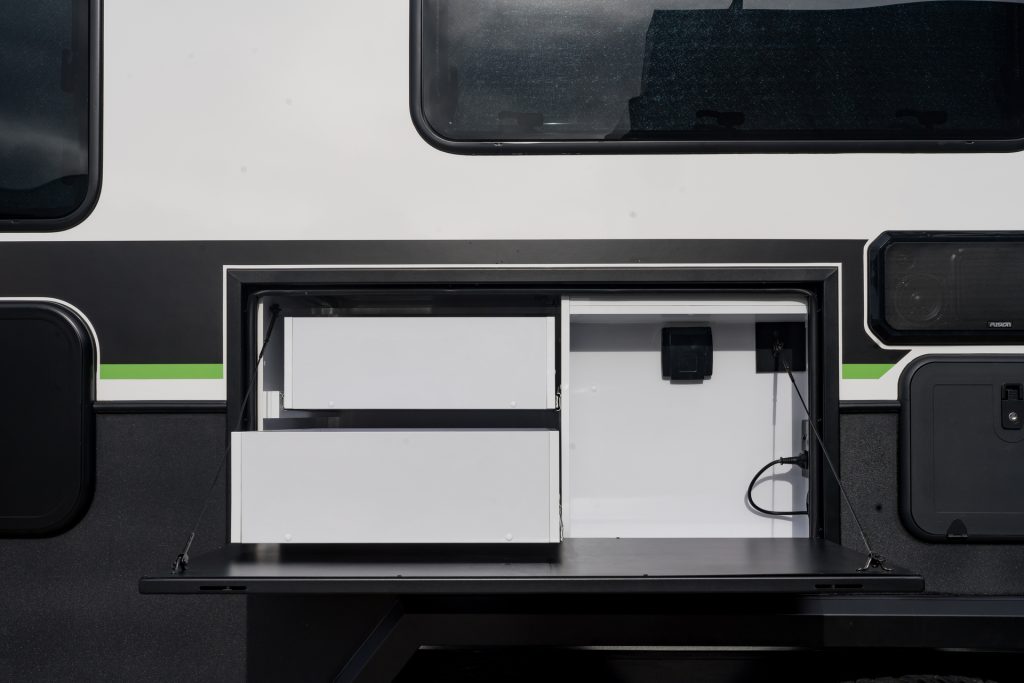

External Pantry with 2 way drawers
Toolbox Ultra Dual Slide Out & Gas Enclosure
2 x Rear Mud Flaps

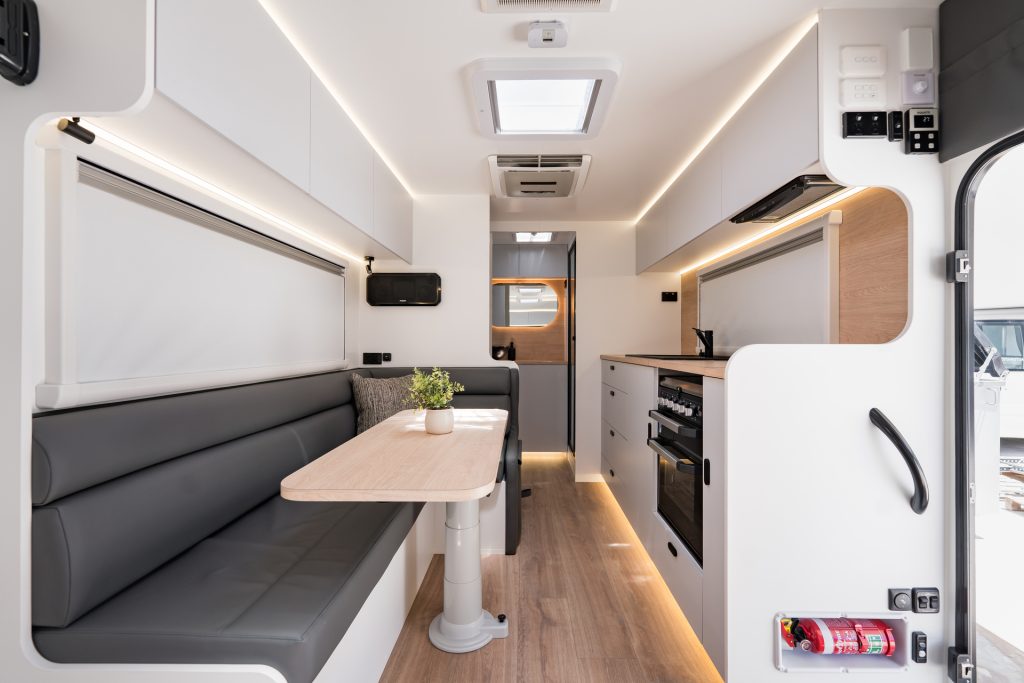

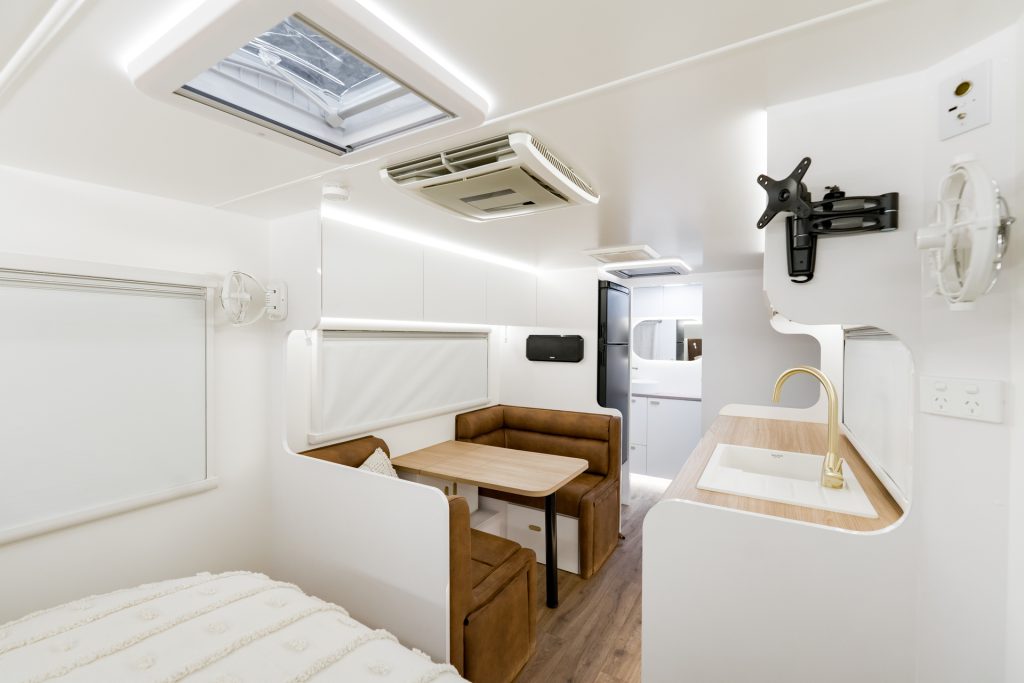

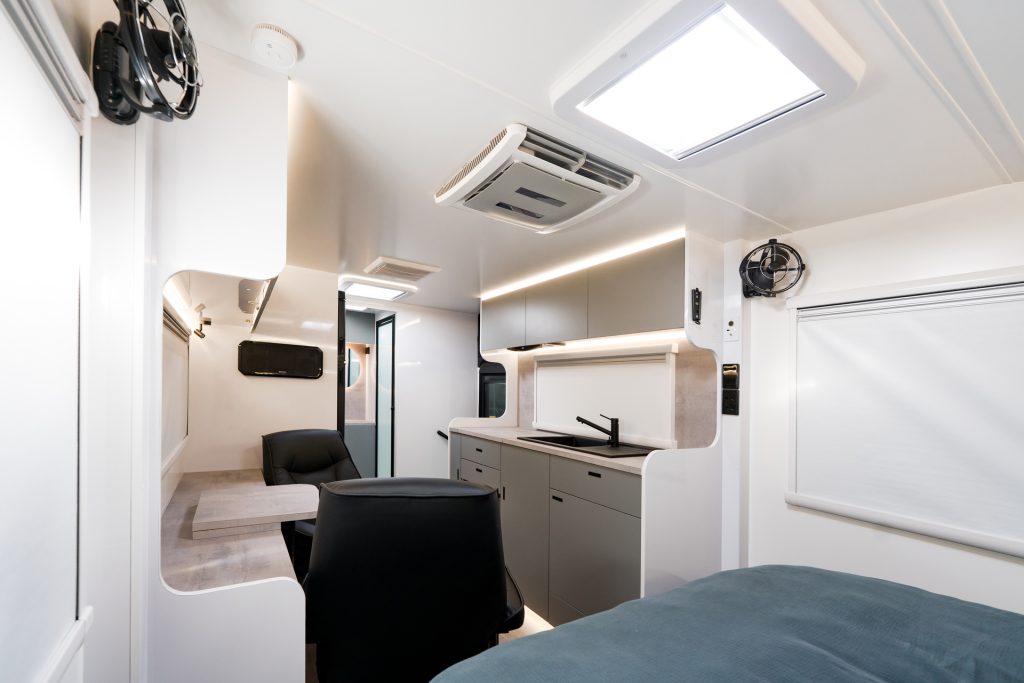

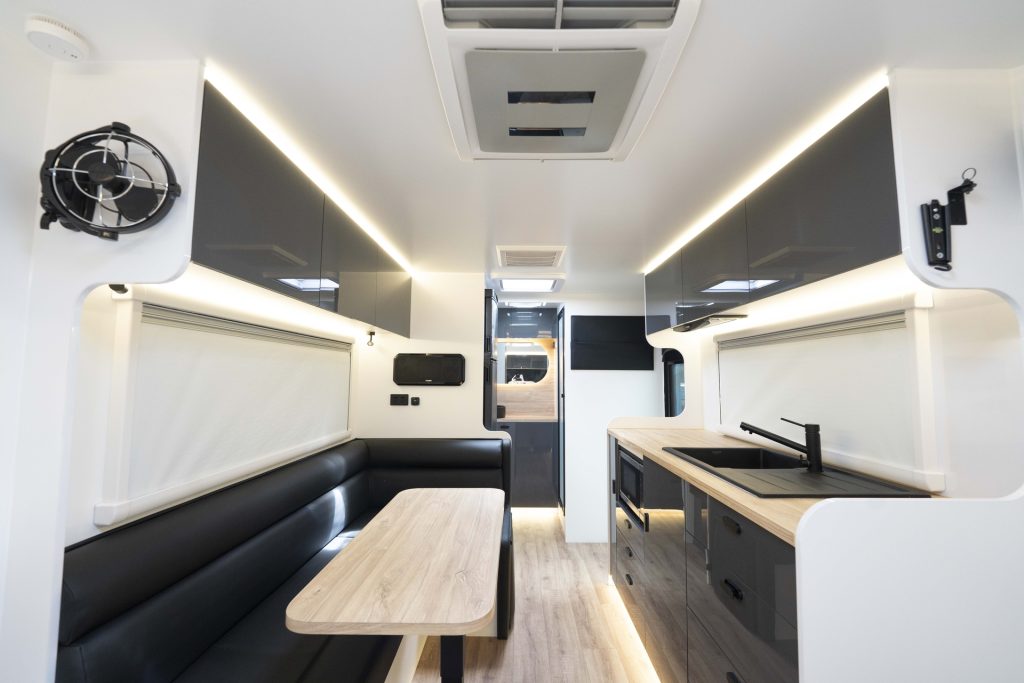

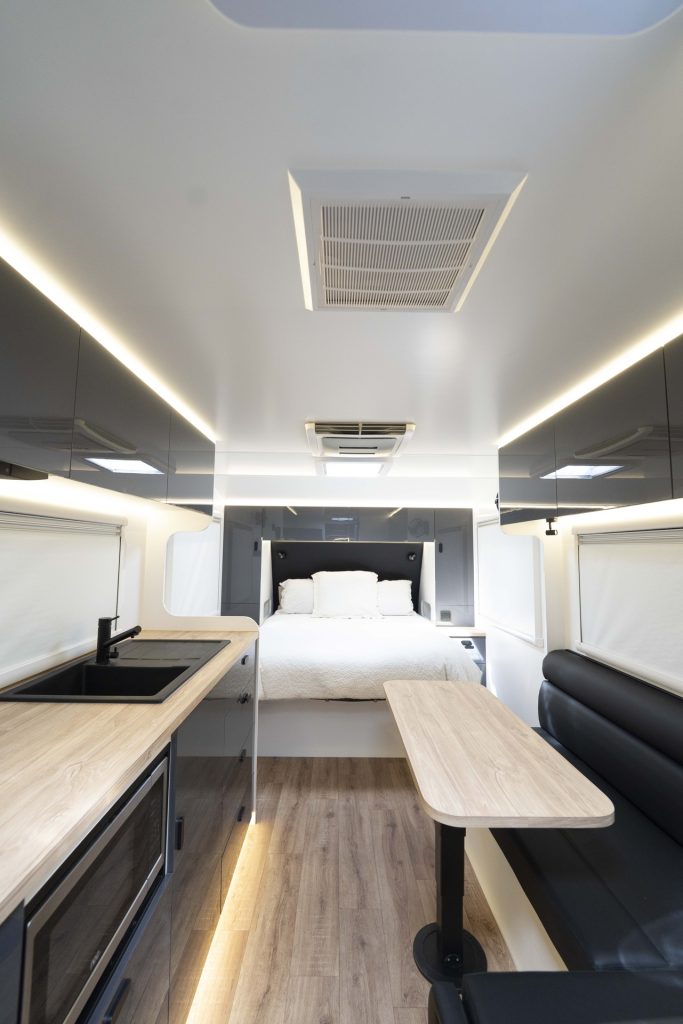

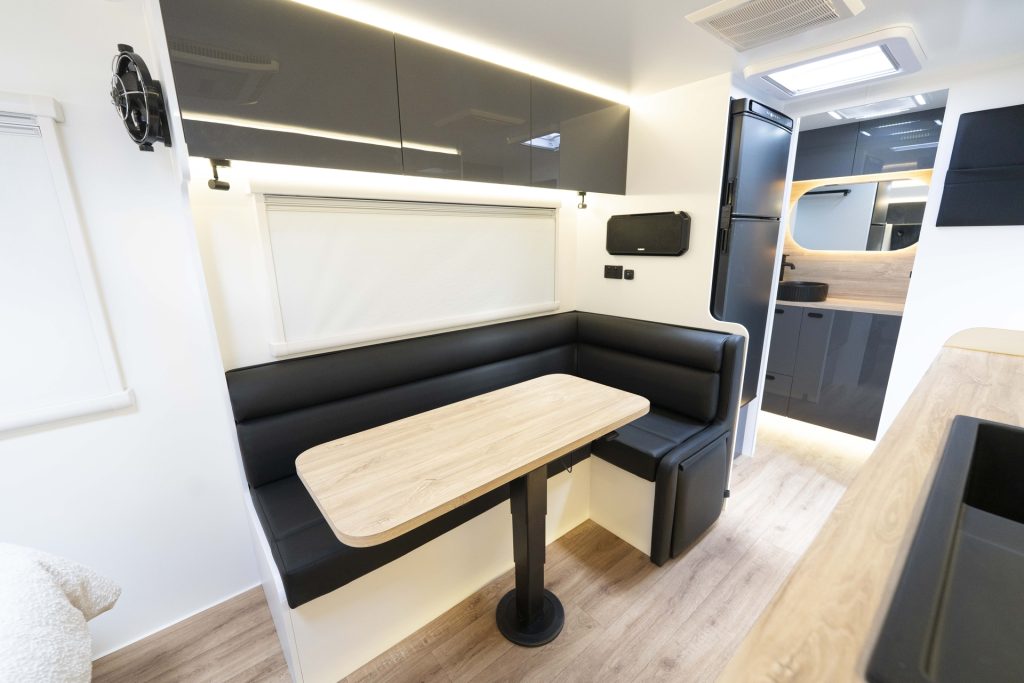

Internal Features

Matte Black Concealed Flush Handles

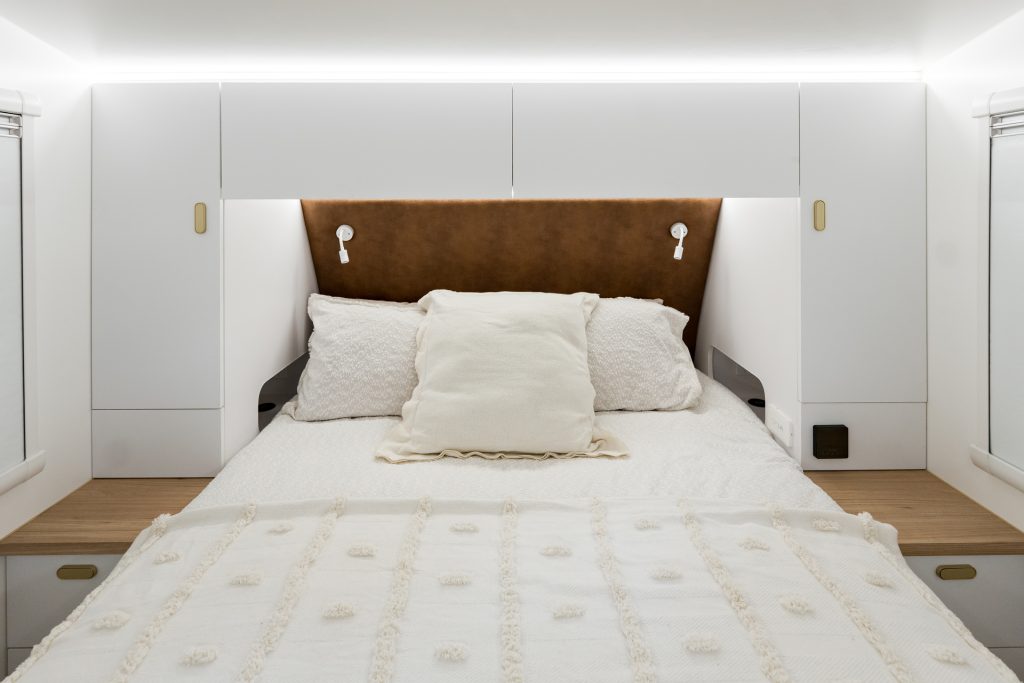

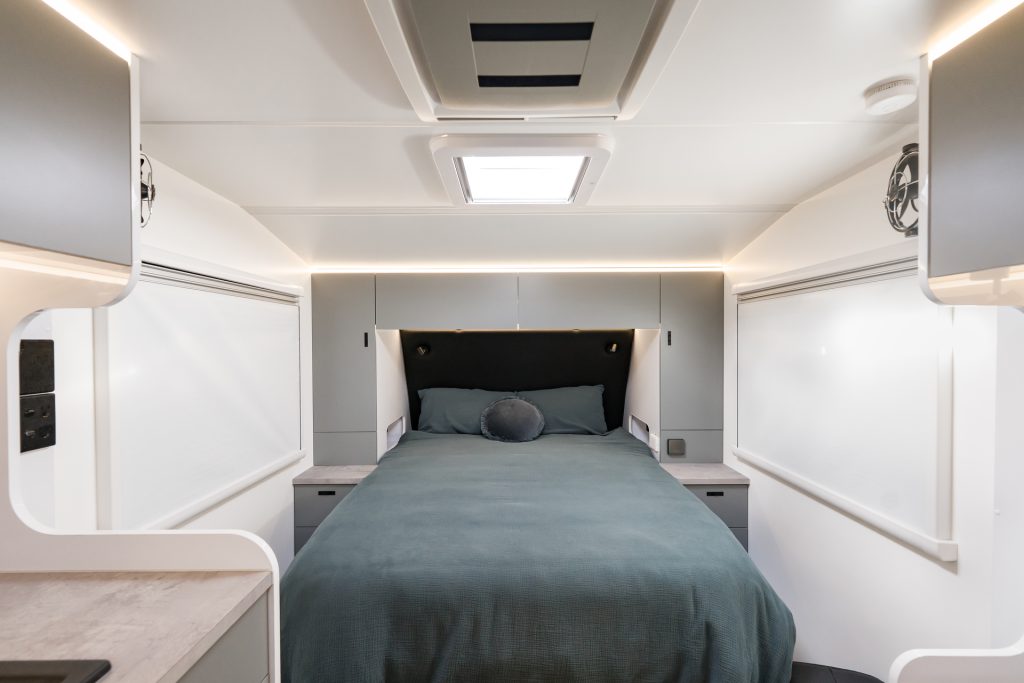

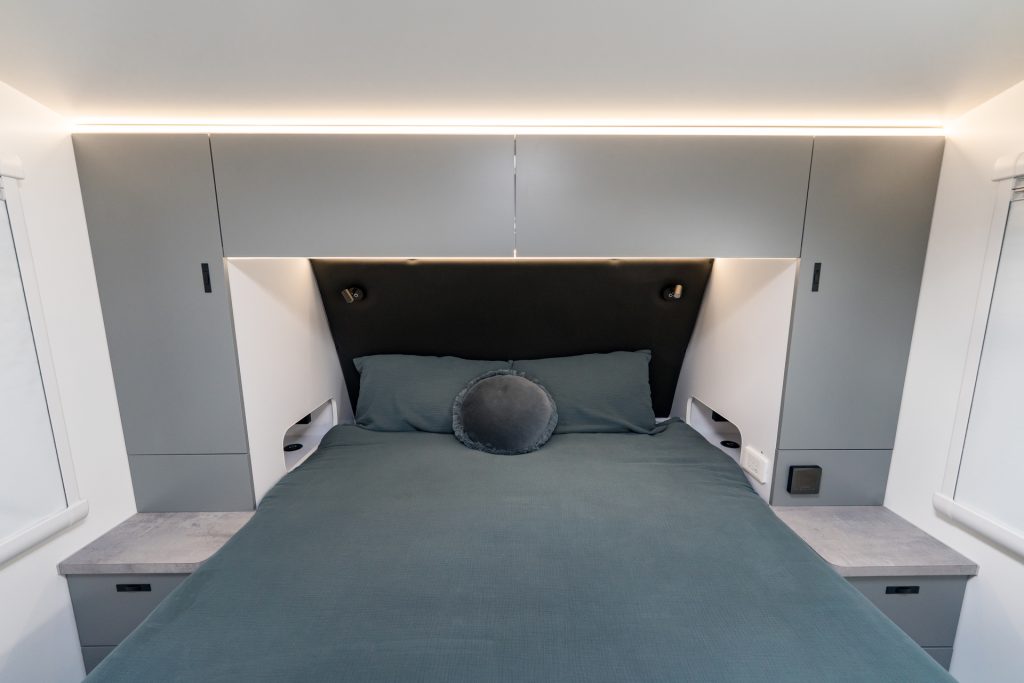

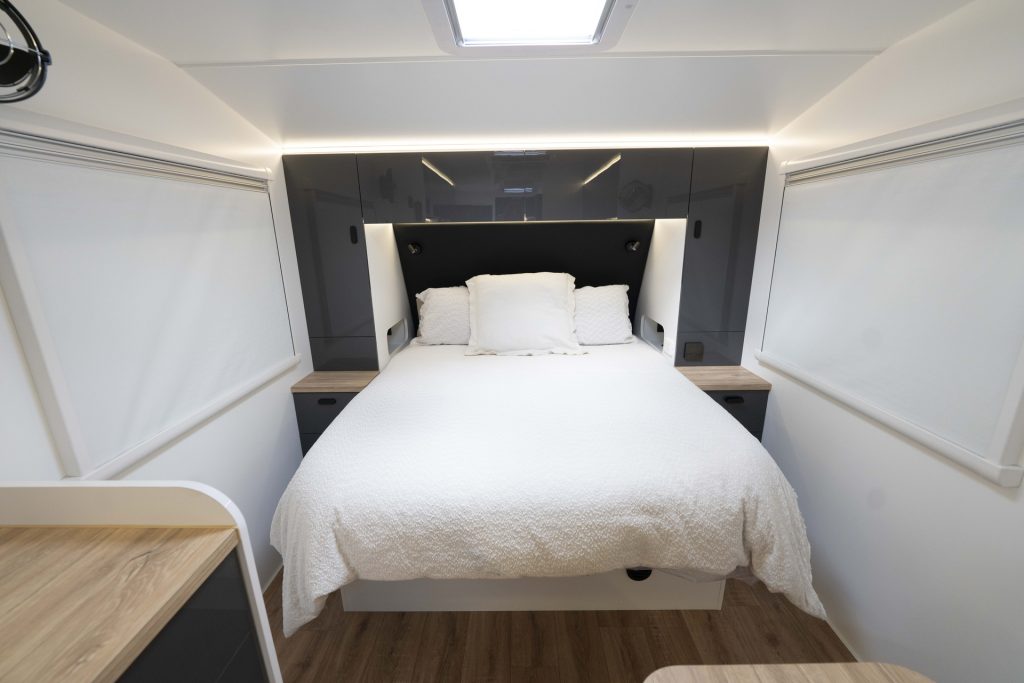

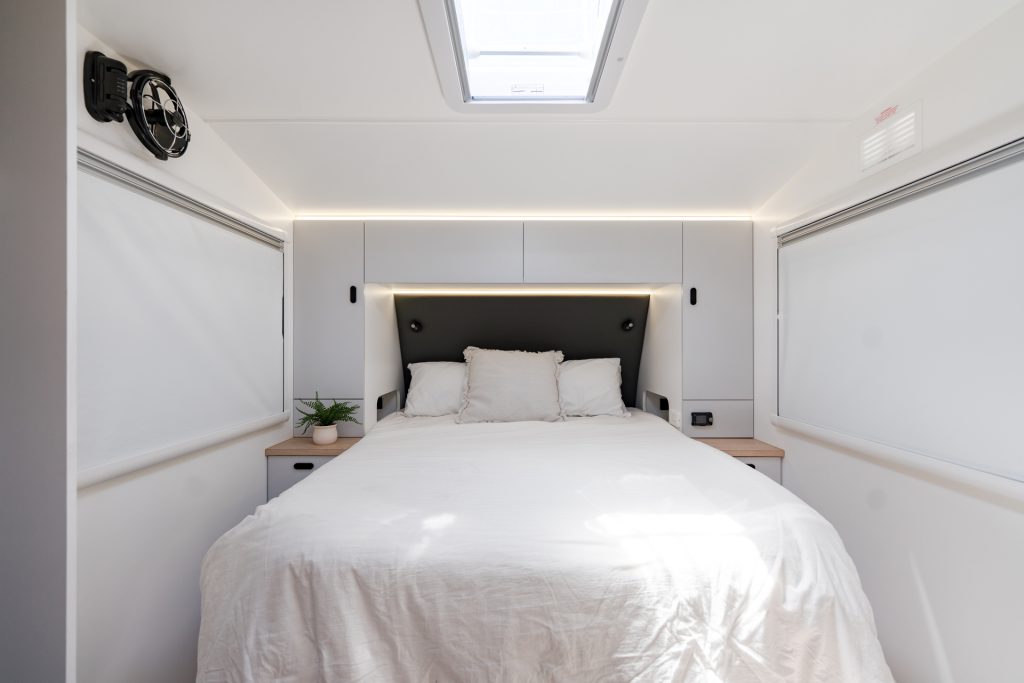

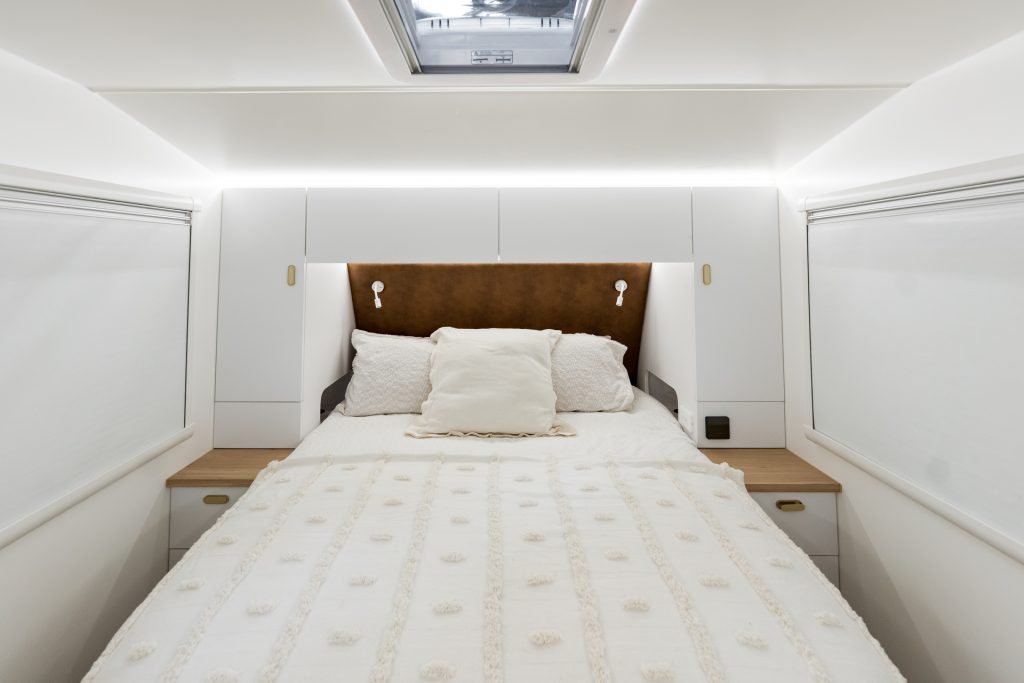

Comfortable Pocket Coil Queen Bed
Full Height Upholstered Bedhead
Pigeon Hole Storage on Bed Sides
Matte Black Bathroom Door Frames

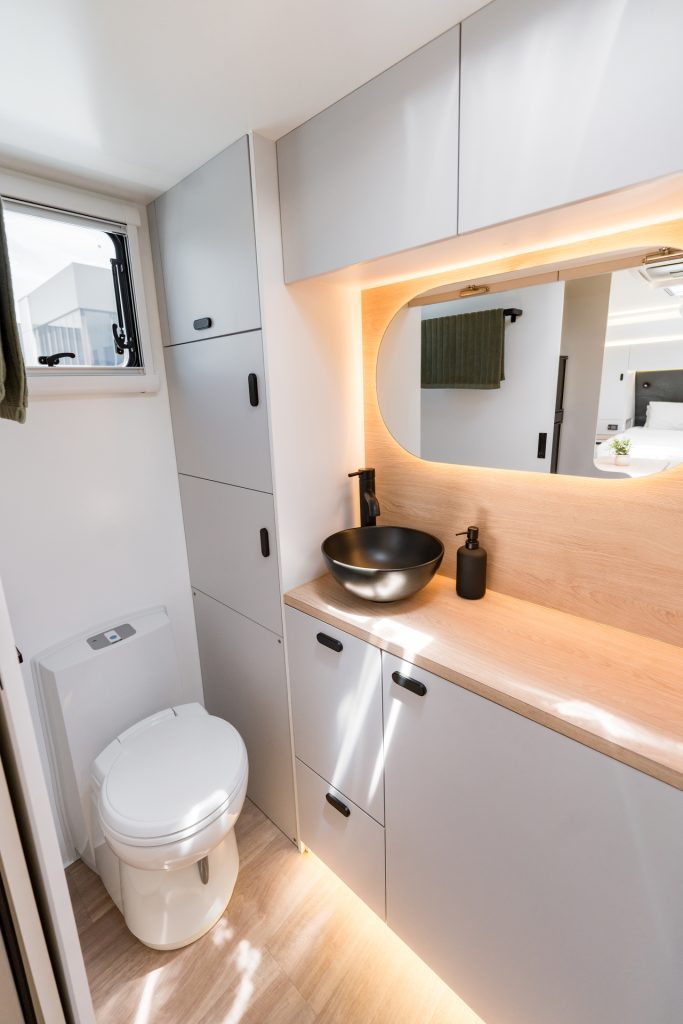

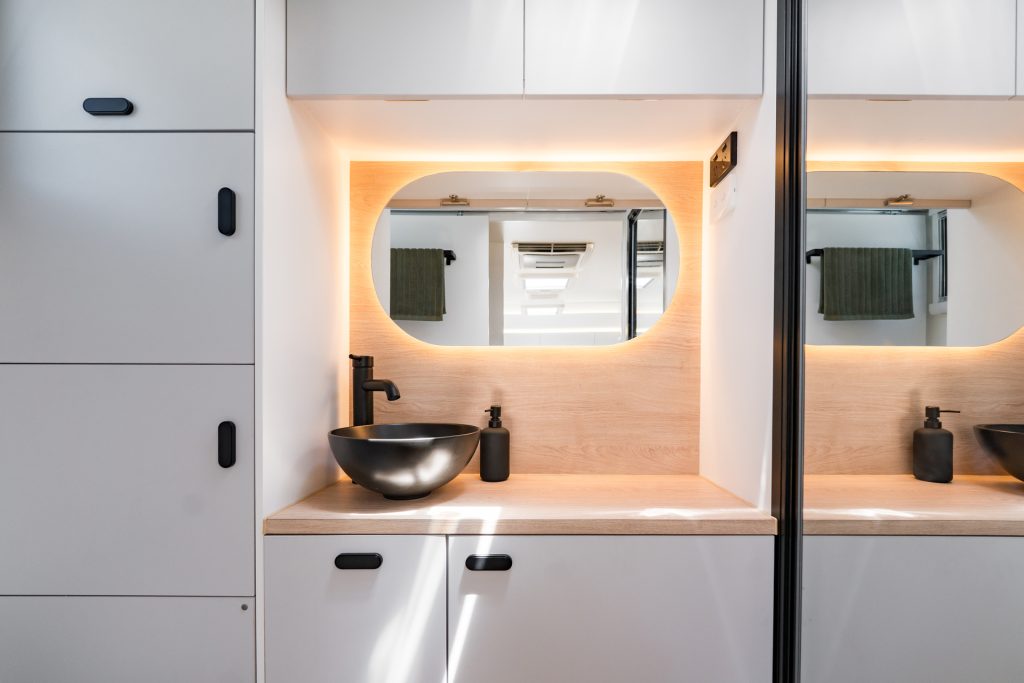

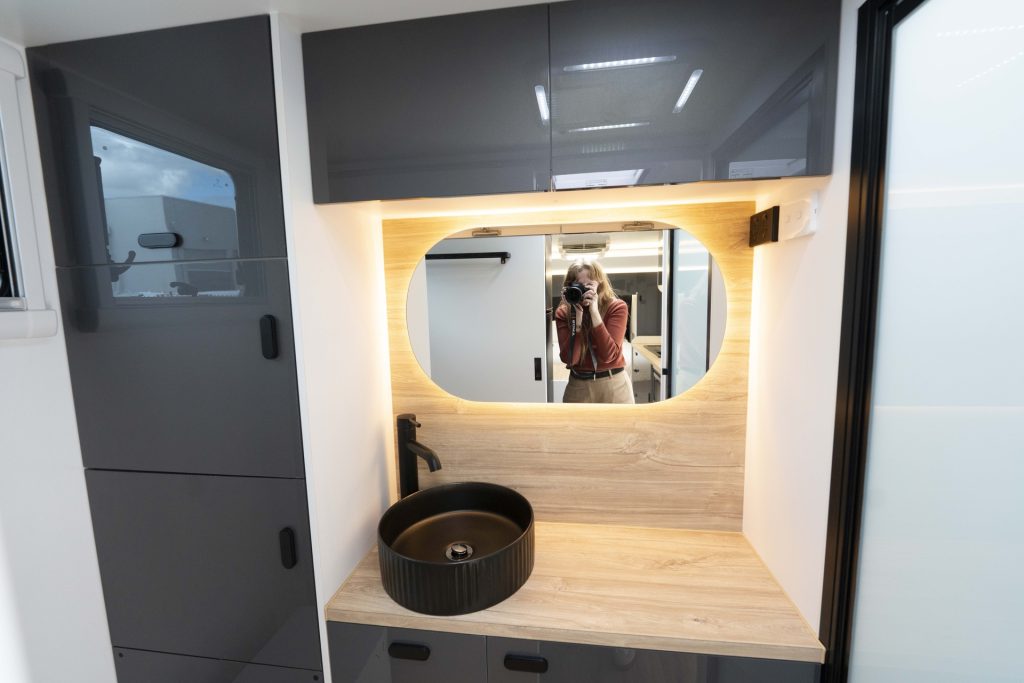

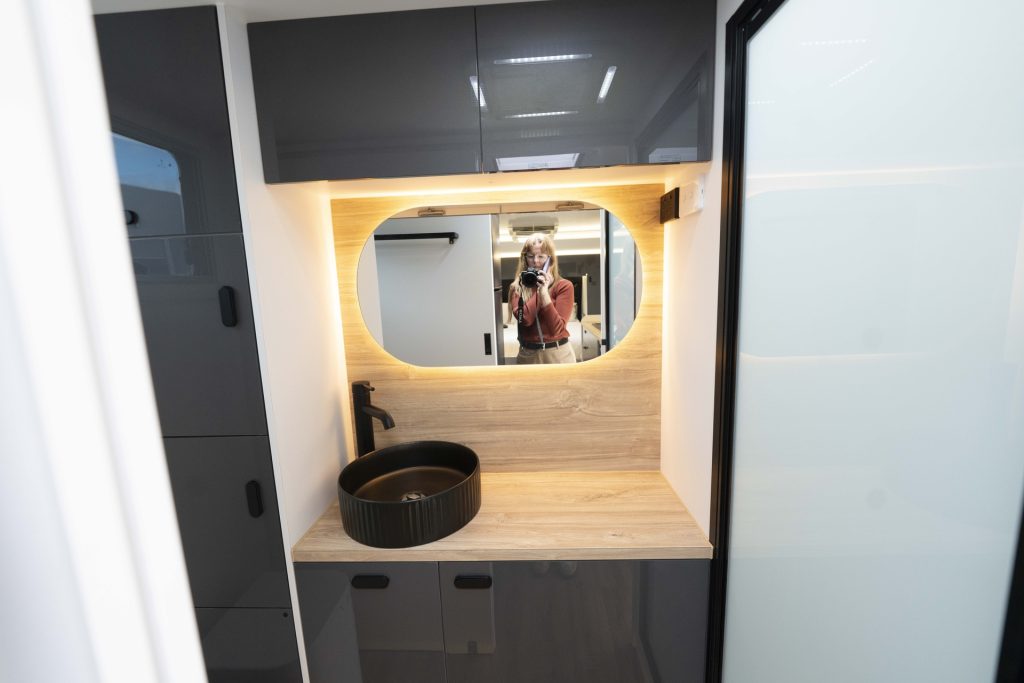

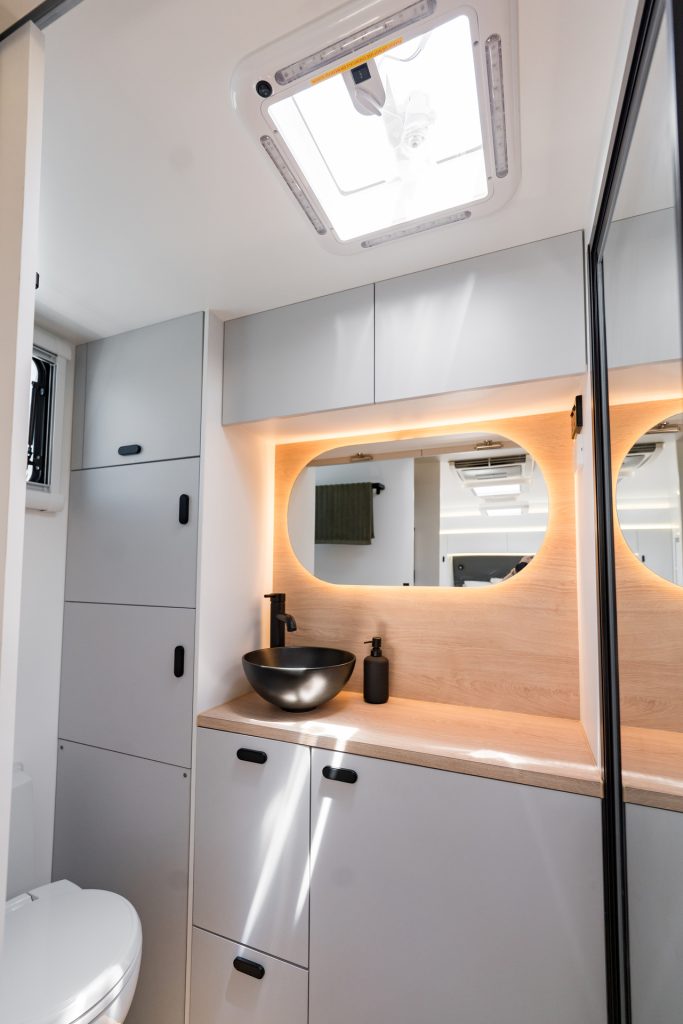

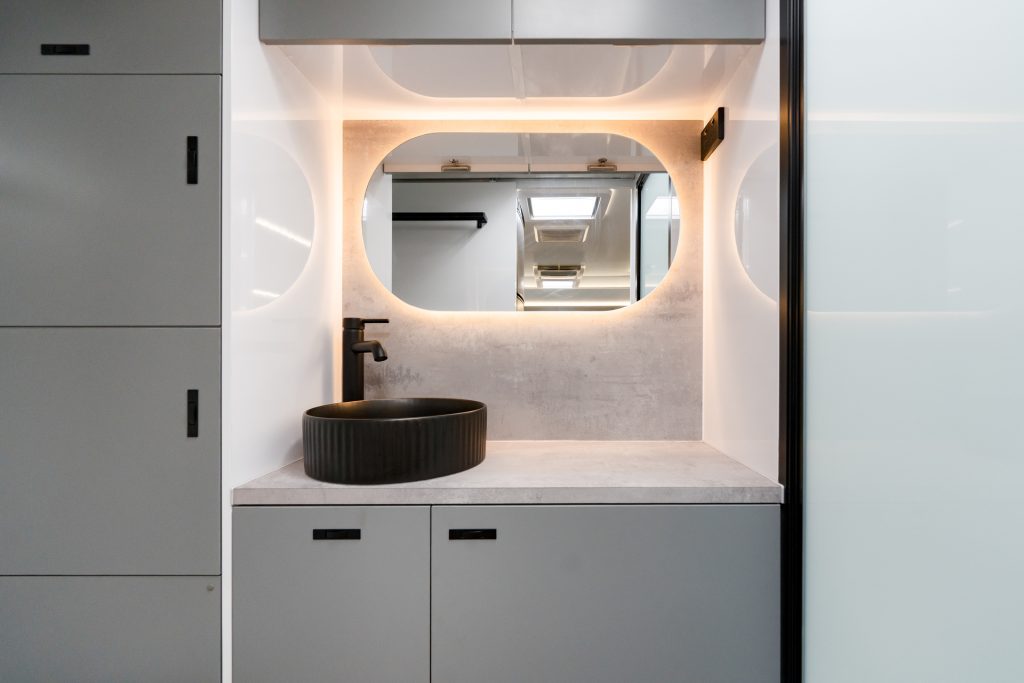

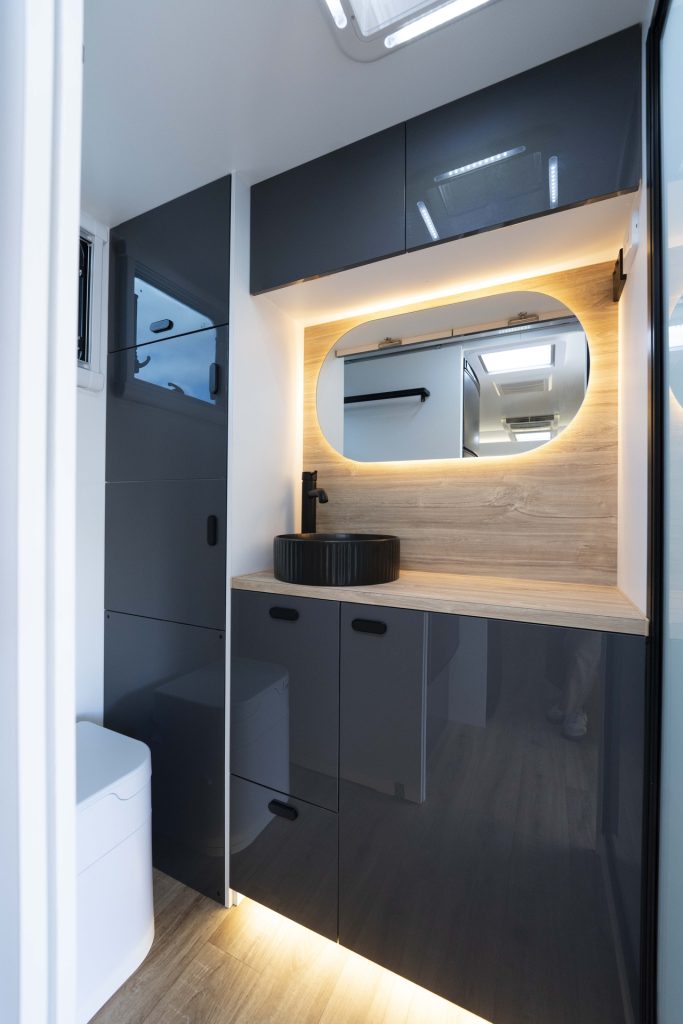

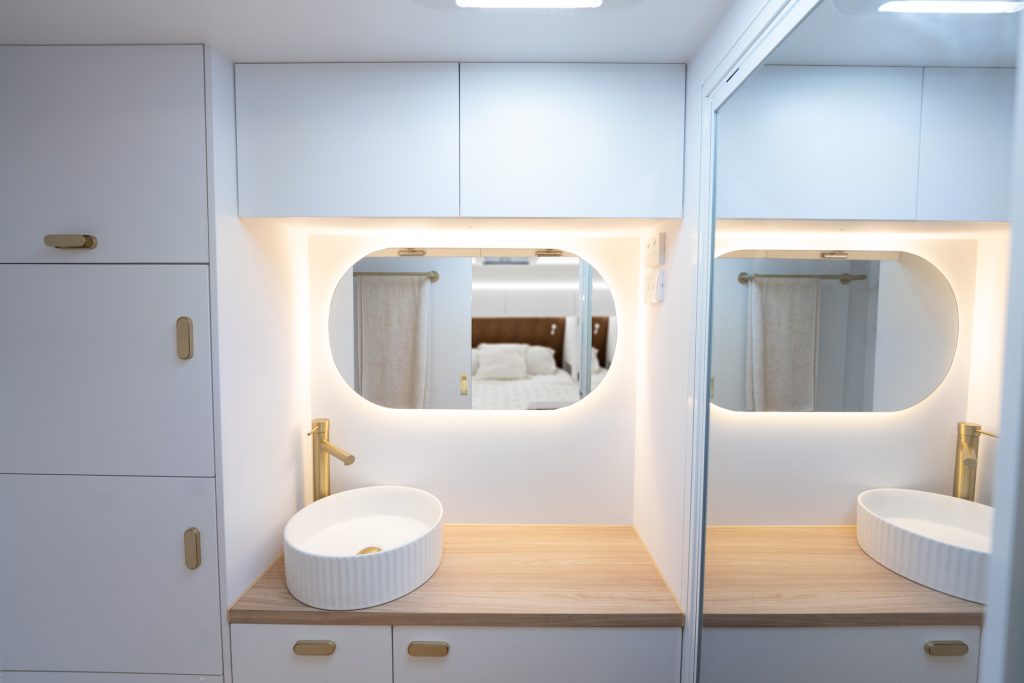

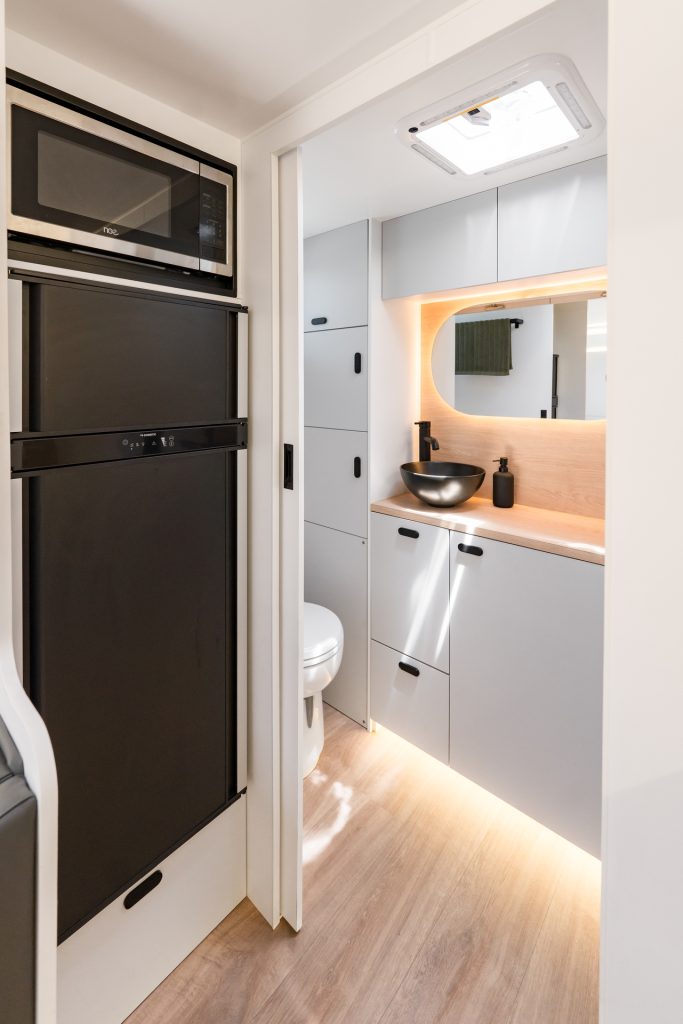

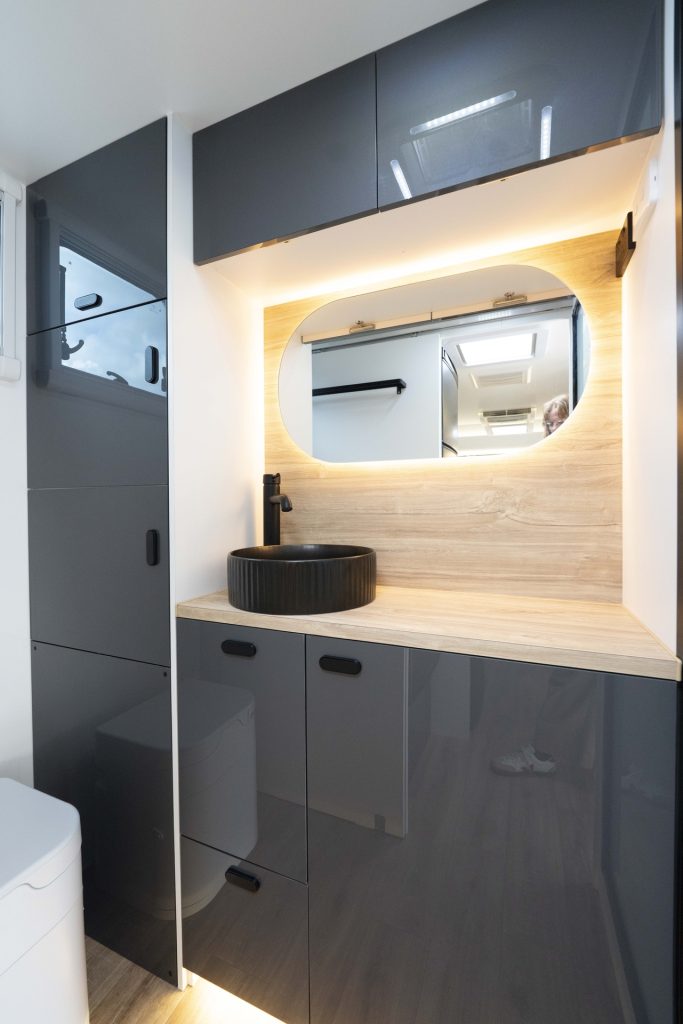

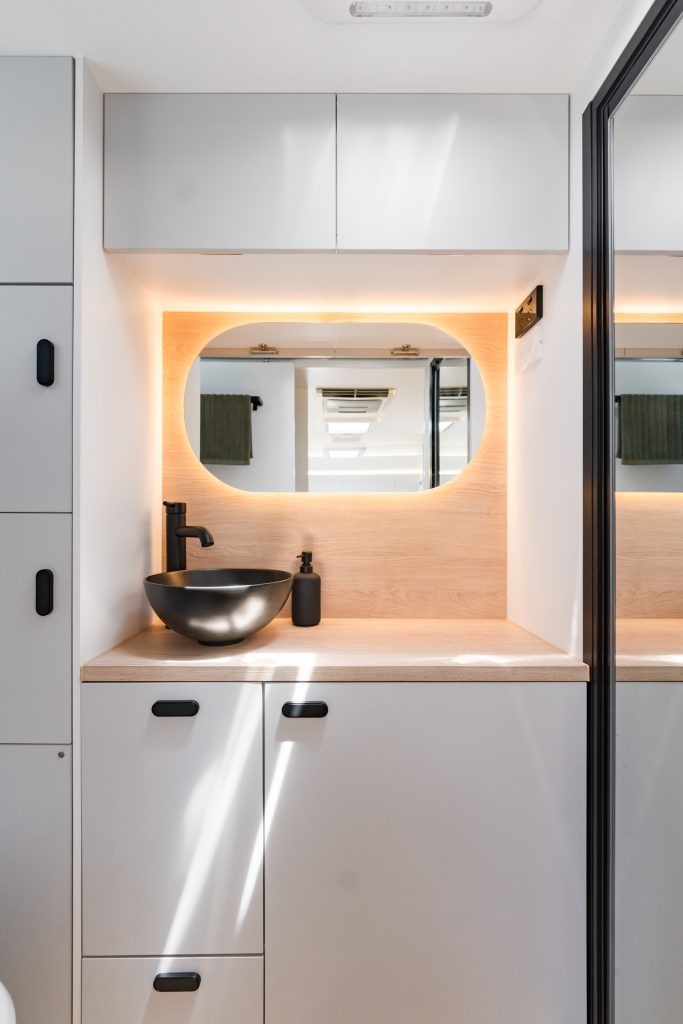

Curved LED Mirror in Bathroom

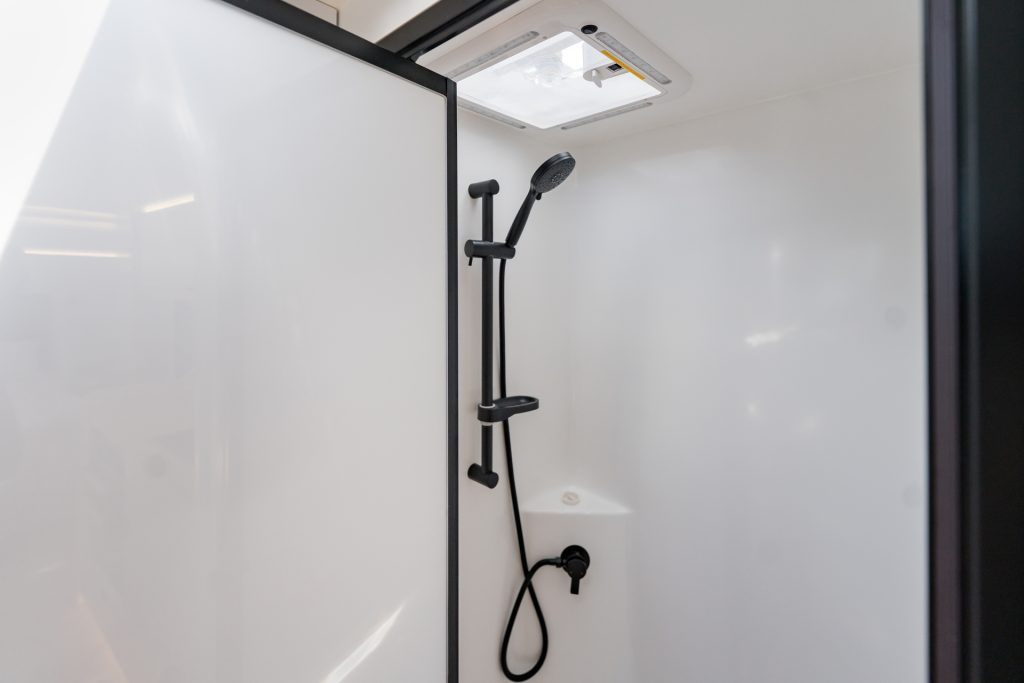

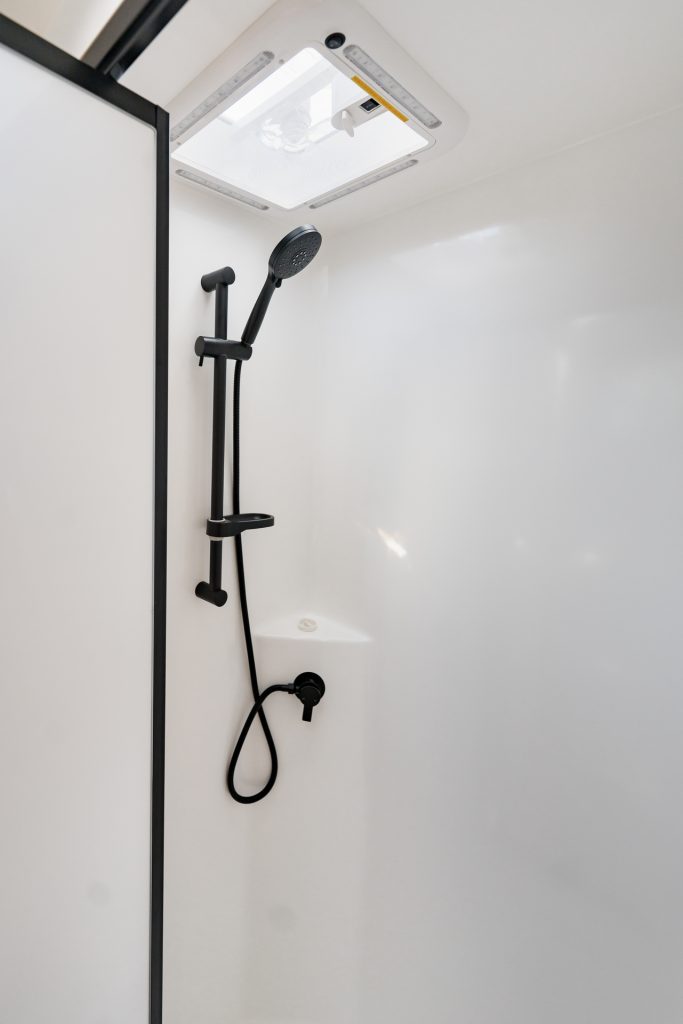

Fibreglass Shower
2 Illuminated Roof Vents
Premium Vinyl Flooring
Timber or Stone Look Laminate Benchtops
Matt Black Towel Rail & Toilet Roll Holder

Electrical

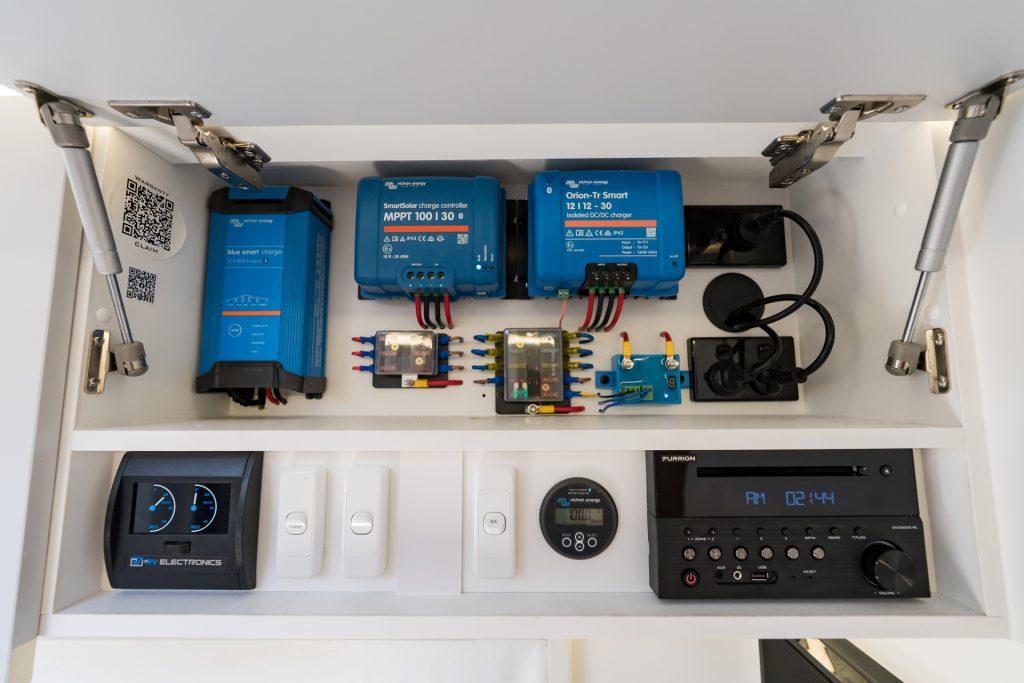

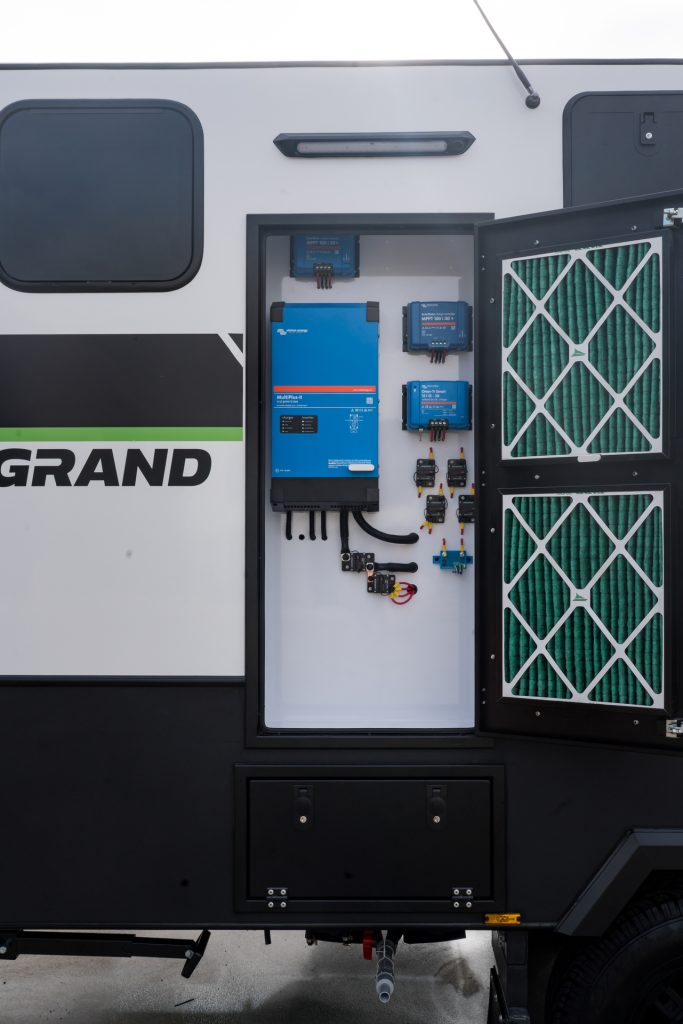

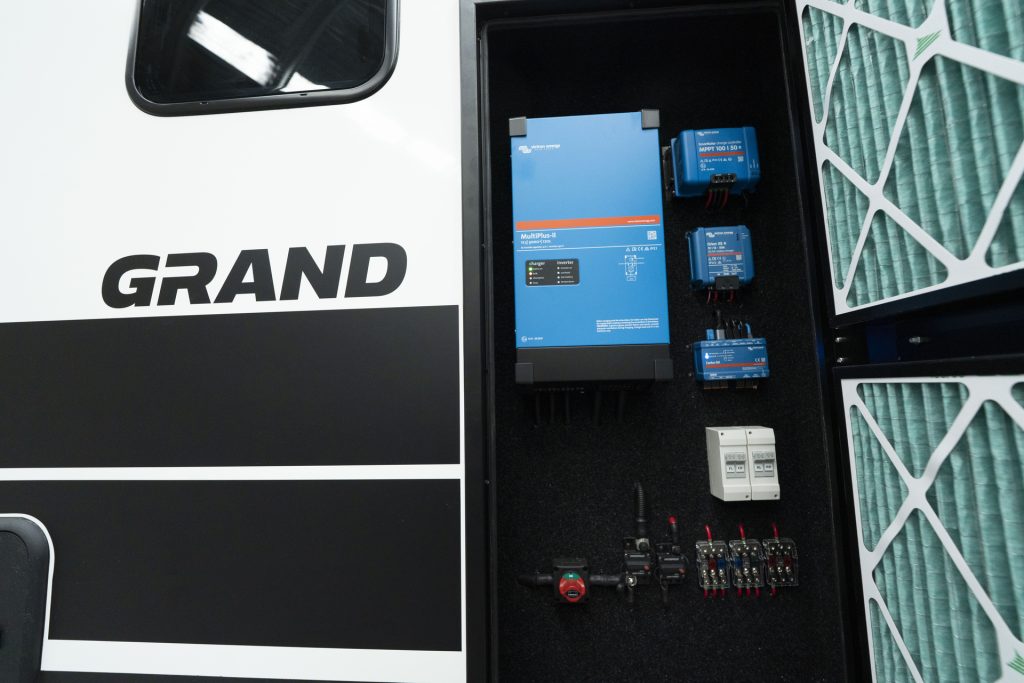

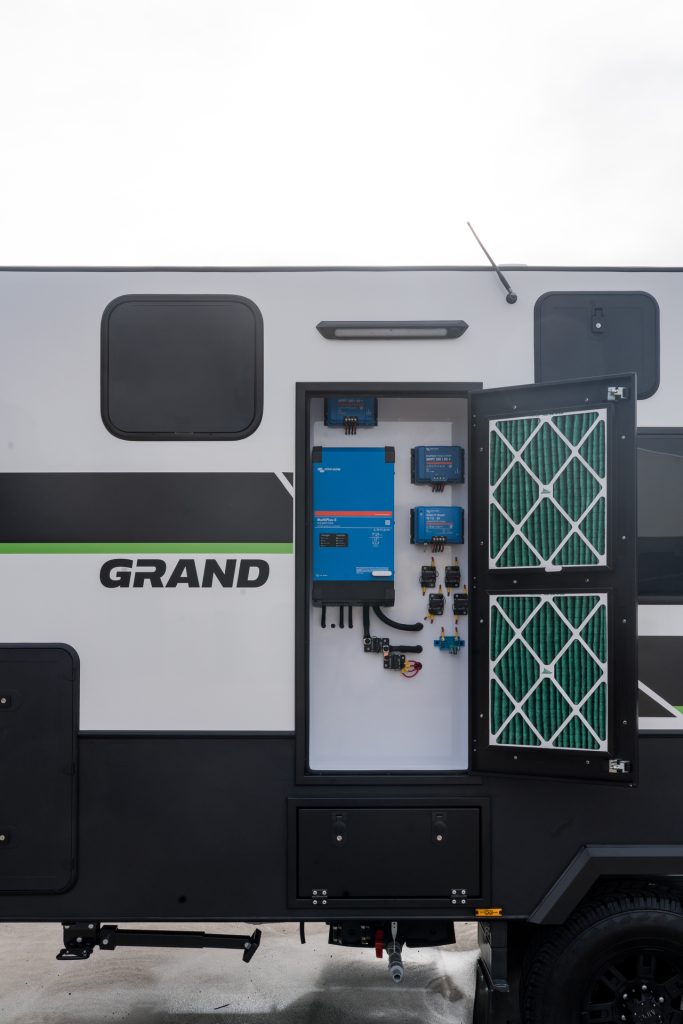

Victron Energy Electrical System
BMV-712 Smart Display
30A Victron Blue Smart AC Charger
30A Victron MPPT Solar Charge Controller
30A Victron Orion-TR Smart DC-DC Charger
3000W Victron Inverter
AL-KO Electronic Stability Control
3 x 200W Solar Panels
2 x 225Ah Lithium Batteries
2 x Fusion Speakers
Milenco Dust Reduction & TV Antenna
12V & 240V powerpoints at lounge table, kitchen, bedroom
LED Strip Lighting
Reverse Camera
Sirocco Fan above Bed
Hatches with Extractor Fan in Shower
Wirelessphone charger (240V & 12V)
2 Awning Lights with Amber Insect Repellant
Starlink Provision
Sphere Wireless Lighting

Plumbing

Water Pump

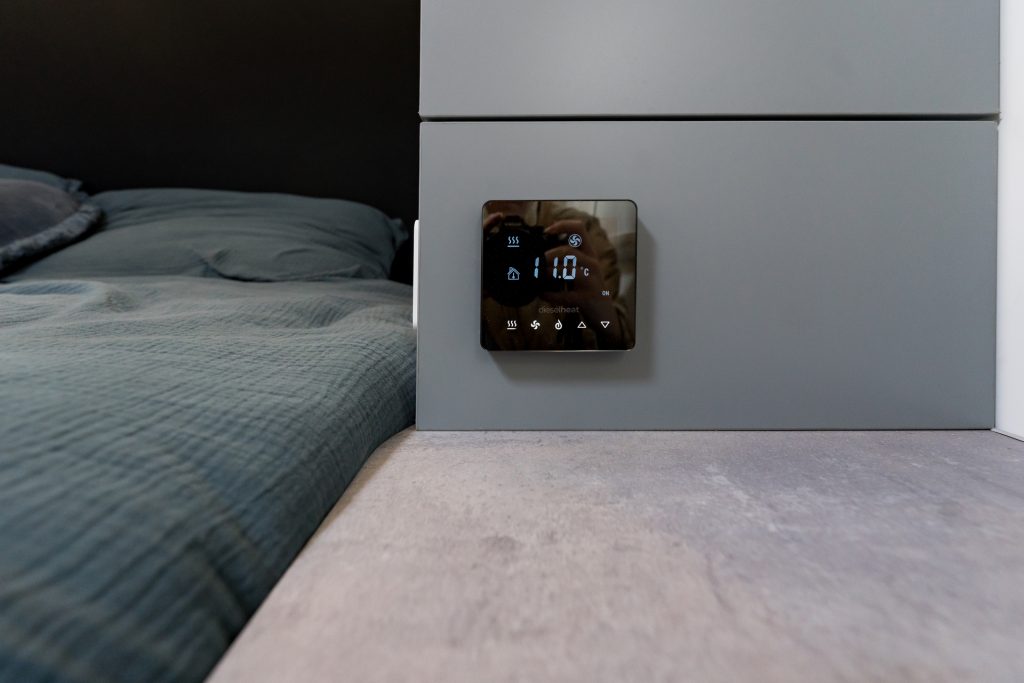

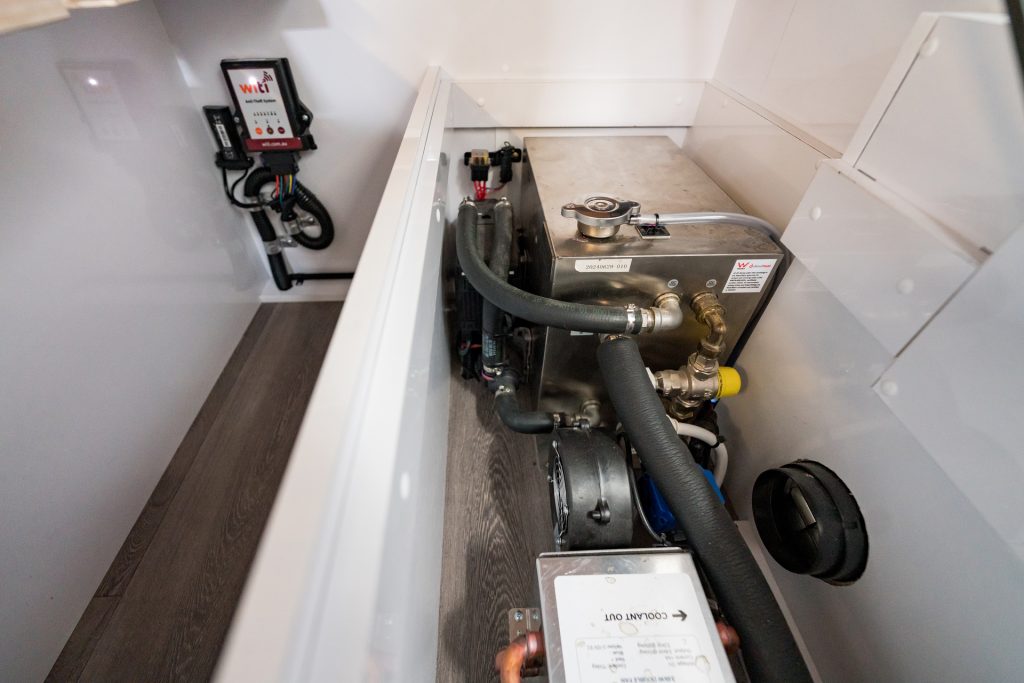

Hydronic Diesel HWS with Heater
2 x 110L Fresh Water Tanks
1 x 110L Grey Water Tank
Water tap at A frame
3 Way Kitchen Tap with Water Filter
Mains Pressure Inlet
Gas Bayonet Connection
2 x 9kg Gas Bottles

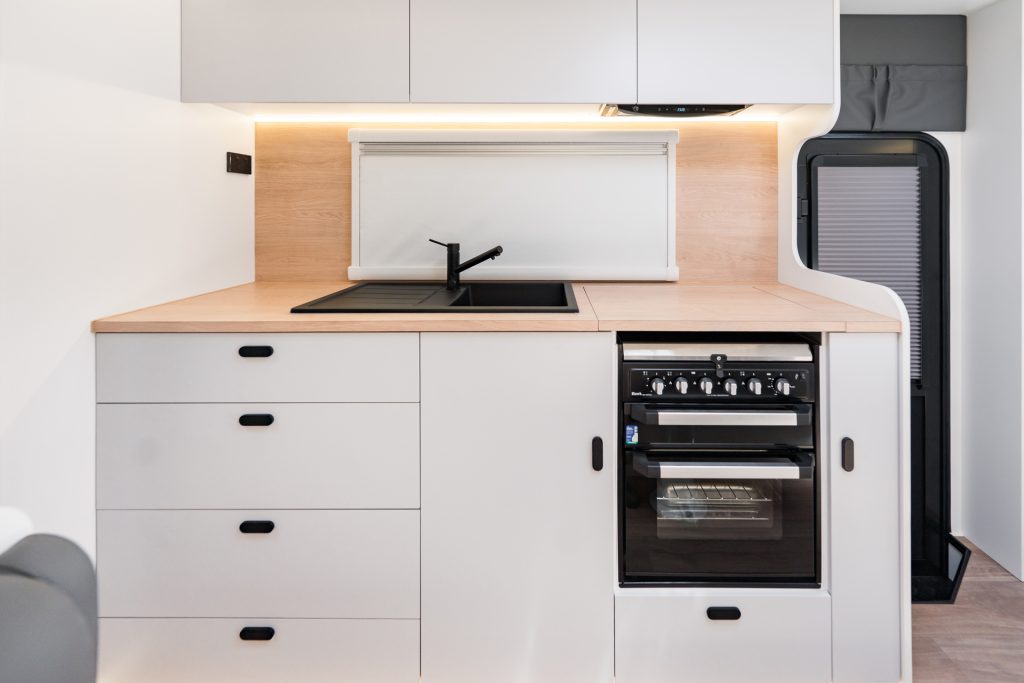

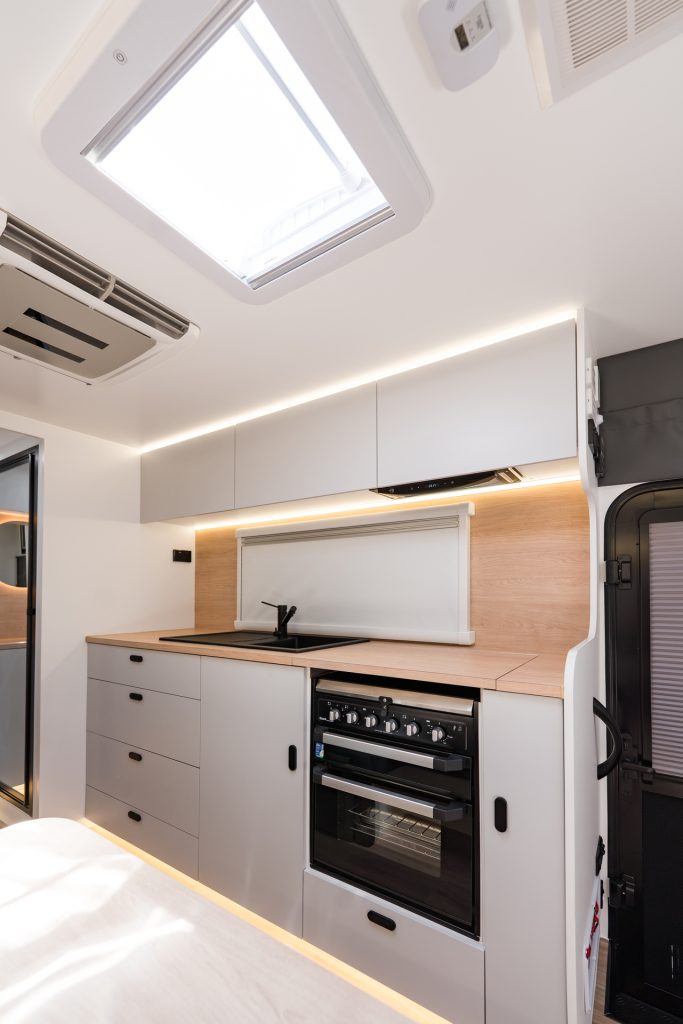

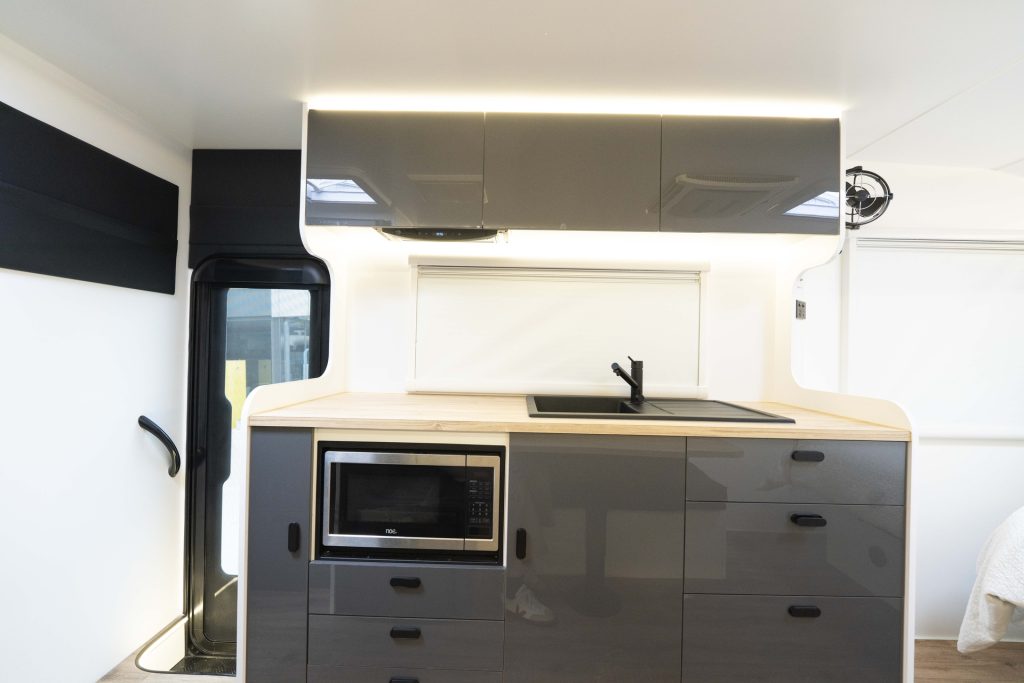

Matte Black Granite Kitchen Sink

Appliances

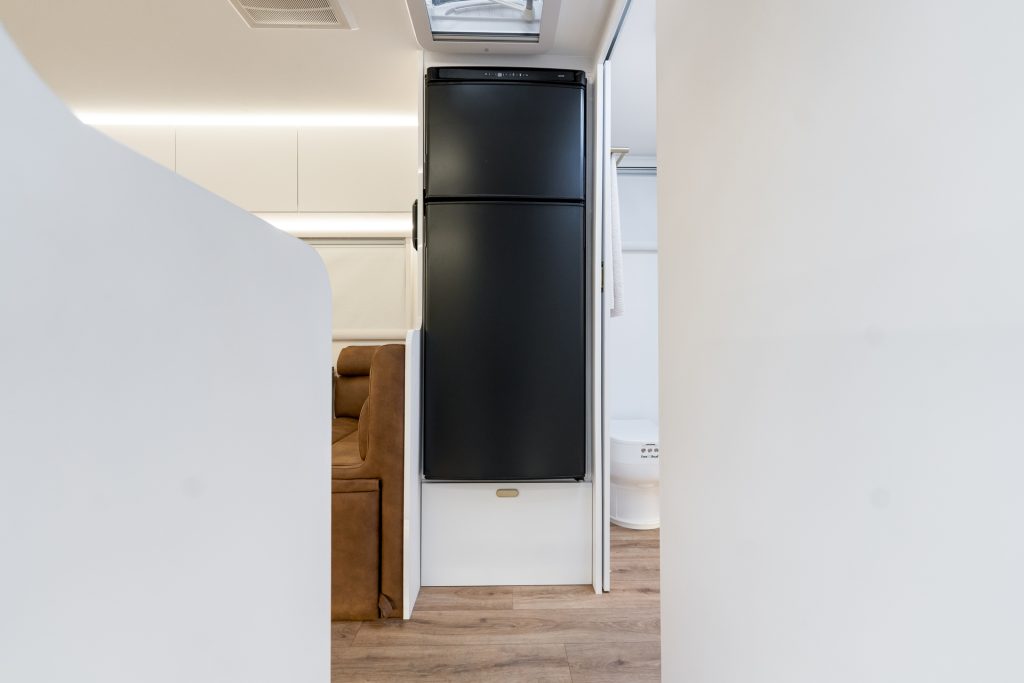

Thetford 200L or Dometic 275L Compressor Fridge & Freezer
myCOOLMAN 3kw Reverse Cycle Air Conditioner (with heating)
Induction Portable Cooktops x 2

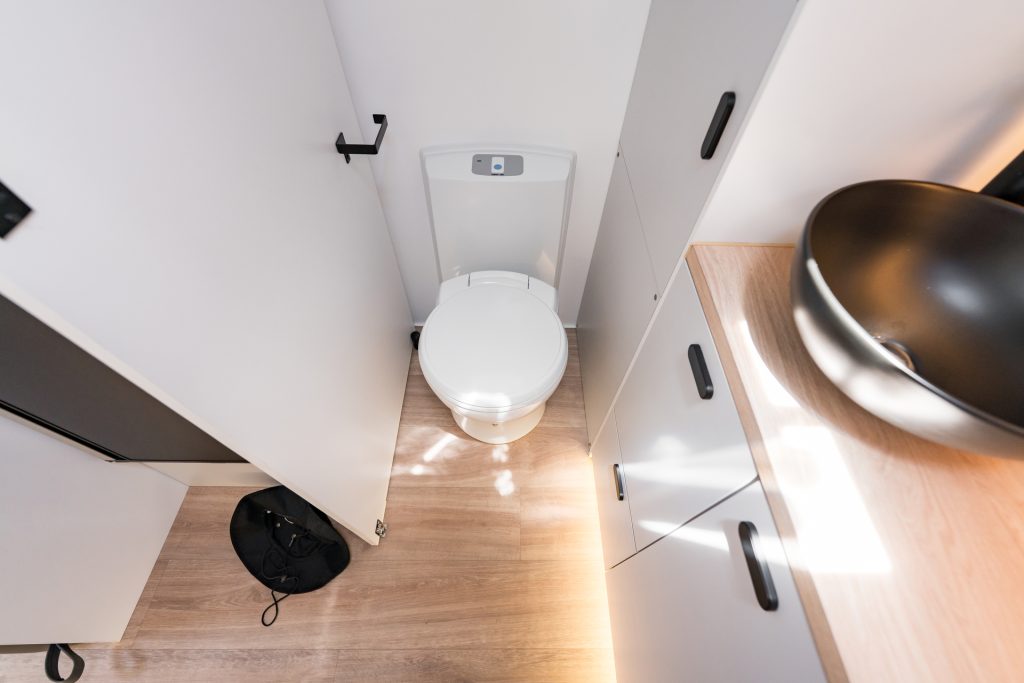

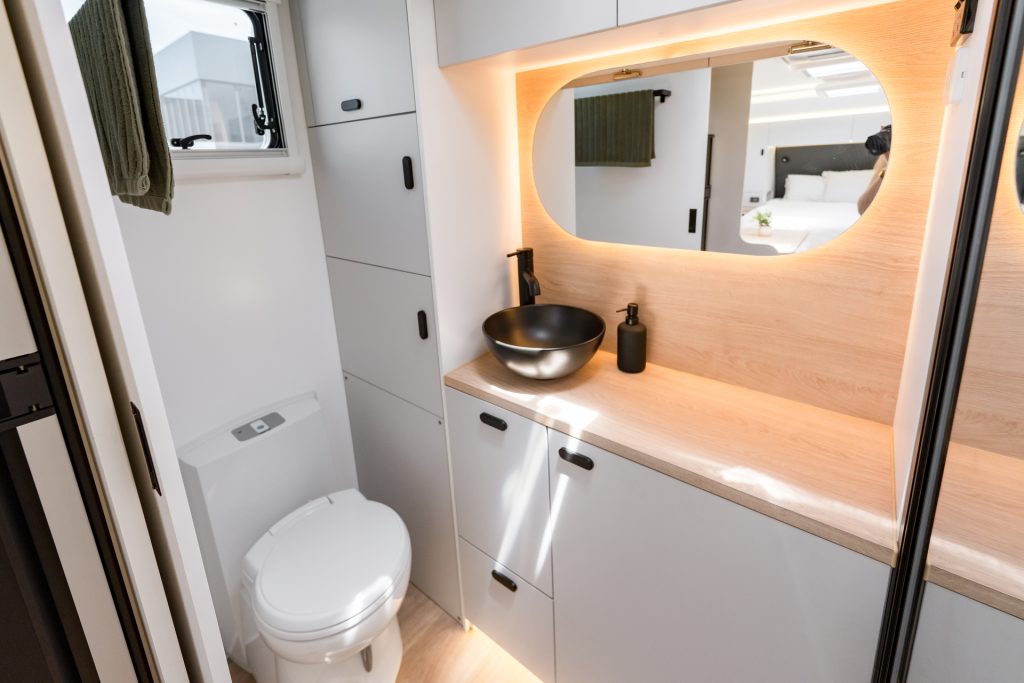

OGO Composting Toilet
Ranger Rangehood with touch display
Sphere 24” LED Smart TV with DVD

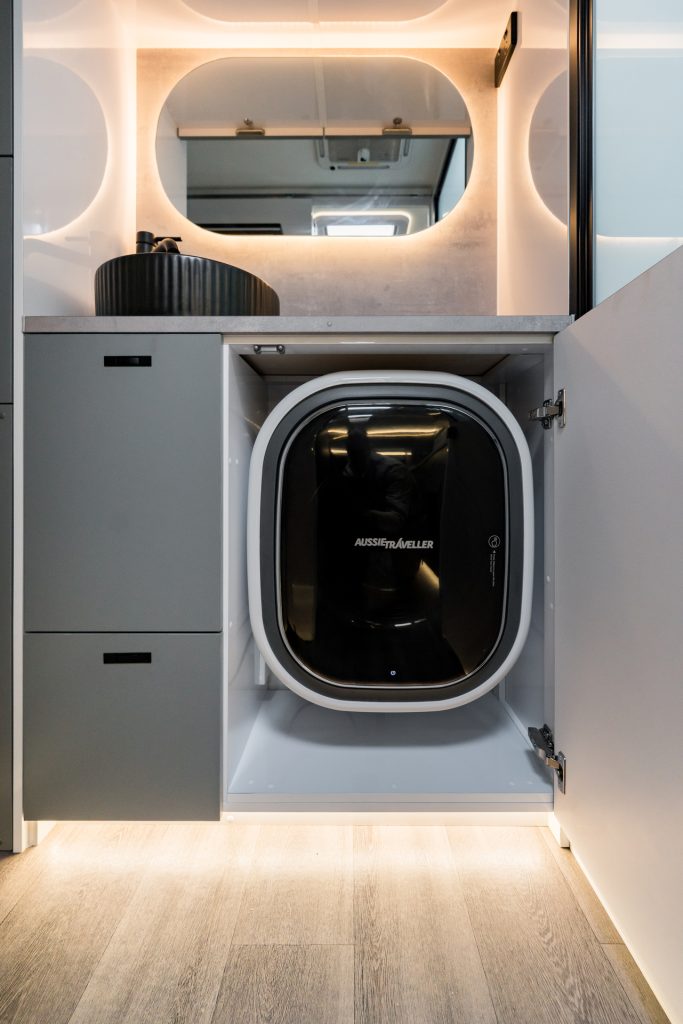

Washing Machine
Microwave 25L (Plateless)
Furrion Entertainment Head Unit with NFC, Bluetooth, AM/FM radio & CD Player

Interested in the Peak

If you’re interested in buying one of our Peak caravans please get in touch for a quote.

Select your caravan size:

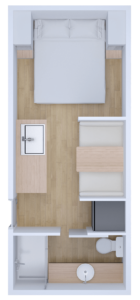

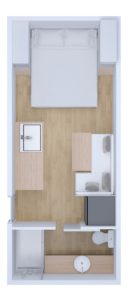

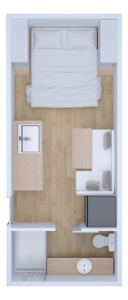

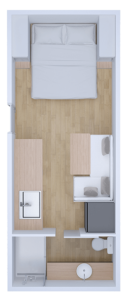

Floorplans

Weights

Tare	2045 kg
Ball Weight	197 kg
ATM	2800 kg
Payload	755 kg

Measurements

External Body Length	4750 mm
External Width	2440 mm
External Height	3100 mm
Total Length	7150 mm

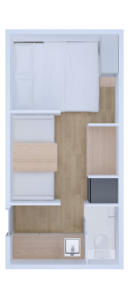

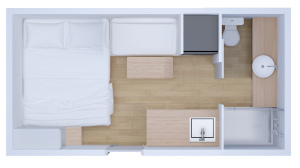

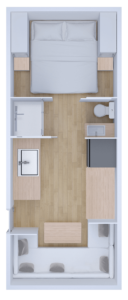

Floorplan for the Grand Caravans Peak 15'8 Straight model

Weights

Tare	2165 kg
Ball Weight	150 kg
ATM	2800 kg
Payload	635 kg

Measurements

External Body Length	5180 mm
External Width	2440 mm
External Height	3100 mm
Total Length	7580 mm

Weights

Tare	2280 kg
Ball Weight	200 kg
ATM	3000 kg
Payload	720 kg

Measurements

External Body Length	5670 mm
External Width	2440 mm
External Height	3100 mm
Total Length	8070 mm

Weights

Tare	2280 kg
Ball Weight	200 kg
ATM	3000 kg
Payload	720 kg

Measurements

External Body Length	5670 mm
External Width	2440 mm
External Height	3100 mm
Total Length	8070 mm

Weights

Tare	2492 kg
Ball Weight	198 kg
ATM	3000 kg
Payload	508 kg

Measurements

External Body Length	5670 mm
External Width	2440 mm
External Height	3100 mm
Total Length	8070 mm

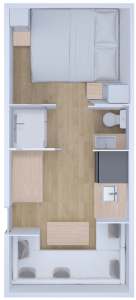

Floorplan for the Grand Caravans Peak 18'6 Rear Club Centre Ensuite model

Weights

Tare	2572 kg
Ball Weight	130-211 kg
ATM	3500 kg
Payload	928 kg

Measurements

External Body Length	5970 mm
External Width	2440 mm
External Height	3100 mm
Total Length	8370 mm

Weights

Tare	2572 kg
Ball Weight	130-211 kg
ATM	3500 kg
Payload	928 kg

Measurements

External Body Length	5970 mm
External Width	2440 mm
External Height	3100 mm
Total Length	8370 mm

Weights

Tare	2572 kg
Ball Weight	130-211 kg
ATM	3500 kg
Payload	928 kg

Measurements

External Body Length	5970 mm
External Width	2440 mm
External Height	3100 mm
Total Length	8370 mm

Weights

Tare	2572 kg
Ball Weight	130-211 kg
ATM	3500 kg
Payload	928 KG kg

Measurements

External Body Length	5970 mm
External Width	2440 mm
External Height	3100 mm
Total Length	8370 mm

Weights

Tare	2619 kg
Ball Weight	200 kg
ATM	3500 kg
Payload	881 kg

Measurements

External Body Length	6710 mm
External Width	2440 mm
External Height	3100 mm
Total Length	9110 mm

Why Grand Caravans

Composite built

Fibreglass composite construction throughout. No timber, no rust, no rot. Built to last a lifetime in Australian conditions.

Family owned

We are a proudly family owned and operated business. When you buy a Grand you deal directly with the people who build it.

Custom built

Every Grand is built to order around your lifestyle. Your floor plan, your finishes, your way of travelling.

Australian Made

Handbuilt in Craigieburn, Victoria using Australian steel and locally sourced materials. Every van, every time.

Premium Aftersales

3 Year structural warranty and 2 year Australia wide general warranty.

Off-grid ready

Built for where the road ends. Solar, lithium, diesel heating and composting systems designed for serious off grid travel.

Want to see how a Grand Caravan is built?

Book a Factory Tour! Come behind the scenes and see firsthand what goes into every van we make.

Colour Schemes

We have worked with an interior designer to curate four signature colour boards for 2026. Four distinctly Australian palettes that pair beautifully with the included chrome and black fittings as standard. Option to upgrade your taps and handle finishes to complement your chosen board.
